Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yling
-
Model Number:
-
Gtmedia V8 UHD
-
Product Name:
-
Gtmedia V8 UHD HD DVB-S2 Complian
-
USB:
-
1*USB2.0 HOST
-
Standard:
-
DVB-S/S2/S2X,DVB+T/T2/ISDB-T/Cable(J83.A/C)/ATSC-C(J83.B);
-
Channels Number:
-
6000+ channels TV and Radio programmable
-
Channel Play Type:
-
Can choose All, Free and Scrambled.
-
Flash Memory:
-
64MB SPI Flash
-
DDR2 Memory:
-
2G bit*2
-
Power Supply:
-
AC 100V ~250V, 50/60Hz
-
Keyword 1:
-
Gtmedia V8 UHD HD DVB-S2 Complian
-
What_sapp::
-
0086 15994788022
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yling
-
Model Number:
-
Gtmedia V8 UHD
-
Product Name:
-
Gtmedia V8 UHD HD DVB-S2 Complian
-
USB:
-
1*USB2.0 HOST
-
Standard:
-
DVB-S/S2/S2X,DVB+T/T2/ISDB-T/Cable(J83.A/C)/ATSC-C(J83.B);
-
Channels Number:
-
6000+ channels TV and Radio programmable
-
Channel Play Type:
-
Can choose All, Free and Scrambled.
-
Flash Memory:
-
64MB SPI Flash
-
DDR2 Memory:
-
2G bit*2
-
Power Supply:
-
AC 100V ~250V, 50/60Hz
-
Keyword 1:
-
Gtmedia V8 UHD HD DVB-S2 Complian
-
What_sapp::
-
0086 15994788022

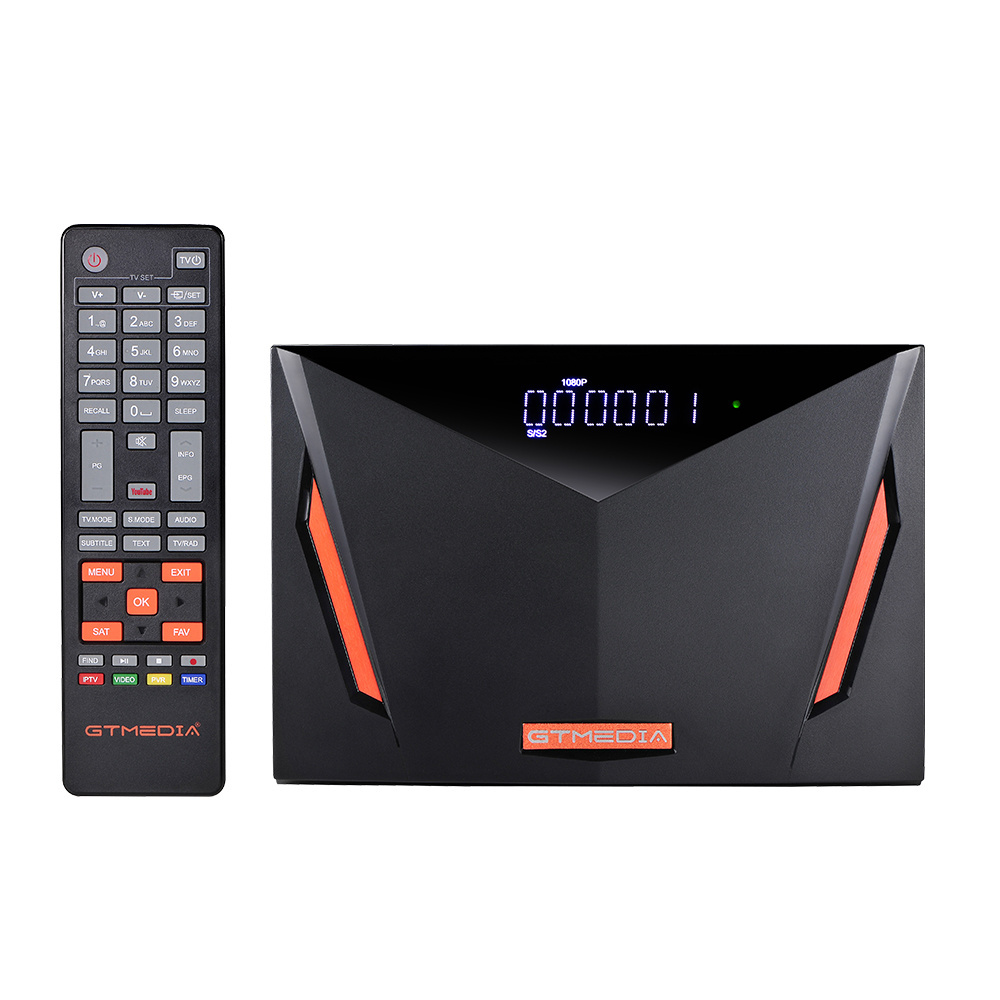

Gtmedia V8 UHD DVB-S2 satellite receiver DVB-S/S2/S2X DVB+T/T2/ISDB-T/Cable(J83.A/C)/ATSC-C(J83.B) Better V8 pro2 V8 NOVA
my whats_app: +8615994788022
my skype: susie_szyling
Product Description
1.DVB-S/S2/S2X,DVB+T/T2/ISDB-T/Cable(J83.A/C)/ATSC-C(J83.B);
2.Support 4K ultra-high definition display and decoder, Dual-core MIPS74Kf processors;
3.Support Multi-format ultra-high definition video decoder;
4.Support Full PowerVu, DRE &Biss key;
5. Support DLNA, SAT To IP;
6.Support Built-in 2.4G WIFI module, Ethernet.
7.Support Youtube,Web TV, Xtream ;
8.Support Regional weather.
9.Support Network Sharing Cccam,Newcam,Mgcam.
10.Technical support website : www.freesat.cn
|
Main Chip Sets
|
Multi-core CPU architecture
|
MIPS 74Kf core operating frequency up to 1GHz, 16KB I-cache,
16KB D-cache and 1 Register File
|
|||||
|
Flash Memory
|
64MB SPI Flash
|
||||||
|
DDR3 Memory
|
2G bit*2
|
||||||
|
TS Demux
|
Demultiplexer
|
ISO/IEC 13818-1
|
|||||
|
Input Bit Rate
|
2 parallel TS input ports @864Mbps in parallel mode
|
||||||
|
Video Decode
|
Video Decode
|
MPEG-2 ISO/IEC 13818-2 MP@ML, ISO/IEC 14496-2 (MPEG4)
compliant, Supports SP@L3 to ASP@L5,Multi-format ultra-high
definition video decoder (MPEG1/2/4, H.264/265, VC-1,
AVS/AVS+, VP8 and VP9)
|
|||||
|
Video Resolution
|
By Source,
480i,480P,576i,576P,720P_50,720P_60,1080i_25,1080i_30,
1080P_25,1080P_24,1080P_30,1080P_50,1080P_60,4K2K_25,
4K2K_30,4K2K_50,4K2K_60;
|
||||||
|
Video DAC
|
1 x 10bit DAC for CVBS output
Composite NTSC M/N/J, NTSC-4.43 Composite PAL M/N/B/D/G/H/I, PAL-60 |
||||||
|
Aspect Mode
|
Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
|
||||||
|
HD Video Out
|
Auto, RGB-Normal, RGB-Expand, YCbCr 4:4:4, YCbCr 4:2:2
|
||||||
|
HD deep color
|
Auto, Normal, None, HD deepcolor 24, HD deepcolor 36
|
||||||
|
Audio Decode
|
Audio Decode
|
MPEG-1/2 Layer I/II, AAC/HEAAC v1/v2, DB Digital (AC3),DB Digital
Plus (EAC3),RealAudio,WMA/WMA Pro,MP3,OGG,APE,FLAC,ALAC
|
|||||
|
Sound Mode
|
LEFT/RIGHT/STEREO/MONO
|
||||||
|
Audio DAC
|
Supports 2 channels, 16-bit resolution and 8k-192k sample rate,
|
||||||
|
Audio Out
|
LPCM Out, BS Out
|
||||||
|
Hardware specifications
|
Panel display
|
8-digit white LED display,With multiple function indicators
|
|||||
|
LED Indicator
|
Power ON :Green; Standby :Red
|
||||||
|
Button
|
NOT
|
||||||
|
Wifi
|
Built in 2.4G WiFi Support IEEE 802.1.1b/g/n
|
||||||
|
IR
|
Exit IR for 38KHz,Infra Remote control
|
||||||
|
Rear Panel
|
ANT IN ( EC-type IEC169-2 Female)
|
||||||
|
LNB IN (Frequency Range950MHz to 2150MHz)
|
|||||||
|
HD OUT(HD2.0, up to 4kx2kp50/60 output )
|
|||||||
|
SCART OUT
|
|||||||
|
1*Coaxial (RCA:black)
|
|||||||
|
1*USB2.0 HOST
|
|||||||
|
1*RJ45 (For 10M/100M MAC)
|
|||||||
|
1*CA card solt
|
|||||||
|
DC IN (DC12V/1.5A)
|
|||||||
|
DVB-S/S2 specificati-ons
|
System standard
|
ETS 302 307
|
|||||
|
Frequency Range
|
950~2150MHz for DVB-S/S2/S2X baseband demodulator
|
||||||
|
LNB Power and Polarization
|
DiSEqC1.0/1.1/1.2/USALS Motor fully support,
Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz
(0.6V±0.2V)tone,Overload Protection
|
||||||
|
Input Level Range
|
-80dBm ~ -20dBm (average power)
|
||||||
|
Symbol Rates
|
DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
||||||
|
Forward error correction rate
|
1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
|
||||||
|
Carrier frequency acquisition range
|
±5MHz for symbol rates above 3 Msps and ±3MHz for the
remaining symbol rates
|
||||||
|
Symbol Rates
|
Symbol rate range:
QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M |
||||||
|
Roll-off factors
|
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
|
||||||
|
Code Rates
|
1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates |
||||||
|
Features
|
Supporting CCM/VCM/ACM
Supporting PLHEADER Scrambling (AMC) Integrating LDPC and BCH decoders |
||||||
|
ANT. Connector
|
Connector:IEC TYPE F Input Impedance:75 Ω
|
||||||
|
DVB-T/T2 specificati-ons
|
System standard
|
ETSIEN 302 755
|
|||||
|
Frequency Range
|
VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2
|
||||||
|
Demodulation
|
COFDM,16QAM,64QAM,256QAM
|
||||||
|
Bandwidth model
|
6MHZ,7MHZ and 8MHZ
|
||||||
|
Country
|
Italy, Poland, Russia, Spanish, Sweden, United Kingdom, Germany,
Greek, Slovenia, Argentina, Australia, Denmark, Finland, France,
England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia. |
||||||
|
FEC Code Rate
|
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
|
||||||
|
FFT
|
2K and 8K
|
||||||
|
Guard interval
|
1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
|
||||||
|
Input Signal level:
|
Min -80dbm max -20dbm (64QAM,8K 1/8,7/8)
|
||||||
|
Antenna Power
|
5V DC @ 150mA MAX
|
||||||
|
ANT. Connector
|
IEC 169-2, female. Input Impedance:75 Ω
|
||||||
|
ISDB-T specificati-ons
|
System standard
|
ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264
HD/SD Video , DiVX
|
|||||
|
Frequency Range
|
VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz
|
||||||
|
Country
|
Brazil and Japan
|
||||||
|
FFT
|
2K/ 8K/32K
|
||||||
|
Demodulation
|
QPSK / 16QAM / 64QAM/QPSK or DQPSK
|
||||||
|
FEC Code Rate
|
1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
|
||||||
|
Guard interval
|
1/4,1/8,1/16,1/32
|
||||||
|
DVB-Cable specificati-ons
|
Frequency Range
|
50--858MHz For DVB-Cable (J.83A/B/C)
|
|||||
|
Demodulation
|
16QAM,32QAM,64QAM,128QAM,256QAM
|
||||||
|
FEC Code Rate
|
1/2 , 2/3 , 3/4 , 5/6 , 6/7 or 7/8
|
||||||
|
Input Signal level
|
Min -80dbm max -20dbm
|
||||||
|
Country (ATSC-C)
|
U.S.ATSC Cable STD/U.S.ATSC Cable IRC/U.S.ATSC Cable HRC
for ATSC-C
|
||||||
|
Sortware Features
|
Standard
|
Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable
from C/Ku band satellite), DVB-T/T2/Cable(J83.A/B/C)/ISDBT,
MPEG-2/4 H.265 Standard
|
|||||
|
Channel Search
|
Supports Automatic network search for newly added transponders,
and Supports NIT Search for DVB-T/Cable.
|
||||||
|
Channels Number
|
6000+ channels TV and Radio programmable
|
||||||
|
Channel Play Type
|
Can choose All, Free and Scrambled.
|
||||||
|
Channel
|
You can switch to any other channel while recording the channel;
Various channel editing unction(favorite,move,lock,skip,delete,
rename,find,sort);
|
||||||
|
Favorites
|
32 different favorite groups selection
|
||||||
|
OSD Language
|
English,French,German,Italian,Spanish,Portuguese,Russian,Turkish
Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,
Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian.
|
||||||
|
OSD Color
|
32-bits OSD with anti-flickering,
|
||||||
|
OSD Setting
|
Support OSD Timeout and Transparency, Subtitle Display, Channel
list displays pages 1-3.Support menu in the small window to play
programs
|
||||||
|
Other Setting
|
Sets up multiple habitual operation Settings
|
||||||
|
Parental Ctrl
|
Parental control for channels
|
||||||
|
Easy Menu
|
Plug and Play installation, with an easy to use Menu System
|
||||||
|
EPG
|
Fully support to 7 days Electronic Program Guide(EPG)
|
||||||
|
Subtitle
|
support DVB EN300743 and EBU
|
||||||
|
Teletext
|
support DVB ETS300472 by VBI
|
||||||
|
Auto Standby
|
Can open STB to enter play auto standby.
|
||||||
|
SoftUpgrade
|
Software upgrades through USB port, or FTP upgrade.
|
||||||
|
Time Set
|
Time set by GMT offset automatic and manual,Summer Time
support
|
||||||
|
Timer
|
8 event timers,off/Once/Daily Mode
|
||||||
|
USB Decode
|
USB 2.0
|
Support FAT/FAT32/NTFS big capacity hard disk
|
|||||
|
PVR Option
|
USB 2.0 for PVR,TIMESHIFT,media files playback
|
||||||
|
Media Codec
|
TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
|
||||||
|
Audio Codec
|
WMA,MP3
|
||||||
|
Photo Codec
|
JPG, BMP, PNG, GIF
|
||||||
|
Physicals
|
Power Supply
|
AC 100V ~250V, 50/60Hz
|
|||||
|
Power Consumption
|
12W in operation
<1 W Standby Power Mode |
||||||
|
Temperature
|
Operation 0~+45℃; Storage -10~+60℃
|
||||||
|
Humidity
|
20~90%, non-condensed
|
||||||
my whats_app: +8615994788022
my skype: susie_szyling
Packaging & Shipping
Our Services
NO.1---Trade Assurance
NO.2---Guarantee Superior Quality,2 Years warranty
NO.3---Promise Most Competitive Price
NO.4---Ensure Adequate Supply
NO.5---On time Delivery
NO.6---5 Times Testing Before Shipment
NO.7---Keep Tracking for Customers
NO.8---TOP After-Sale Service
NO.9---Regularly Notification About New Products
NO.10---OEM Supported
OEM:
1. Logo printing on housing (silk screening, gold blocking or laser carving)
2. Customized package box
3. Software Customization: Boot image, Boot animation, Launcher, UI, APP, Function… and so on
ODM:
1. PCBA design
2. Housing design: ID(Industrial Design),MD(Mechanic Design),Produce molding
3. Software Customization
