Quick Details
-
Voltage:
-
220/380V,50/60Hz, Customized
-
Power:
-
450 Customized
-
Dimension(L*W*H):
-
1380*1200*2000mm
-
Weight (KG):
-
500
-
Evaporation Capacity(kg/h):
-
Customized
-
Product name:
-
Hot Air Circulation Dryer Oven
-
Dryig process:
-
Drying Tray Batch Drying
-
Usage:
-
Drying Wet Raw Material
-
Temperature range:
-
Adjustable
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CONOVAL
-
Voltage:
-
220/380V,50/60Hz, Customized
-
Power:
-
450 Customized
-
Dimension(L*W*H):
-
1380*1200*2000mm
-
Weight (KG):
-
500
-
Evaporation Capacity(kg/h):
-
Customized
-
Product name:
-
Hot Air Circulation Dryer Oven
-
Dryig process:
-
Drying Tray Batch Drying
-
Usage:
-
Drying Wet Raw Material
-
Temperature range:
-
Adjustable
Product Description

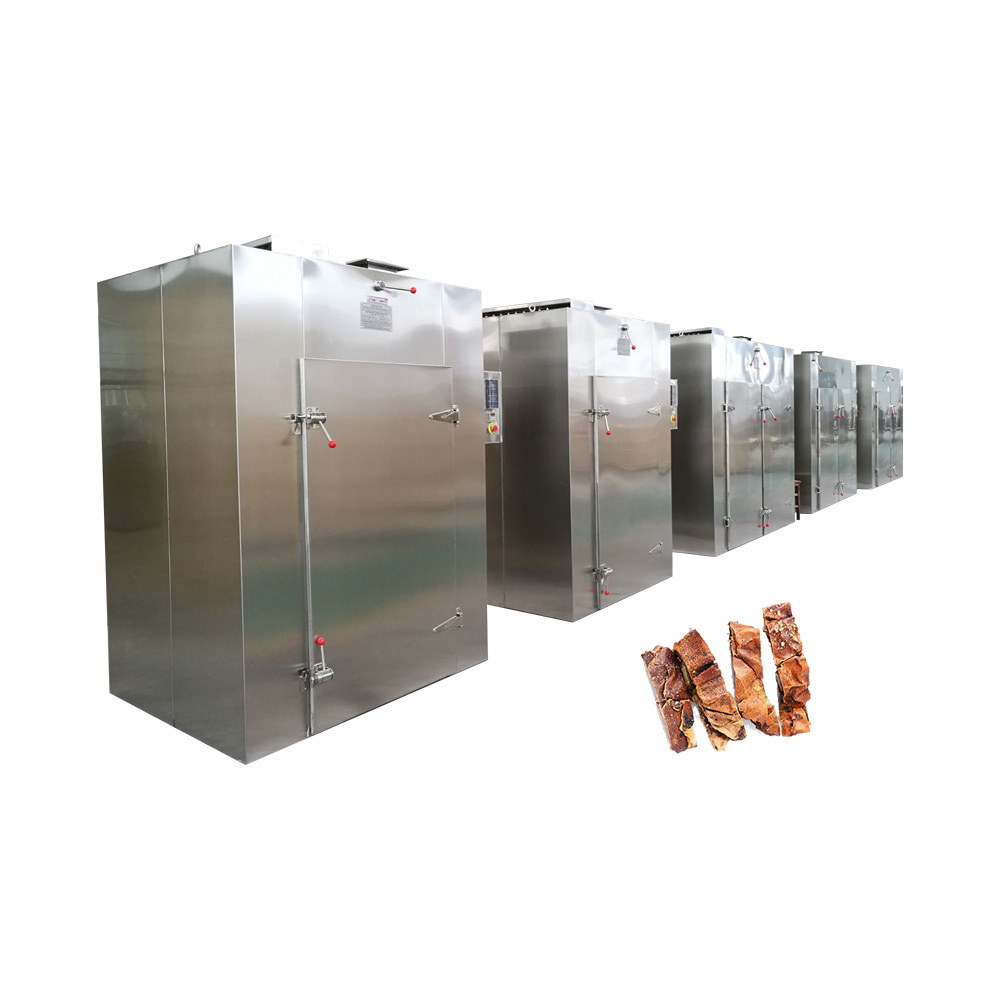

Hot Air circulation tray drying oven
CT-C hot air circulating oven is equipped with axial flow fan and automatic constant temperature control system. The computer control system is also available. The thermal efficiency of our hot air circulation tray dryer is up to 70%. The biggest characteristic of this drying equipment is that part of the hot air circulates inside the oven, and the whole circulating process is closed, thus enhancing heat transfer and energy saving.
Features:
1. This hot air circulation tray dryer has wide range of application, as general drying equipment can dry all kinds of materials.
2. Heat source can use steam, conduction oil, electricity, hot water and far infrared.
3. It has wide range of temperature adaptation, the normal temperature can be heated to 140ºC by steam and 350ºC by electric heating.
4. CT-C hot air circulation tray dryer has the advantages of small noise, stable movement, automatic temperature control, easy installation and maintenance.
5. The dimension of the standard drying tray is 460×640×45 mm.
6. Drying trolley can be manufactured with mobile type, easy to move out for cleaning and maintenance.
2. Heat source can use steam, conduction oil, electricity, hot water and far infrared.
3. It has wide range of temperature adaptation, the normal temperature can be heated to 140ºC by steam and 350ºC by electric heating.
4. CT-C hot air circulation tray dryer has the advantages of small noise, stable movement, automatic temperature control, easy installation and maintenance.
5. The dimension of the standard drying tray is 460×640×45 mm.
6. Drying trolley can be manufactured with mobile type, easy to move out for cleaning and maintenance.
Application
CT-C hot air circulating oven is mainly used for heat curing, drying and dehydrating materials and products in food,
chemical, feed, light industry, heavy industry and other industries. Typical materials dried by our drying equipment are dehydrated vegetables, fruits, Chinese herbal pieces, powder, particles, dissolved pigments, sausage, plastic resin, electrical equipment and baking finish.
chemical, feed, light industry, heavy industry and other industries. Typical materials dried by our drying equipment are dehydrated vegetables, fruits, Chinese herbal pieces, powder, particles, dissolved pigments, sausage, plastic resin, electrical equipment and baking finish.
Details Images
Specification
|
Model
|
Drying amount each time(kg)
|
Equipped power(kw)
|
Consumption of steam (kg/h)
|
Area of adiation (m²)
|
Amount of air (m³/h)
|
Amount of drying tray
|
W*D*H(mm)
|
Drying trolly
|
||||||||
|
CT-C-0
|
60
|
0.45
|
10
|
10
|
3450
|
24
|
1480*1100*1750
|
1
|
||||||||
|
CT-C-I
|
120
|
0.45
|
18
|
20
|
3450
|
48
|
2300*1200*2000
|
2
|
||||||||
|
CT-C-II
|
240
|
0.9
|
36
|
40
|
6900
|
96
|
2300*2200*2000
|
4
|
||||||||
|
CT-C-III
|
360
|
1.35
|
54
|
80
|
10350
|
144
|
2300*3200*2000
|
6
|
||||||||
|
CT-C-IV
|
480
|
1.8
|
72
|
100
|
13800
|
192
|
4460*2200*2290
|
8
|
||||||||
|
High effect and high temperature far infrared sterilization oven.
The power will be equipped in accordance with the requirements of temperature. |
|
|
|
|
|
|
|
|
||||||||
Notes:If any change of data, we will not notify further
