Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Liquid Image
-
Gross Power:
-
12KW
-
Dimensions(L*W*H):
-
300CM X W: 120CM X H: 100CM
-
Weight:
-
500 KG
-
Material:
-
100% stainless material
-
Machine overall diamensions:
-
300CM X W: 120CM X H: 100CM
-
Machineprocessing tank diamensions:
-
260CM X W: 110M X H: 85CM
-
Certification 1:
-
CE cetification
-
Certification 2:
-
Machine Patent certification
-
Customer design:
-
Acceptable
-
Shipping:
-
We ship machine by sea to your port
-
Welding:
-
good
-
Machine weight:
-
450kg
-
Machine weight after package:
-
500kg
Quick Details
-
Condition:
-
New
-
Plate Type:
-
GRAVURE
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Liquid Image
-
Gross Power:
-
12KW
-
Dimensions(L*W*H):
-
300CM X W: 120CM X H: 100CM
-
Weight:
-
500 KG
-
Material:
-
100% stainless material
-
Machine overall diamensions:
-
300CM X W: 120CM X H: 100CM
-
Machineprocessing tank diamensions:
-
260CM X W: 110M X H: 85CM
-
Certification 1:
-
CE cetification
-
Certification 2:
-
Machine Patent certification
-
Customer design:
-
Acceptable
-
Shipping:
-
We ship machine by sea to your port
-
Welding:
-
good
-
Machine weight:
-
450kg
-
Machine weight after package:
-
500kg

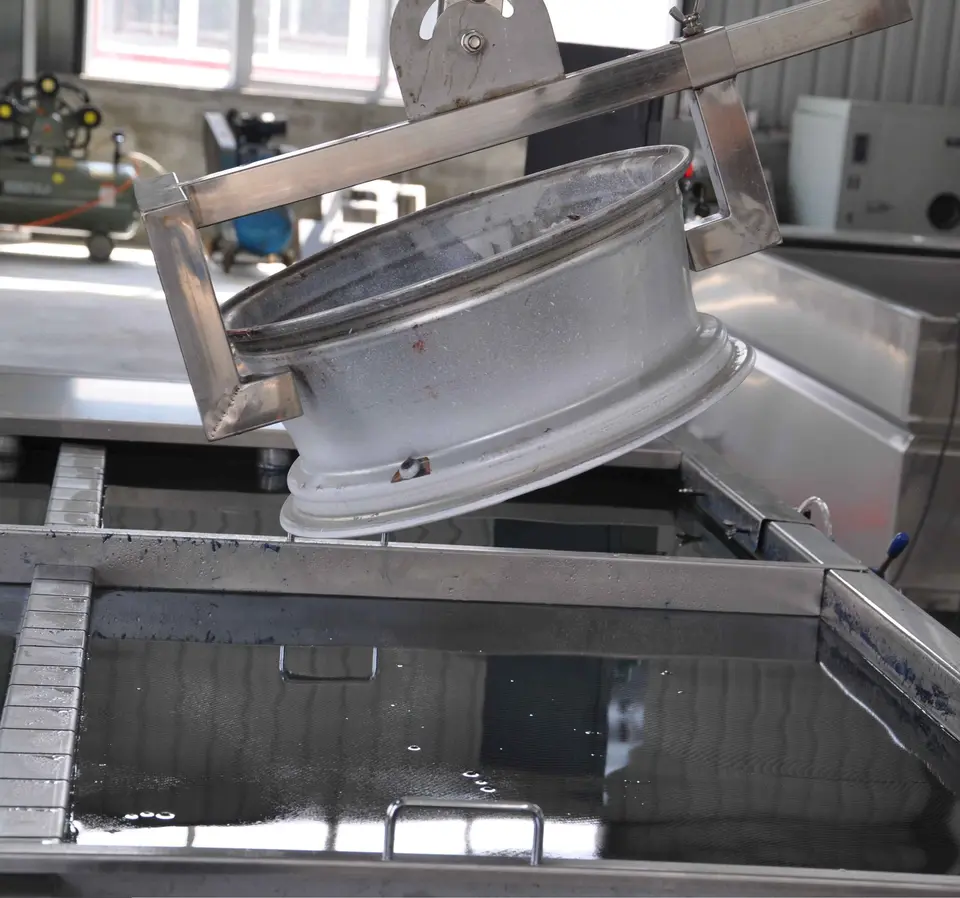

LYH-WTPM052-2 CE certification hydrographic machine/water transfer printing tank with dipping arm
Item Number: LYH-WPTM052-2
Brand: Liquid Image
Specification: (We have different diamensions dipping tanks, you can choose the suitable one accoding to your working items. )
Detaild about tank:
|
Machine Size |
Overall Dimensions |
L: 300CM X W: 120CM X H: 100CM L: 118.1 Inch X W: 47.2 Inch X H: 39.37 Inch |
|
Processing tank dimensions
|
L: 260CM X W: 100CM X H: 85CM L: 102.3 Inch X W: 39.3 Inch X H: 33.4 Inch |
|
|
Machine Material |
Stainless Steel |
Thickness =2.5mm+-0.2mm |
|
Machine Main Components |
Heating Elements |
3 Sets, 220V, Single Phase, 50 HZ, 12000W |
|
Water Recirculation System |
Stainless Pump, 220V, Single Phase, 50 HZ, 750W |
|
|
Control Panel |
|
|
|
Water Capacity |
2.5 Ton |
|
|
Package |
Plywood Case |
|
|
Net WT |
450 KGS |
|
|
Gross WT |
500 KGS |
|
|
Package Size |
L: 310CM X W: 130CM X H: 120CM L: 122.0 Inch X W:51.1 Inch X H: 120CM |
|
Advantages |
1. USA Design: Our machines are designed by America Design Team: Elegant Appearance, Humanized Design, Complete Function For Water Transfer Printing. 2. Patent Certificate : Our Machine got Patent Certificate in China, Certificate NO.: ZL 2010 2 0693932.6 3. High Quality: Our film got 90% higher positive feedbacks from clients around the world. 4. Best Price: Competitive price at small order, Big discount for large order. 5. Timely Shipment : We will ship the order soon after payment . 6. Best After-sales service: we provide you water transfer skill training, Helpful advises. You can reach us by E-mail, Trade manager, Skype, and so on . 7. Customization: We can also build your own tank design, please send us design picture in .AI format. We will do other things for you. |
|
|
Process |
Water Transfer Printing (also known as water immersion printing, hydrographic printing, hydro dipping, hydro imaging and fluid imaging) is a 3D decorating process.
The Water Transfer Printing process is extensively used to decorate items that range from entire all-terrain vehicles and car dashboards to small items like bike helmets or otherautomotive trim. Films can be applied to all types of substrates including plastic, fiberglass, wood, ceramics, and metal. For the most part, if the item can be dipped in water, the hydro-graphic process can be used.
|
|
1. Heating elements:
heat water fast to 25-30 degree C ( the most suitable water temperature for hydro dipping)
2. Water re-circulation system:
recircle water, flow away remains after dipping, no need to discharge water every time.
3. Control panel:
control power, heat elements, water re-circulation system, and pump. Press buttons, machine will works automatically.
4. Washing gun:
wash away sticky remains on the products' surface. Washing water is from the tank, reducing water waste.
order Procedure:
1 Please offer the quantity (square meters) of goods and your contact details (address, zip code,
phone number, ect.)
2 We make a proforma invoice (PI) for you, then please check and confirm the PI.
3 Once we confirmed the order, then please make the payment .
4 We need 5-7 days to prepare the goods.
5 Goods sent out, we offer you the tracking number.
6 We track the goods for you until you get them.
The advantages of our tank:
1. The stainless steel of the tank is 2.5mm, so it wouldn't be out of shape after you use it some days later.
2. Good welding to make sure machine won’t leak.
3. Stainless steel pump to keep a long lifespan.
4. Beautiful control panel with black color.
5. Machine is designed by American.
6. We have CE certification and patent, we can send you the no. for checking if you want.
Dipping items for display:
New starters come to us : you will get all you need ( technical training or tips, small pack films, activator, spray gun, dip kit etc.) to start, we will support you to grow big.
Wholesalers come to us : more than 5,000 patterns, Newest design, bulk price,24 hours shipping, 3-7 days fast delivery, 12 hours problem solved, your royalty design, and more benefit are here for you.
After 7 years develop , now our team are working with more than 5,500 clients , and face to face trained more than 200 clients . You are not only get films or machines from us, also technical guidance, new technique trends, new ideas of how to impress your clients .
We are able to support you to start or enlarge your water transfer printing business.
Beat Quality, Best Price and Best Service are just for you !
