Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ETONM
-
Model Number:
-
ET-SGM20-A
-
Torque:
-
0.05-6kg.cm
-
Product Name:
-
ET-SGM20A
-
Certification:
-
ce&RoHS
-
rotation direction:
-
CW/CCW running
-
noise:
-
low noise
-
Application:
-
home appliances
-
Keywords:
-
high torque small size
Quick Details
-
Speed(RPM):
-
8-1000rpm
-
Continuous Current(A):
-
TBD
-
Efficiency:
-
IE 2
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ETONM
-
Model Number:
-
ET-SGM20-A
-
Torque:
-
0.05-6kg.cm
-
Product Name:
-
ET-SGM20A
-
Certification:
-
ce&RoHS
-
rotation direction:
-
CW/CCW running
-
noise:
-
low noise
-
Application:
-
home appliances
-
Keywords:
-
high torque small size
Product Description

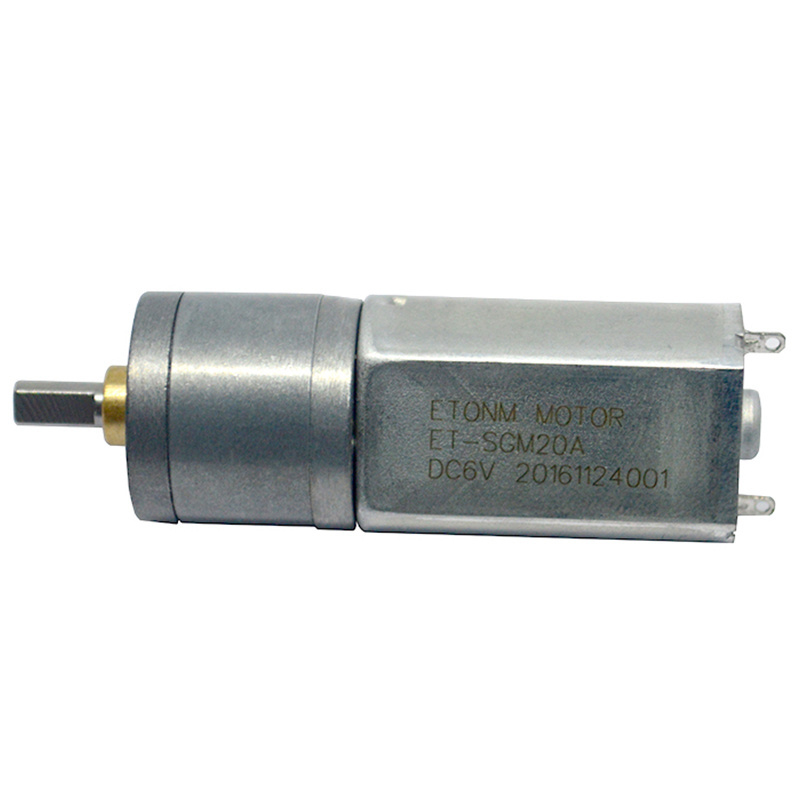

ETONM MOTOR
Precise metal gear motor
performance range
Voltage:
1.5-12VDC
Speed: 8-1000rpm
Torque: 0.05-6kg.cm
Key features
metal brush
CW/CCW running
low noise
Weight: 45g (APPROX)
Typical applications
safe and locking
sensor sanitary dispenser
robotics
|
Gear ratio stage
|
2
|
3
|
4
|
5
|
|
gear ratio
|
10
|
50
|
100
|
250
|
|
|
12.5
|
62
|
125
|
313
|
|
|
25
|
78
|
156
|
391
|
|
|
31
|
|
195
|
488
|
|
|
|
|
|
|
|
gearbox length(L) mm
|
16
|
17.5
|
19
|
20.5
|
ETONM MOTOR
T
his style motor standard size drawing as below, if you have any confuse, please let us know, we can help you to make customized.
ETONM MOTOR
Below is the datasheet for your reference, below model are the hot sell products. we can make the performance according to your requirements.
|
Model
|
voltage
|
|
no load
|
|
at rated load
|
|
|
||||
|
|
operation range
|
nominal
|
speed
|
current
|
speed
|
current
|
torque
|
||||
|
|
|
|
r/min
|
A
|
r/min
|
A
|
kg.cm
|
||||
|
ET-SGM20A-12650
|
2.0-28.0
|
24VDC
|
1276
|
≤100
|
1106
|
≤450
|
0.5
|
||||
|
ET-SGM20A-12520
|
12.0-28.0
|
24VDC
|
545
|
≤100
|
473
|
≤450
|
1
|
||||
|
ET-SGM20A-12260
|
12.0-28.0
|
24VDC
|
375
|
≤100
|
325
|
≤450
|
1.5
|
||||
|
ET-SGM20A-12209
|
12.0-28.0
|
24VDC
|
279
|
≤100
|
241
|
≤450
|
2
|
||||
|
ET-SGM20A-12130
|
12.0-28.0
|
24VDC
|
158
|
≤100
|
137
|
≤450
|
3.3
|
||||
|
ET-SGM20A-12105
|
12.0-28.0
|
24VDC
|
117
|
≤100
|
100
|
≤450
|
4.4
|
||||
|
ET-SGM20A-1283
|
12.0-28.0
|
24VDC
|
84
|
≤100
|
72
|
≤450
|
6
|
||||
|
ET-SGM20A-1265
|
12.0-28.0
|
24VDC
|
60
|
≤100
|
51
|
≤450
|
8
|
||||
|
ET-SGM20A-1252
|
12.0-28.0
|
24VDC
|
48
|
≤100
|
40
|
≤450
|
9.5
|
||||
|
ET-SGM20A-1242
|
12.0-28.0
|
24VDC
|
25
|
≤100
|
21
|
≤450
|
19
|
||||
|
ET-SGM20A-1233
|
12.0-28.0
|
24VDC
|
18
|
≤100
|
15
|
≤450
|
26
|
||||
|
ET-SGM20A-1226
|
12.0-28.0
|
24VDC
|
13
|
≤100
|
10.5
|
≤450
|
30
|
||||
|
ET-SGM20A-1221
|
12.0-28.0
|
24VDC
|
7.4
|
≤100
|
6
|
≤450
|
40*
|
||||
|
ET-SGM20A-1216
|
12.0-28.0
|
24VDC
|
3.8
|
≤100
|
3
|
≤450
|
40*
|
||||
|
ET-SGM20A-1213
|
|
|
|
|
|
|
|
||||
Remarks:
1. Shaft dimension can be customized.
2. The voltage can be 6v, 12v, 24v; The DC motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.
