Quick Details
-
Brand Name:
-
Silion
-
Air Protocols:
-
EPC Class 1Gen 2(ISO 18000-6C)
-
Integrated antenna:
-
9dbi antenna
-
Output power:
-
5dBm-30dBm (±1dBm) adjustable
-
Interface:
-
10/100 Base-T Ethernet interface, RJ45 interface
-
Working mode:
-
read and write
-
Read Rate:
-
300/500/700/900 tags/s
-
Reading Distance:
-
0-10m
-
Dimension:
-
258mmX 258mmX 105mm
-
Host API:
-
C, C#/.NET, Java, HTTP
-
Power supply:
-
12V, 3A
Quick Details
-
Frequency:
-
840-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Silion
-
Air Protocols:
-
EPC Class 1Gen 2(ISO 18000-6C)
-
Integrated antenna:
-
9dbi antenna
-
Output power:
-
5dBm-30dBm (±1dBm) adjustable
-
Interface:
-
10/100 Base-T Ethernet interface, RJ45 interface
-
Working mode:
-
read and write
-
Read Rate:
-
300/500/700/900 tags/s
-
Reading Distance:
-
0-10m
-
Dimension:
-
258mmX 258mmX 105mm
-
Host API:
-
C, C#/.NET, Java, HTTP
-
Power supply:
-
12V, 3A
Product Description
Product Paramenters

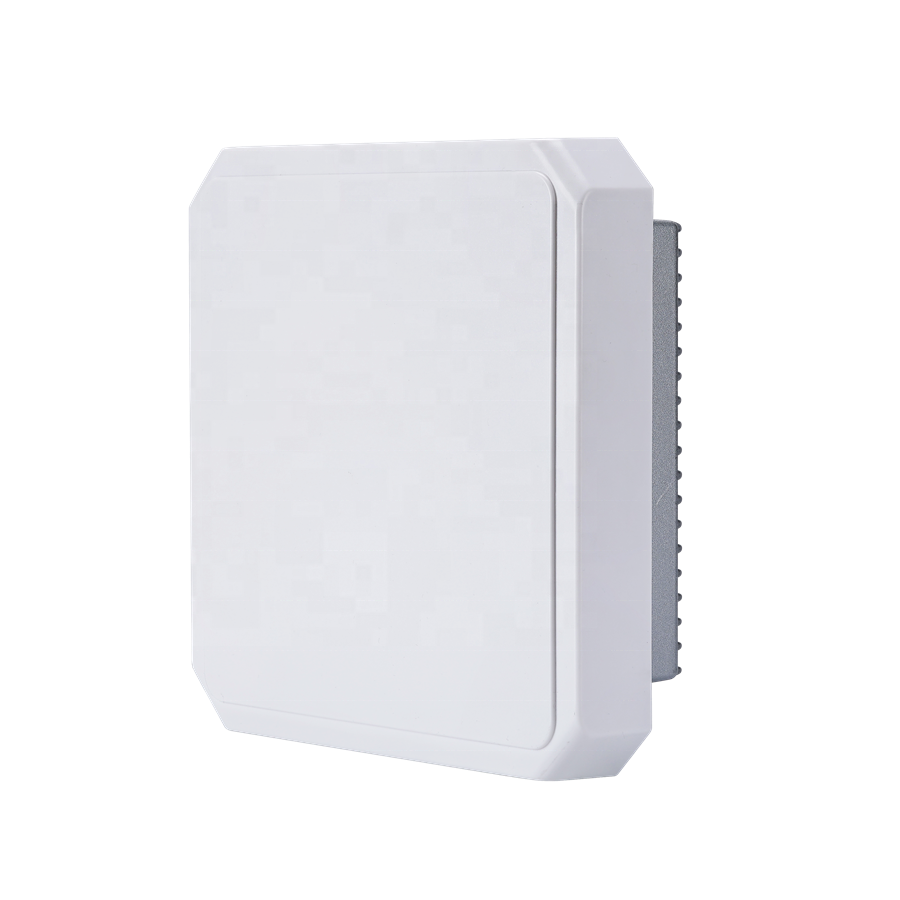

Integrated RFID UHF Reader rj45 SLR5108 key features:
Built in antenna, 9dbi circular
UHF RFID with RJ45 Ethernet port, 10/100 based -T
5-30dbm adjustable RF power
Open frequency 840-960MHz
high accuracy, fast speed, and strong anti-interference ability
Suitable for assembly line management, car parking, and outdoor use
|
Physical Characteristics
|
|
|
|
Dimensions
|
258mm x 258mm x 105mm
|
|
|
Net weight
|
about 1.5kg
|
|
|
RFID Characteristics
|
|
|
|
Air Protocols
|
EPC Class 1 Gen 2 (ISO 18000-6C)
|
|
|
Frequency
|
USA: 902-928MHz (NA, SA)
|
|
|
|
EU: 865-868MHz (ETSI)
|
|
|
|
CN: 920-925MHz (CMIIT)
|
|
|
|
Other customizable: OPEN 840-960MHz
|
|
|
Antenna
|
Built in 9dbi circular antenna
|
|
|
Output Power
|
5dBm-30dBm (±1dBm) adjustable
|
|
|
RJ45 communication speed
|
10M/100M
|
|
|
Connector Interface
|
Ethernet
|
|
|
|
(Power supply, Communication, GPIO is optional)
|
|
|
Tag RSSI
|
Support
|
|
|
Atenna Detector
|
Support
|
|
|
Temperature Detector
|
Support
|
|
|
RFID Performance
|
|
|
|
Max Read Rate
|
300/500/700/900 tags/s
|
|
|
Tag Read Distance
|
0-10m
|
|
|
Application Interface
|
|
|
|
Host API
|
C, C#/.NET, Java
|
|
|
Communication Interface
|
|
|
|
Communications
|
10/100 Base-T Ethernet port
|
|
|
Power Supply
|
|
|
|
Input Voltage
|
DC 12V 3A, power adapter
|
|
|
Working Environment
|
|
|
|
Operating Temp.
|
-20°C to +55°C
|
|
|
Storage Temp.
|
-40 °C to +85°C
|
|
|
Humidity
|
5-90% non-condensing (+25°C)
|
|
