Quick Details
-
Model Number:
-
PD-MV1008
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Size:
-
111.5*111.5*65.5mm
-
Regular color:
-
White
-
Lead time:
-
35 days
-
Shipping time:
-
20 - 40 days
-
Shipping way:
-
By sea train plane
-
OEM/ODM:
-
Yes
-
Logo:
-
Yes
-
MOQ:
-
PDLUX 500, Customize 3000
-
Certificate:
-
CE
-
Warranty:
-
3 Years or 6 Years(zero-crossing)
Quick Details
-
Use:
-
Auto-switch
-
Mounting Type:
-
Ceiling mounted
-
Description:
-
Infrared Microwave Motion Sensor
-
Model Number:
-
PD-MV1008
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Size:
-
111.5*111.5*65.5mm
-
Regular color:
-
White
-
Lead time:
-
35 days
-
Shipping time:
-
20 - 40 days
-
Shipping way:
-
By sea train plane
-
OEM/ODM:
-
Yes
-
Logo:
-
Yes
-
MOQ:
-
PDLUX 500, Customize 3000
-
Certificate:
-
CE
-
Warranty:
-
3 Years or 6 Years(zero-crossing)
Product Description

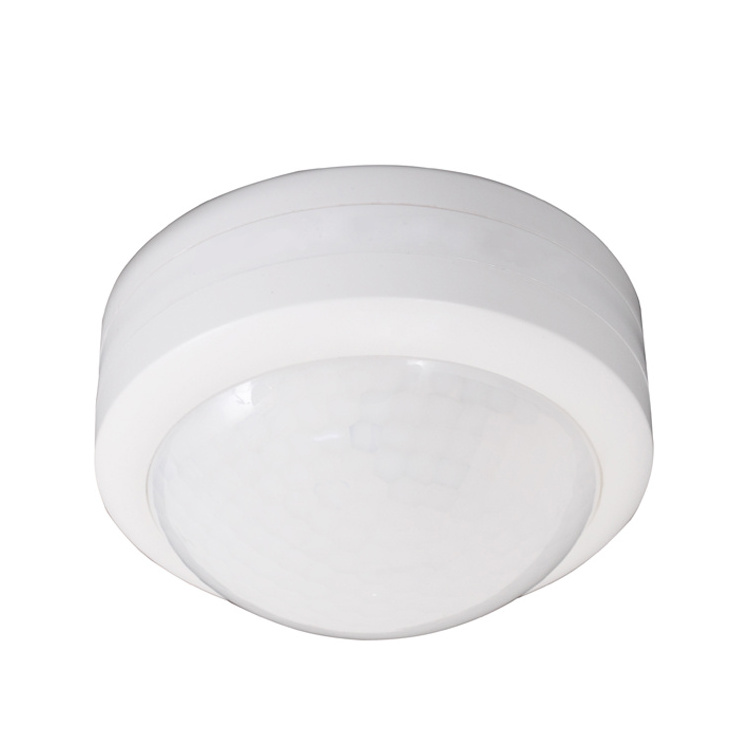

PDLUX PD-MV1008 LED Room Ceiling Light Lamp Infrared HF Movement Detector Indoor Microwave PIR Motion Sensor Switch
|
Power Source
|
100-240V/AC
|
|
Power Frequency
|
50/60Hz
|
|
HF System
|
5.8GHz CW radar, ISM band
|
|
Rated Load
|
1800W Max.(240VAC Incandescent cosφ=1)
500W Max.(240VAC Fluorescent cosφ=0.5)
900W Max.(100VAC Incandescent cosφ=1)
240W Max.(100VAC Fluorescent cosφ=0.5)
|
|
Time Setting
|
6sec-20min (adjustable)
|
|
Detection Range
|
2m-15m (adjustable)
|
|
Detection Angle
|
360°
|
|
PIR Working Temperature
|
-10℃ ~ +40℃
|
|
HF Working Temperature
|
-10 ~ +70℃
|
|
Light-control
|
2-2000LUX (adjustable)
|
|
Installation Height
|
2.5m - 3.5m (Ceiling installation)
|
|
Detection Motion Speed
|
0.6 - 1.5m/s
|
|
Standby Power
|
＜0.5W
|
|
Transmission Power
|
＜0.2mW
|
