Quick Details
-
Function:
-
Programmable
-
Product dimension:
-
L159*W90* H24mm
-
pixels:
-
2048
-
IC:
-
ws2812/sk6812/ws2813
-
Control color:
-
RGB
-
Input Voltage:
-
DC 5-24v
-
Packing size:
-
L170*W110*H40mm
-
Net weight:
-
268g
-
Gross weight:
-
300g
-
Voltage:
-
DC 5-24v
Quick Details
-
Type:
-
Control
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

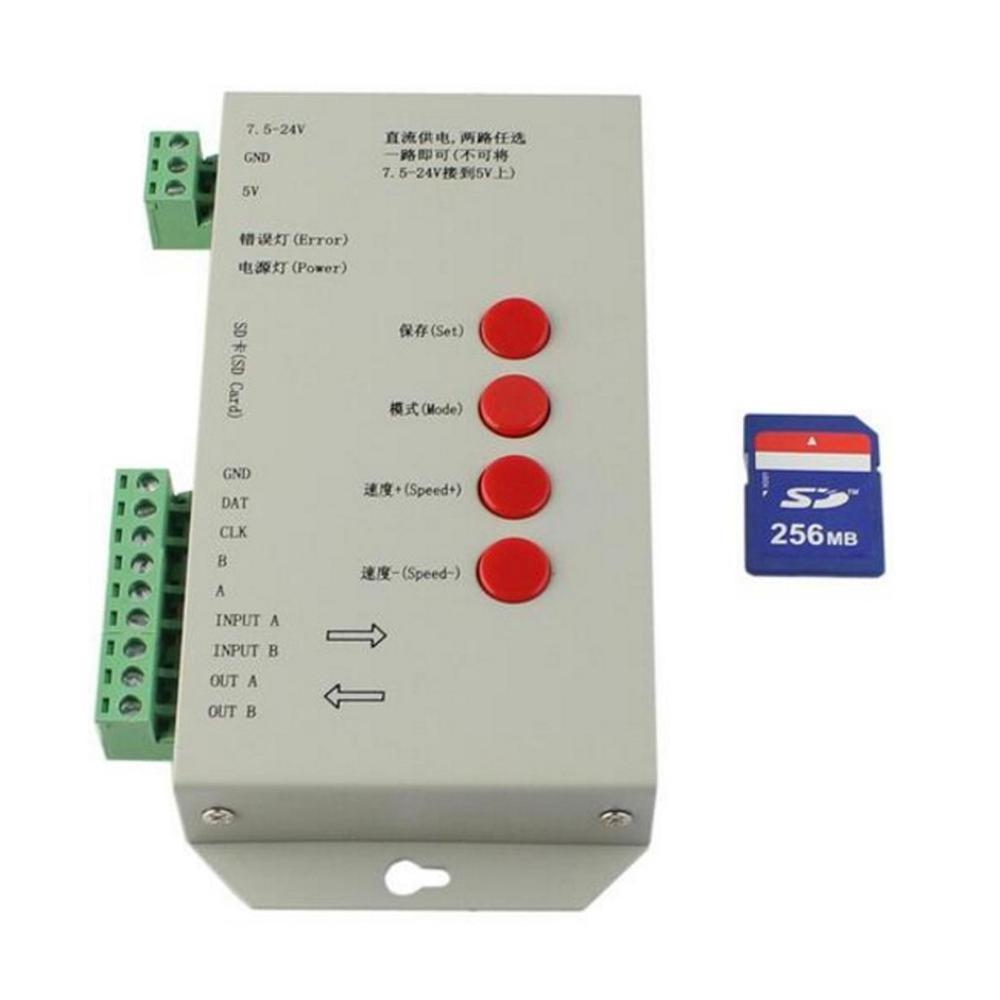

T1000S SD Card Controller
-
Function:
-
Programmable
-
Product dimension:
-
L159*W90* H24mm
-
pixels:
-
2048
-
IC:
-
ws2812/sk6812/ws2813
-
Control color:
-
RGB
-
Input Voltage:
-
DC 5-24v
-
Packing size:
-
L170*W110*H40mm
-
Net weight:
-
268g
-
Gross weight:
-
300g
-
Voltage:
-
DC 5-24v
|
Item
|
T1000S SD Card controller
|
|
Voltage
|
DC5-24V
|
|
Effect programs
|
Programmable
|
|
Max control pixel
|
2048 pixels
|
|
Speed adjust
|
Available
|
|
Brightness adjust
|
Available
|
|
Application
|
For digital strip
|
|
Package
|
1 SD Scrad, 1 controller, 1 Screw
|
|
Product dimension
|
L159*W90* H24mm
|
|
Net weight
|
268g
|
|
Gross weight
|
300g
|
T-1000S System features
1
.
32—256 Gray level
,
Support software Gamma correction
.
2 . Support the rules and special-shaped handle.
3 . Single-port output , can support 2048 pixels .
4 . Off-line(SD Card) control, play back content stored in the SD card.
5 . T-1000S store a maximum of 16 programs , copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6 . The program must be named in orders . just as : 00_1.led, 01_1.led, 02_1.led.
7 . Compatible with single line or double line chips.
NOTE :
1> When T-1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically
2> T-1000S must use the new software LedEdit 201 3 .
1. DC5V-24V Working Voltage, This Controller Compatible with DC5V WS2812B /SK6812 Strips, 12V WS2811 LED Strips.
2. Over 300 kinds of lighing modes; Support maximum 2048 Pixels if power properly
3. Come with 3pin male JST connector and DC female connector, easy to connect with WS2812B LED Light, just plug & play
4. With RF 21 Keys Remote, extremely easy to control addressable led strips from long distance
5. Controller is for full color/digital/smart/programmable led product, if need single color or normal rgb color, please contact us for other items!
