Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Mobility:
-
easy
-
Gyrator Stroke (mm):
-
3400
-
process(mm):
-
900
-
Gyrator lift (kN):
-
70
-
Gyrator pressure (kN):
-
36
-
Gyrator Feeding speed:
-
14, 46, 59
-
Input power (kW):
-
55+18.5
-
Drill depth (m):
-
130~170
-
Strong drilling ability:
-
yes
-
hydraulically shifted:
-
yes
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH
-
Weight:
-
5400 KG
-
Marketing Type:
-
Hot Product 2024
-
Mobility:
-
easy
-
Gyrator Stroke (mm):
-
3400
-
process(mm):
-
900
-
Gyrator lift (kN):
-
70
-
Gyrator pressure (kN):
-
36
-
Gyrator Feeding speed:
-
14, 46, 59
-
Input power (kW):
-
55+18.5
-
Drill depth (m):
-
130~170
-
Strong drilling ability:
-
yes
-
hydraulically shifted:
-
yes

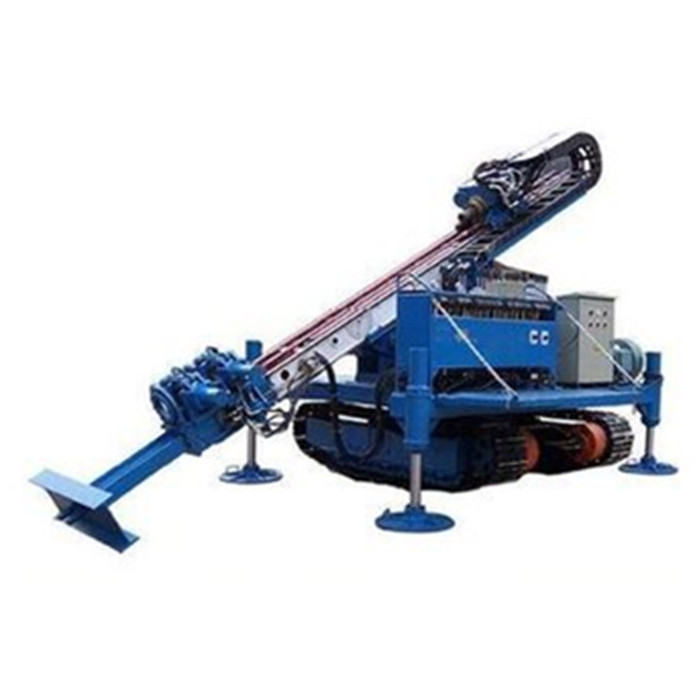

Anchor drilling rig, in some places, ,is also known as anchor rod drilling machine. This hydraulic anchor drill machine. is a kind of necessary, .engineering machinery in infrastructural project. lt is a drilling tool in coal mine roadway for supporting anchor rod .
Anchor rig has outstanding advantages, such. as improving supporting effect, reducing the cost, speeding up the lane, lessening auxiliary traffic, decreasing labor intensity, increasing the utilization rate, of roadway section. Anchor drilling rig is the key equipment to rock bolting. If influences the quality of bolt support, such as the orientation of the bolt hole, the depth' accuracy, the diameter and anchor installation quality. It also affects the personal safety of the operator, labor intensity, work conditions, etc.
1.Strong drilling ability, wide application range, long running distance, fast drilling speed, easy handling of accidents, high
drilling efficiency
2. Serialized products have different models, different capabilities, and multiple choices to meet the needs of different
customers.
3. Power head can be mechanically / hydraulically shifted. Suitable for various drilling methods such as down-the-hole hammer, heel pipe, full casing and alloy rotation
4.The drilling rig is equipped with a hydraulic clamping shackle device and an automatic shackle, which reduces auxiliary time and labor intensity.
6. The crawler chassis equipped with a turning device on the car makes the whole machine move and find holes more conveniently and quickly.
Product Description
Specification
|
Model
|
DH-150
|
||
|
Drill diameter (mm)
|
φ150～φ250
|
||
|
Diameter（mm）
|
Single: 400-600 double: 600-1200 triple: 800-1600
|
||
|
Drill depth (m)
|
130～170
|
||
|
Pipe diameter (mm)
|
φ73, φ8, φ10, φ114/φ127, φ133, φ140, φ146
|
||
|
Drilling angle (° )
|
0～90
|
||
|
Boom, lift.（mm）
|
NO
|
||
|
Gyrator Output torque (N. m)
|
7500
|
||
|
Gyrator impact（J）
|
NO
|
||
|
Gyrator frequency（min-1）
|
NO
|
||
|
Gyrator Stroke (mm)
|
3400
|
||
|
process(mm）
|
900
|
||
|
Gyrator lift (kN)
|
70
|
||
|
Gyrator lifting speed (m/min)
|
0～5(Adjustable),7, 23, 30
|
||
|
Gyrator pressure (kN)
|
36
|
||
|
Gyrator Feeding speed (m/min)
|
0～10(Adjustable), 14, 46, 59
|
||
|
Input power (kW)
|
55+18.5
|
||
|
Transport dimensions (L*W*H) mm)
|
5400×2100×2000
|
||
|
Weight (t)
|
6000
|
||
Our Services for you ❤
1.Whole process guidance With more than 15 years of service experience, we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
2.Provide a full set of construction method and equipment training Provide design and construction solutions in terms of cost budget / progress improvement / quality control / safety management.
3.After-sales service system Fully track the service system, focus on customer needs, first-class speed, skills, attitude, and provide support for customer
4.Support customization Relying on our powerful flexible production line, we can give you the right to fully choose the mold,drive method, accessories upgrade, shell material, appearance color and Logo etc.
5.Extensive spare parts service The spare parts warehouse of more than 50,000 square meters can meet the timely replacement and supplement of any wearing parts.
6.Support sea, land and air transportation We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.
