Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNFULL
-
Heating System:
-
Thermosyphon (Passive)
-
Certification:
-
CE CCC ISO9001
-
Color:
-
Customer Require
-
Frame:
-
Stainless Steel
-
Size:
-
Custom Made
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Hotel, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNFULL
-
Heating System:
-
Thermosyphon (Passive)
-
Certification:
-
CE CCC ISO9001
-
Color:
-
Customer Require
-
Frame:
-
Stainless Steel
-
Size:
-
Custom Made

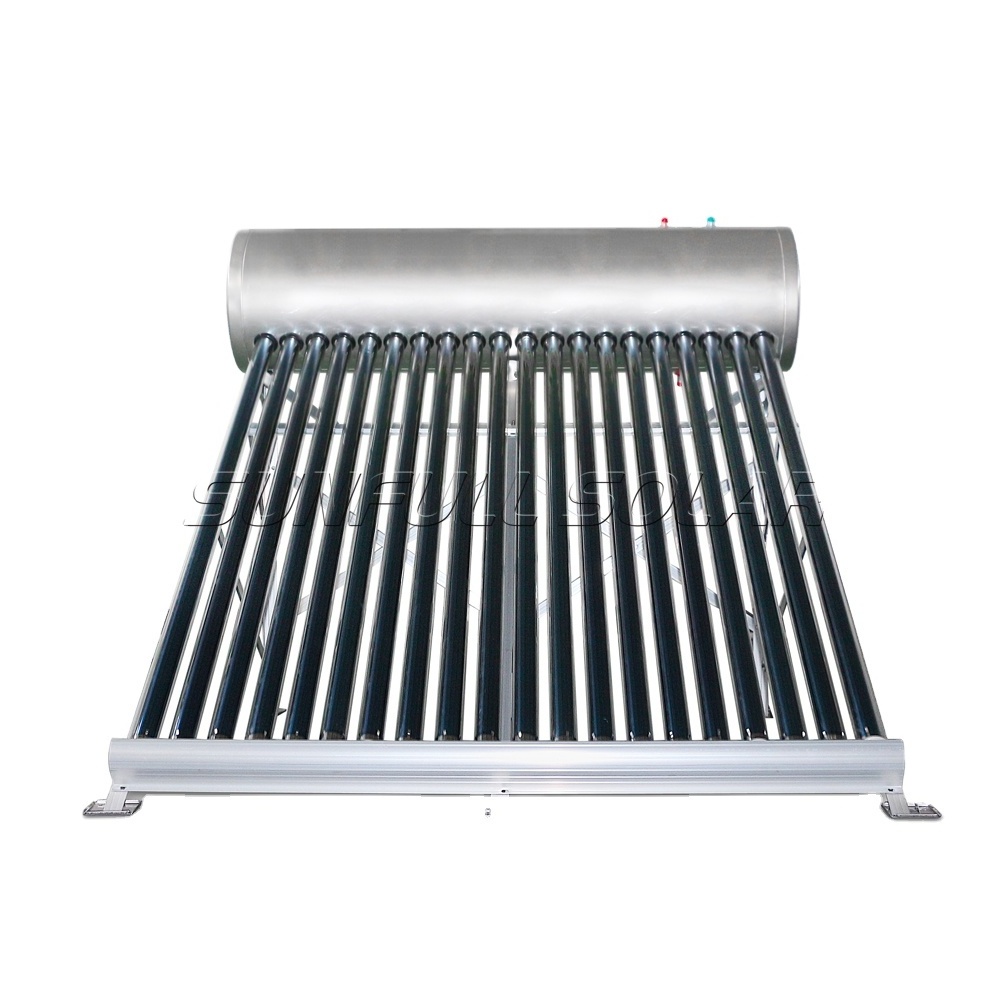

38 Degree 200 liter Non-pressurized Solar
Water Heater with 20 Vacuum Tube
Non-pressure solar water heater relies on the nature circulation of the water between solar tubes and the water tank. Thermosyphon systems work on principal of heat rising. The water enters in the bottom of the collector and rises to the tank as it warms. The advantage of this system is that solar heat is stored in a well-insulated tank, so hot water can be used at any time without the penalty of overnight losses.
|
Description
|
38 Degree 200 liter Non-pressurized Solar Water Heater with 20 Vacuum Tube
|
|
|
||
|
Material of outer tank
|
stainless steel
|
|
|
||
|
Material of inner tank
|
SUS304-2B (food grade) Stainless Steel
|
|
|
||
|
Insulation Layer
|
Polyurethane Foaming
|
|
|
||
|
Bracket
|
Galvanized Steel
|
|
|
||
|
Vacuum Tube
|
Ø 47*1500mm,Ø58*1800mm
|
|
|
||
|
Tube Number
|
20
|
|
|
||
|
System Capacity
|
200L
|
|
|
||
|
Heat Preservation
|
72 hours
|
|
|
||
|
Hail Resistance
|
25mm
|
|
|
||
|
Optional Accessories
|
Assistant Tank, Electric Heater, Controller, Magnesium Anode, etc.
|
|
|
||
|
Model
|
Capacity(Liter)
|
Tube Specification
|
Tube Quantity
|
Packing Size(CBM)
|
Loading Quantity(Set)
|
|
|
||
|
|
|
|
|
|
20'GP
|
40'GP
|
40'HP
|
||
|
SF-NPS58-12
|
120L
|
Ø58*1800mm
|
12
|
0.432
|
66
|
136
|
160
|
||
|
SF-NPS58-15
|
150L
|
Ø58*1800mm
|
15
|
0.540
|
53
|
109
|
128
|
||
|
SF-NPS58-18
|
180L
|
Ø58*1800mm
|
18
|
0.648
|
45
|
91
|
106
|
||
|
SF-NPS58-20
|
200L
|
Ø58*1800mm
|
20
|
0.720
|
40
|
82
|
96
|
||
|
SF-NPS58-24
|
240L
|
Ø58*1800mm
|
24
|
0.864
|
32
|
68
|
80
|
||
|
SF-NPS58-30
|
300L
|
Ø58*1800mm
|
30
|
1.080
|
26
|
55
|
64
|
||
|
SF-NPS58-32
|
320L
|
Ø58*1800mm
|
32
|
1.152
|
24
|
51
|
60
|
||
38 Degree 200 liter Non-pressurized Solar Water Heater with 20 Vacuum Tube
2. High efficiency of heating,water heated by sun light directly.
3. Withstands water pressure no more than 0.1MPa.
4. Operated without any power supplying.
5. Electric heater can be used as back-up in rainy days.
6. Hot water can be used directly, or can be used as a pre-heated.
7. Water flow in the vacuum tubes and is operated when confined.
8.Tank is equipped with electric water heater setting, automatic temperature controller(optional ).
9. the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
38 Degree 200 liter Non-pressurized Solar Water Heater with 20 Vacuum Tube
Evacuated tube solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical. As the specific gravity of hot water and cold water are different, cold water goes downward and hot water goes upward. When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes Through this circulation, the cold water in the water tank will be gradually heated.
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign
trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater,
we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
1. what is your delivery time?
· Sample in one week after payment.
· Twenty-Foot container order 10-15 days after deposit.
2. what is your Guarantee time?
· 3 years, and 1 years for accessories
· Provide you with some extra accessories for free
3. Can you accept OEM?
· Yes
4. What is your MOQ?
· 1 Twenty-Foot container
5. What is your Payment Term?
· We accept T/T or Western Union
