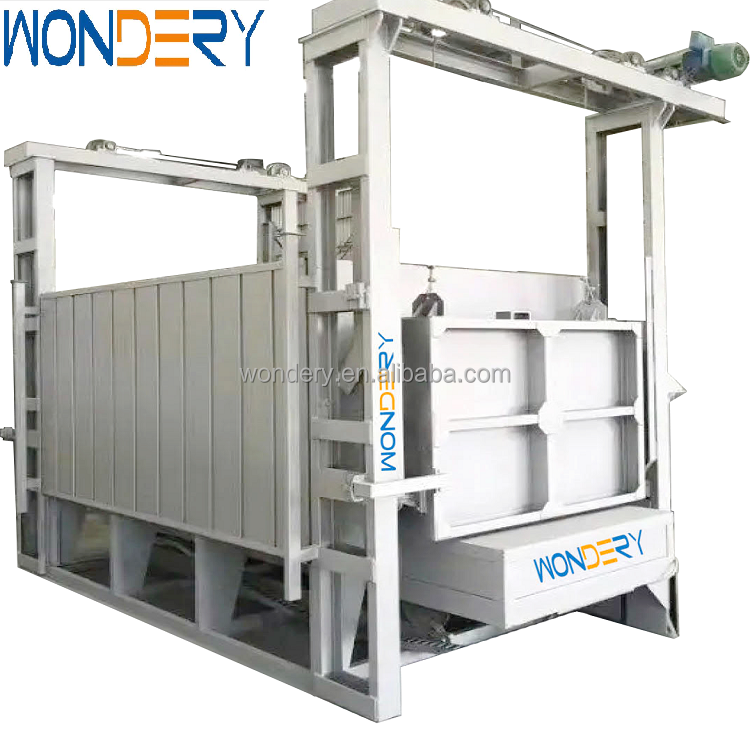

WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale

WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $18000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
Onsite Condition
Dimension(L*W*H):
based on furnace size
Weight (T):
10 T
Power (kW):
75
Furnace type:
Annealing Industrial Furnace
Rated power:
75KW
Rated temperature:
1200℃
Heating elements:
HRE (strip)
Bogie face plate:
0Cr25Ni20Si2
refractory lining:
High alumina high-temperature refractory fiber
bogie driving mechanism:
reducing gear and motor or manual system
Furnace door opening method:
Electric hoist up-down
electrical components:
Schneider, CHINT or other quality components
PLC control:
Siemens S7-200 PLC

Quick Details

Place of Origin:
Jiangsu, China
Marketing Type:
New Product 2024
Brand Name:
WONDERY
Voltage:
Onsite Condition
Dimension(L*W*H):
based on furnace size
Weight (T):
10 T
Power (kW):
75
Furnace type:
Annealing Industrial Furnace
Rated power:
75KW
Rated temperature:
1200℃
Heating elements:
HRE (strip)
Bogie face plate:
0Cr25Ni20Si2
refractory lining:
High alumina high-temperature refractory fiber
bogie driving mechanism:
reducing gear and motor or manual system
Furnace door opening method:
Electric hoist up-down
electrical components:
Schneider, CHINT or other quality components
PLC control:
Siemens S7-200 PLC
WONDERY 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace For Sale

Product Application

The Resistance Bogie Hearth Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.

annealing industrial furnace annealing industrial furnace annealing industrial furnace annealing industrial furnace

Specifications For 1200 Degree C Electric Resistance Bogie Hearth Car Bottom Type Annealing Industrial Furnace
1
Rated power
75Kw (1-100%) adjustable
2
Power supply
380V, 3P, 50Hz
3
Rated temperature
1200℃
4
Control zone
1 zone
5
Effective working size
1000×1000×800mm(L×W×H)
6
Heating element connection
Y
7
Temperature uniformity
±8℃
8
Temperature measurement accuracy
±1℃
9
Heating element material
HRE (strip)
10
Temperature control method
SCR, PID regulator; Shimaden Japan programmable temperature controller with 485 communication interface work with 10.1 inch touch screen.
11
Furnace bottom plate material
0Cr25Ni20Si2, thickness of 30mm
12
Loading method
Product loaded on the bogie, and then bogie moves into the furnace
13
Furnace door opening method
1 ton Electric hoist up-down,
14
Bogie moving motor power
1.5 KW, 1 set
15
Bogie moving speed
6~7m/min
17
Furnace lining
High purity fire-resistant fiber cotton, thickness 300mm

Furnace Lining

The furnace body is built with an all-fiber fold blocks system. The fibers of the furnace lining are high purity ceramic fibers produced by Luyang, Shandong.


The heating element of the furnace body is made of high-quality high resistance alloy material HRE, . All lead-out conductor bars are made of φ16 0Cr27AL7Mo2 material.

Bogie and bogie driving mechanism
The bogieis composed of a frame, furnace lining masonry, furnace bottom plate, bogie traction mechanism, etc.
The steel frame of the bogie adopts a single-layer frame structure, with a bottom plate made of 4mm Q235 steel plate welded and a
side plate made of 12mm thick steel plate welded.

Push Rod Sealing Mechanism

Name: push rod sealing mechanism
Brand: domestic quality brand
Original: CHINA
The door and furnace door is tightly sealed together to prevent heat loss.

Control Cabinet

The furnace adopts intelligent temperature controller to control the temperature which has self-tuning function to calculate the ideal
PID parameter and achieve a temperature stability. The temperature controller has the functions of over-temperature alarm and
thermal couple breakage protection.

Main Features

1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

3) Heating components: high temperature resistance alloy wires and strips.

4) Low noise, energy-friendliness, and stable performance.


5) Advanced CAD design.


6) Years of experiences in heat treatment process.

Model
Hearth Size(mm)
L*W*H
Rated Power (KW)
Empty Furnace Rising Time (h)
Max Loading Capacity
RT2-30-9
950*500*450
30
2.5
500
RT2-45-9
1100*600*400
45
2.5
800
RT2-65-9
1200*600*450
65
2.5
1000
RT2-75-9
1500*750*600
75
2.5
1500
RT2-90-9
1800*900*600
90
2.5
2500
RT2-105-9
1800*900*650
105
2.5
3500
RT2-120-9
2000*900*700
120
2.5
4000
RT2-135-9
2000*1000*750
135
2.5
4200
RT2-150-9
2200*1000*800
150
2.5
5000
RT2-180-9
2200*1050*750
180
2.5
6000
RT2-200-9
2400*1200*900
200
2.5
6500
RT2-220-9
2500*1300*900
220
2.5
7000
RT2-240-9
2500*1400*900
240
2.5
8000
RT2-250-9
2800*1500*900
250
2.5
9000
RT2-280-9
3000*1500*950
280
2.5
10000
RT2-300-9
3000*1530*950
300
2.5
11000
RT2-320-9
3200*1530*950
320
2.5
12000
RT2-350-9
3500*1500*1200
350
2.5
15000
RT2-380-9
4000*1500*1200
380
2.5
18000
RT2-400-9
4500*1500*1200
400
3
20000
RT2-420-9
4500*1600*1200
420
3
22000
RT2-450-9
5200*1500*1200
4450
3
25000
RT2-480-9
5500*1500*1200
480
3
28000
RT2-500-9
6000*1500*1200
500
3
30000
RT2-540-9
6500*1800*1200
540
3
35000
RT2-600-9
7000*1800*1200
600
3
38000
RT2-650-9
7200*2000*1200
650
3
40000
RT2-700-9
7500*1800*1800
700
3
42000
RT2-750-9
8000*2000*2000
750
3
48000
RT2-800-9
8500*2000*1500
800
3.5
52000
RT2-900-9
9000*2200*1600
900
3.5
60000
Wuxi Wondery Industrial Equipment Co., Ltd. . is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
