Quick Details
-
Model Number:
-
5IK40RGN-EJ
-
Frequency:
-
50,60
-
Certification 1:
-
CCC
-
Certification 2:
-
CE
-
Certification 3:
-
UL
-
protection class:
-
Ip20 ,Ip44
Quick Details
-
AC Voltage:
-
115/120 V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZD MOTOR
-
Model Number:
-
5IK40RGN-EJ
-
Frequency:
-
50,60
-
Certification 1:
-
CCC
-
Certification 2:
-
CE
-
Certification 3:
-
UL
-
protection class:
-
Ip20 ,Ip44
Product Description

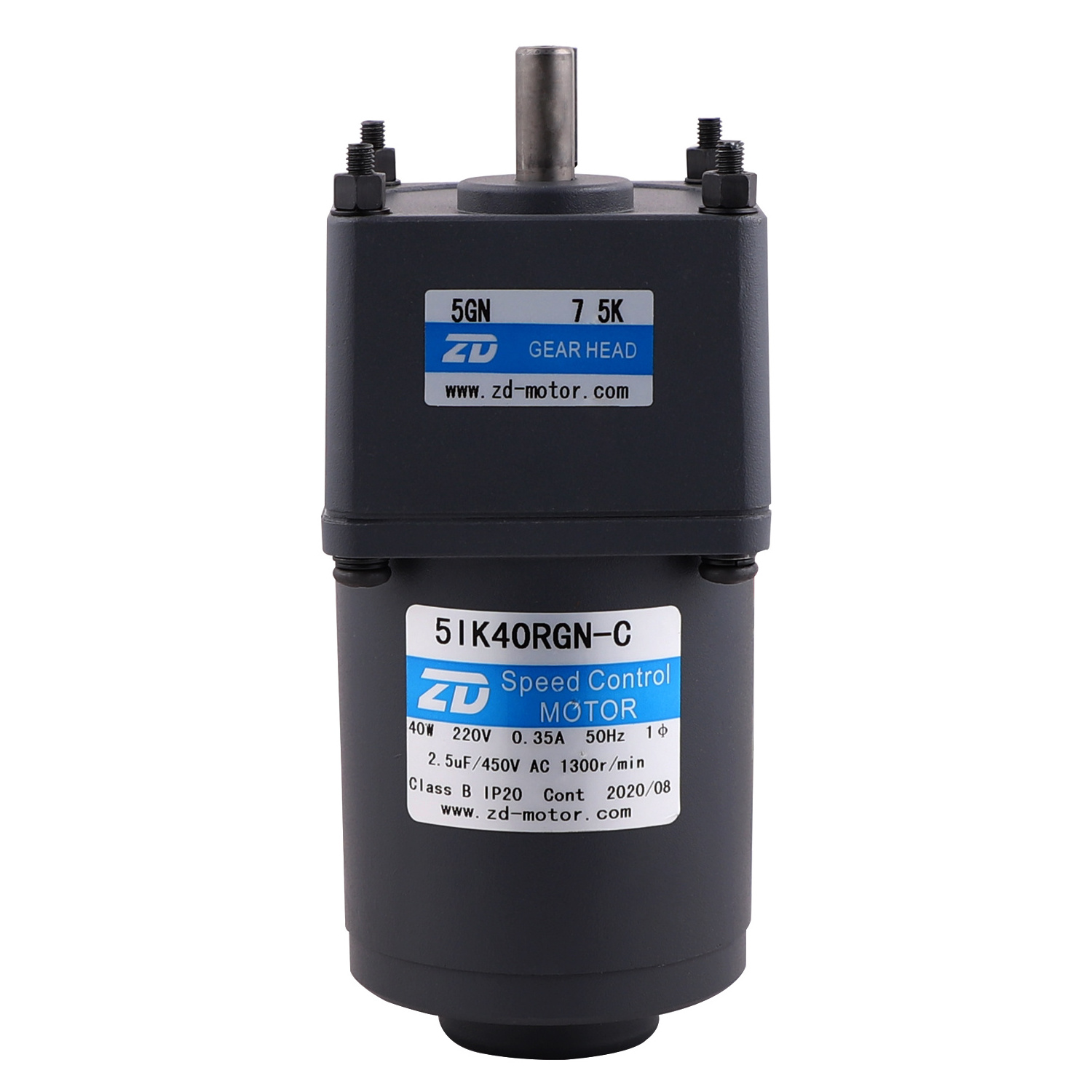

AC Gear Motor
* Motor Type: Induction/Reversible/Break/Torque/Speed Control Motor
* Frame Size：60mm, 70mm, 80mm, 90mm, 104mm
* Power：6W-200W+
* Ratio Range：3-200K
* Voltage:110V/200V/220V/380V/415V 50/60Hz Single/Three-Phase
* Application：Packing Machinery, Barrier Gate System, Conveyor ...
* Motor Type: Induction/Reversible/Break/Torque/Speed Control Motor
* Frame Size：60mm, 70mm, 80mm, 90mm, 104mm
* Power：6W-200W+
* Ratio Range：3-200K
* Voltage:110V/200V/220V/380V/415V 50/60Hz Single/Three-Phase
* Application：Packing Machinery, Barrier Gate System, Conveyor ...
Detailed Images
Product Parameters
|
MOTOR FRAME SIZE
|
|
60 mm / 70mm / 80mm / 90mm / 104mm
|
|
|
MOTOR TYPE
|
|
INDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTOR
|
|
|
OUTPUT POWER
|
|
10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W (Can Be Customized)
|
|
|
OUTPUT SHAFT
|
|
8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
|
|
|
Voltage type
|
|
110V,120V,220V,230V,380V,415V
|
|
|
Frequency
|
|
50/60Hz
|
|
|
Accessories
|
|
Terminal Box / Fan / Thermal protector / Electric Brake / Controller
|
|
|
GEARBOX FRAME SIZE
|
|
60 mm / 70mm / 80mm / 90mm / 104mm
|
|
|
Gear Ratio
|
|
3K-200K
|
|
|
Type Of Pinion
|
|
GN Type / GU Type
|
|
|
Gearbox Type
|
|
Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox
|
|
Other Type Of AC/DC Motor
Recommend Products
Customized Product Service
Why Choose Us
FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
|
Stock In Hand
|
Standard Type
|
Non-Standard Type
|
Customized Type
|
|
|
|
After Payment
|
In 10 Days
|
15-30 Days
|
Depend on the condition
|
|
|
