Quick Details
-
Power:
-
750W
-
Table Size:
-
1830*2000
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
700 kg
-
Marketing Type:
-
Other
-
Product name:
-
Hydraulic Dock Levelers
-
Color:
-
dark gray/ Black
-
Thickness of upper plate:
-
8mm thickness
-
Swinging Lip:
-
16mm thickness fully steel plate
-
Power system:
-
hydraulic power unit
-
Working temperature:
-
+50°C/-25°C
-
Working pressure:
-
120bar
-
Oil tank:
-
5L
-
Control box:
-
24Volts,IP65
-
Security:
-
Safety ValveFull range protection sheet Maintenance support rod
Quick Details
-
Warranty:
-
5 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
saduqi
-
Power:
-
750W
-
Table Size:
-
1830*2000
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
700 kg
-
Marketing Type:
-
Other
-
Product name:
-
Hydraulic Dock Levelers
-
Color:
-
dark gray/ Black
-
Thickness of upper plate:
-
8mm thickness
-
Swinging Lip:
-
16mm thickness fully steel plate
-
Power system:
-
hydraulic power unit
-
Working temperature:
-
+50°C/-25°C
-
Working pressure:
-
120bar
-
Oil tank:
-
5L
-
Control box:
-
24Volts,IP65
-
Security:
-
Safety ValveFull range protection sheet Maintenance support rod

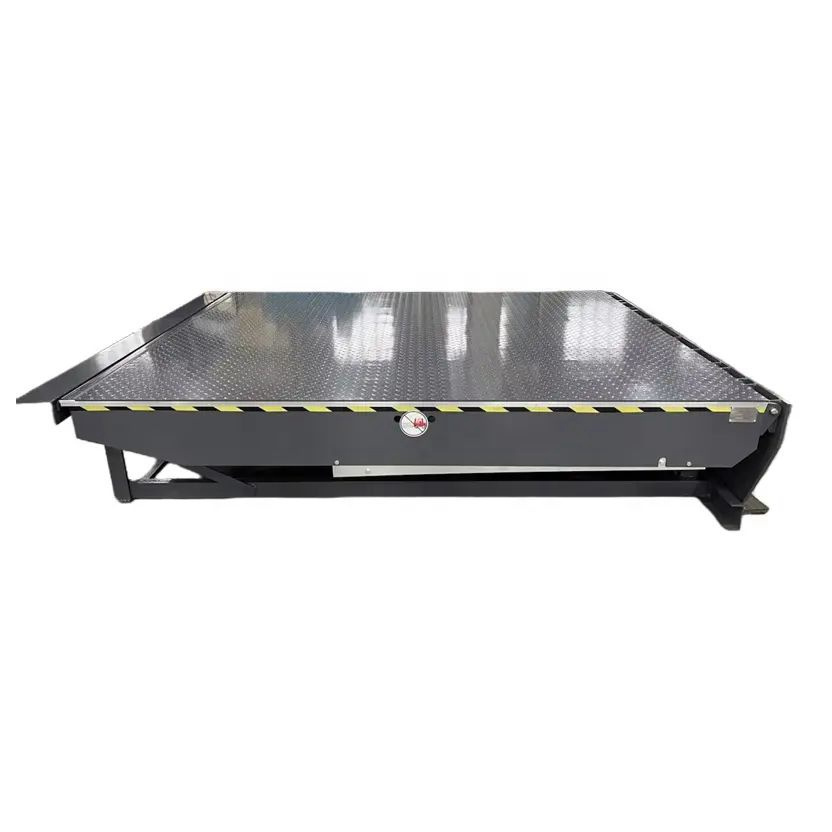

Hydraulic Dock Levelers
Operation very convenient, make the loading and unloading job easy and fast,improve Logistic Efficiency.
|
Technical Specifications
|
|
|
|
Standard Sizes
|
1980x2210x500mm
|
|
|
Dvnamic oad Uniformly distributed load
|
6000kg/10000kg
|
|
|
Adjust Range
|
+350mm/-300mm
|
|
|
Thickness of upper plate
|
8mm thickness
|
|
|
Swinging Lip
|
16mm thickness fully steel plate
|
|
|
Standard color
|
dark gray/ Black
|
|
|
Support Frame
|
Leveler surface is supported by 8-12 pieces of c-shape steel structure.allowing more flexibility and stability.
|
|
|
Power system
|
hydraulic power unit
|
|
|
Working temperature
|
+50°C/-25C
|
|
|
Working pressure
|
120bar
|
|
|
Oil tank
|
5L
|
|
|
Control box
|
24Volts，IP65
|
|
|
Security
|
Safety Valve Full range protection sheet Maintenance support rod
|
|
Structural components
|
1. Mould
|
2. Hydraulic control unit
|
|
3. Upper plate
|
4. Left foot guard
|
|
5. Control unit support
|
6. Swinging lip
|
|
7. Left short shaft
|
8. Shaft fixing pins
|
|
9. Right long shaft
|
10. Cylinder of the lip
|
|
11. Pin of the lip cylinder rod
|
12. Seeger straight pins of the lip
|
|
13. Stright Pin body of the body
|
14. Right foot guard
|
|
15. Flange fixing - upper plate cylinder
|
16. Upper plate rotation pivot
|
|
17. Seeger upper plate rotation pivot
|
18. Stright Pin body of the upper plate
|
|
19. Upper plate cylinder
|
20. Upper plate cylinder shaft pin
|
|
21. Seeger upper plate cylinder pins
|
|
Dock leveler Construction Pit
|
①CABLE PIPING
|
②BACK EDGE PLATE 80*80*10 mm
|
|
③CABLE PIPE LOCATION
|
④20mm C CHANNEL
|
|
⑤SIDE EDGE PLATE 60*60*5mm
|
⑥PERPENDICULAR WALL SURCAFE AGAINST PIT
|
|
⑦WELDED FRONT PLATE
|
⑧FRONT EDGE PLATE 60“60*5mm
|
|
⑨SIDE EDGE PLATE 60*60*5mm
|
⑩ANGLE BOLT
|
|
⑪SMOOTHENED 20mm WALL SURFACE
|
|
Good product details are not afraid of magnification
Swinging Lip
Single plate 16mm thickness，morerugged and durable, does not pro-duce stress cracking problems
Main plate profile
lt consists of 8-12 C ype steel profilesaccording to plate width. The struc-ture ensures strength and resistanceto torsion of the main plate.
Maintenance strut
The Maintenance strut is to protectthe workers during cleaning andrepair process to ensure bettersafety standard.
Piston
Main piston for upper plate and smallpiston for lip
Safety Valve
Security block:in case of accidentamoving of the truck,the dock levellerwill be blocked with a short stroke
Hydraulic unit
100% origin imported hydraulic unitHigh closeness, stable working
|
