Quick Details
-
Weight:
-
2280 kg
-
Dimension(L*W*H):
-
4690*2050*2320
-
Power:
-
BMT50-250
-
Product name:
-

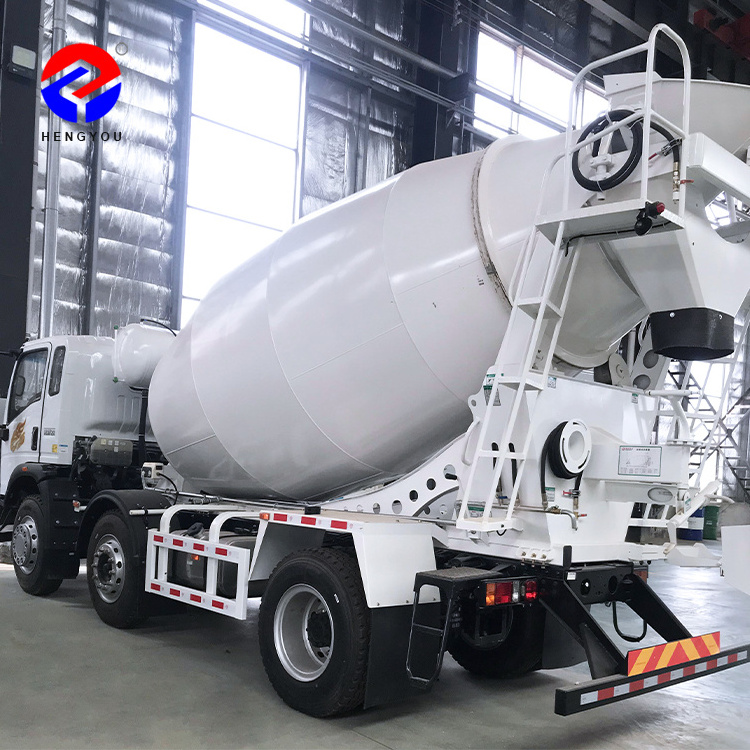

4 Cubic Meters Concrete Mixer Truck
-
Keywords:
-
Loading Concrete Mxier Truck
-
Type:
-
4 Cylinders
-
Name:
-
Concrete Mixer Truck Dimensions
-
Chassis brand:
-
HOWO SINO TRUCK
-
Driving type:
-
6x4
-
Brand:
-
SIONTRUK HOWO
-
Capacity:
-
2-25m3
-
Application:
-
Construction Industry
-
Feature:
-
Easy Operation
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
hengyou
-
Weight:
-
2280 kg
-
Dimension(L*W*H):
-
4690*2050*2320
-
Power:
-
BMT50-250
-
Product name:
-
4 Cubic Meters Concrete Mixer Truck
-
Keywords:
-
Loading Concrete Mxier Truck
-
Type:
-
4 Cylinders
-
Name:
-
Concrete Mixer Truck Dimensions
-
Chassis brand:
-
HOWO SINO TRUCK
-
Driving type:
-
6x4
-
Brand:
-
SIONTRUK HOWO
-
Capacity:
-
2-25m3
-
Application:
-
Construction Industry
-
Feature:
-
Easy Operation
Products Description
Features:
Mixing capacity: 2-10m3/batch
Mixing mechanism: the free mechanism, stirring according to the rotating movement of the mixing drum
Low mobility. The machine is usually fixed in place or pulled at a close distance.
Specialized for mixing slurry, mortar and flexible concrete. Combined with trucks to transport concrete over long
Feeding: using an excavator
Discharding: concrete mixture is discharged by reversing the mixing tank
|
Type
|
2m³
|
3m³
|
4m³
|
5m³
|
6m³
|
7m³
|
8m³
|
9m³
|
10m³
|
|
Geometric Volume
|
3.6m³
|
5.2m³
|
6.1m³
|
8.5m³
|
9.6m³
|
10.2m³
|
11.8m³
|
13.2m³
|
15m³
|
|
Diameter of Drum
|
1.6M
|
1.8M
|
1.8M
|
2.05M
|
2.05M
|
2.15M
|
2.2M
|
2.3M
|
2.3M
|
|
Angle of Inclination
|
13°
|
15°
|
15°
|
14°
|
14°
|
16°
|
16°
|
14°
|
14°
|
|
Overall Size
|
3750*1600*1810
|
4220*1800*2160
|
4610*1800*2215
|
4690*2050*2320
|
5100*2050*2432
|
5180*2150*2510
|
5374*2200*2573
|
5640*2300*2687
|
6120*2300*2742
|
|
Size of installing base
|
760*2750
|
800*3300
|
800*3600
|
800*3900
|
800*4200
|
800*4200
|
860*4530
|
860*4900
|
860*5300
|
|
Rotation Speed
|
0-10r/min
|
0-10r/min
|
0-10r/min
|
0-10r/min
|
0-10r/min
|
0-10r/min
|
0-10r/min
|
0-14r/min
|
0-14r/min
|
|
Hydraulic Oil cooler
|
16L
|
16L
|
16L
|
16L
|
18L
|
18L
|
18L
|
20L
|
20L
|
|
Total Weight
|
1200KG
|
1400KG
|
1500KG
|
2280KG
|
2330KG
|
2450KG
|
2670KG
|
2980KG
|
3210KG
|
