- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
G5
-
Model Number:
-
E-07-T-OD-2S-WP-COMP-LB-SL-VAC
-
Warranty:
-
12 Months
-
Product name:
-

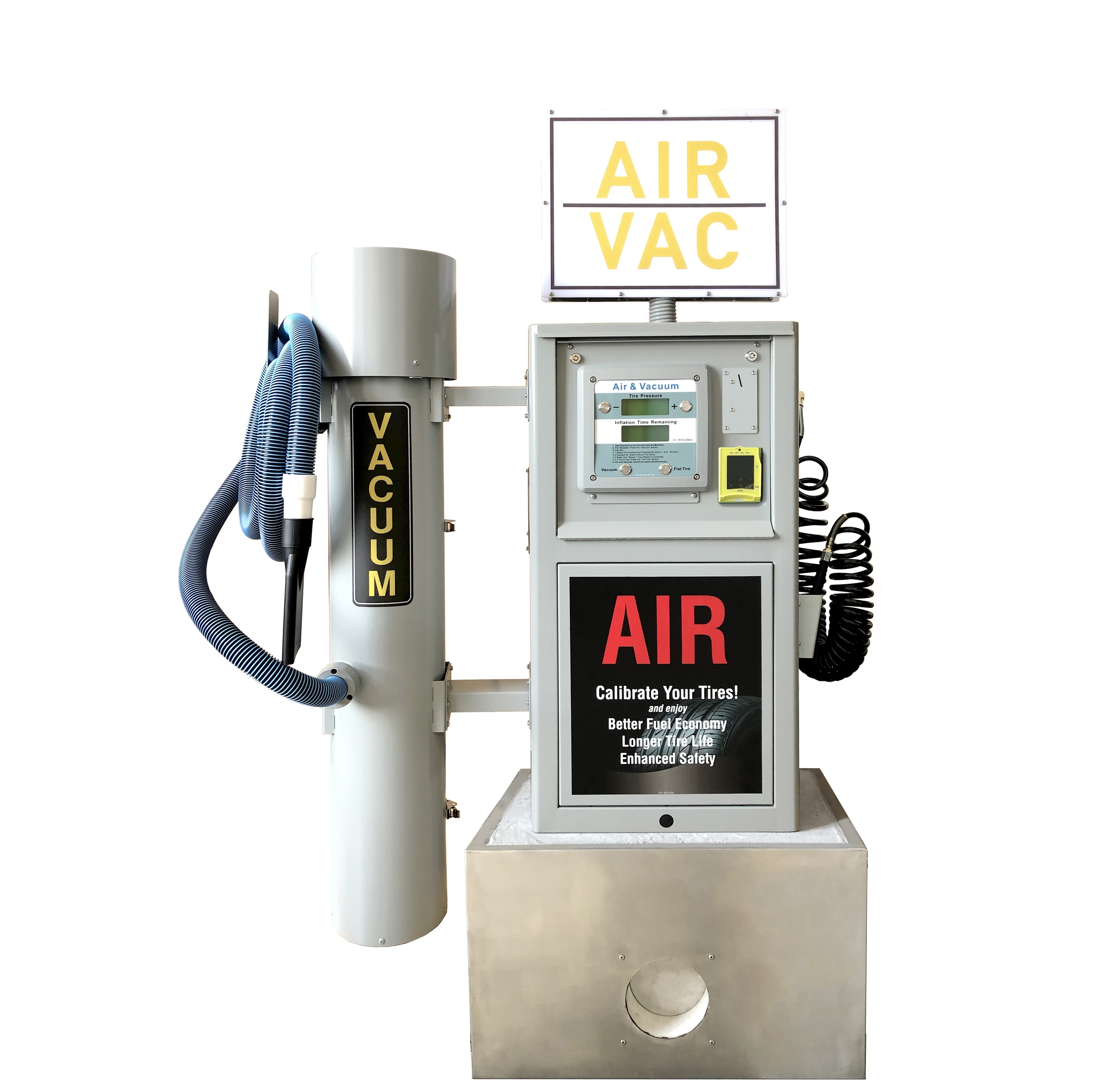

Coin-Operated Vacuum Machine & Digital Tyre Inflator
-
Product Model:
-
Product Model
-
Application:
-
Petroleum and Forecourt
-
Suit for:
-
Motorcycle/Car/Light Truck
-
Inflation Pressure Range:
-
5-75PSI/0.3-5bar/35-500kPa
-
Air Outlet:
-
1
-
Working Voltage:
-
100-240Vac
-
Swtich:
-
Waterproof Mechanical Switches
-
Accuracy:
-
±1PSI/0.07bar/7kPa
-
Display:
-
Backlight LCD Display
Quick Details
-
Car Fitment:
-
Mercedes - Europe, HONDA
-
Size:
-
990mm*500mm*400mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G5
-
Model Number:
-
E-07-T-OD-2S-WP-COMP-LB-SL-VAC
-
Warranty:
-
12 Months
-
Product name:
-
Coin-Operated Vacuum Machine & Digital Tyre Inflator
-
Product Model:
-
Product Model
-
Application:
-
Petroleum and Forecourt
-
Suit for:
-
Motorcycle/Car/Light Truck
-
Inflation Pressure Range:
-
5-75PSI/0.3-5bar/35-500kPa
-
Air Outlet:
-
1
-
Working Voltage:
-
100-240Vac
-
Swtich:
-
Waterproof Mechanical Switches
-
Accuracy:
-
±1PSI/0.07bar/7kPa
-
Display:
-
Backlight LCD Display
Product Description
Specification
| E-07-T-OD-2S-WP-COMP-LB-SL-VAC Coin-Operated Vacuum Machine & Digital Tyre Inflator with Built-in Air Compressor (Outdoor, Inflator IP66) | |
| Inflator Main Feature | |
| 1. Outdoor | |
| 2. The unit needs a coin/s input signal to activate | |
| 3. Built in oil-less air compressor | |
| 4. Suit for: Motorcycle, Car, Light Truck | |
| Inflator Technical Data | |
| Dimensions (Height*Width*Depth) | 990mm*500mm*400mm 38.9"*19.7"*15.7” |
| Packing Size (Height*Width*Depth) | 1180mm*730mm*510mm 46.4"*28.7"*20.1" |
| Net Weight | 74KG/162.8lbs |
| Gross Weight | 91KG/200.1lbs |
| Power Requirement | 220Vac 50Hz/110Vac 60Hz |
| Power Consumption (No Heater) | 950VA |
| Operating Temperature Range (No Heater) | 5°C/41°F to 45°C/113°F |
| Operating Range | 5-75PSI/0.3-5bar/35-500kPa |
| Inflator Accuracy | ±1PSI/0.07bar/7kPa |
| Resolution | 1PSI/0.1bar/5kPa |
| Units of Measurements | PSI/bar/kPa |
| Vacuum Technical Data | |
| Dimensions (Height*Width*Depth) | 1320mm*500mm*300mm 52.0"*19.7"*11.8” |
| Packing Size (Height*Width*Depth) | 1400mm*370mm*370mm 55.1"*14.6"*14.6" |
| Net Weight | 26KG/58.0lbs |
| Gross Weight | 31KG/69.0lbs |
| Power Requirement | 220Vac 50Hz/110Vac 60Hz |
| Power Consumption | 1350W |
| Operating Temperature Range | -20°C/-4°F to 45°C/113°F |
| Speed | 21000RPM |
| Inflator Specification | |
| 1. Auto-start inflation | 13. The coin/s remaining time will be displayed on the lower LCD |
| 2. Automatic zero drift adjustment | 14. Number of coins put through the machine can be displayed on the lower LCD when turn on the unit |
| 3. Remain at last setting | |
| 4. Audible and visual end of the cycle signal indicators | 15. Built in oil-less air compressor |
| 5. Large backlight LCD display | 16. Stainless steel cabinet |
| 6. Vandal resistant mechanical switches | 17. Light box |
| 7. 1 No *12M/39.3ft filling hoses |
18. Options available: ^ Heater: When the ambient temperature lower than 5°C/41°F, the heater should be supplied to the unit to ensure the internal air compressor and inflator keep in normal good working condition ^ Bank card reader ^ Concrete vault |
| 8. Locking access door with locks | |
| 9. Door recessed for extra strength and additional weatherproofing | |
| 10. The unit needs a coin/s input signal to activate | |
| 11. Number of coins to activate machine is adjustable | |
| 12. Amount of time per coin is adjustable | |
