Quick Details
-
Brand Name:
-
raymax
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
1350x1630x2500
-
Weight (T):
-
4.8 T
-
Motor Power (kw):
-
5.5 kw
-
Power Source:
-
Hydraulic
-
product name:
-

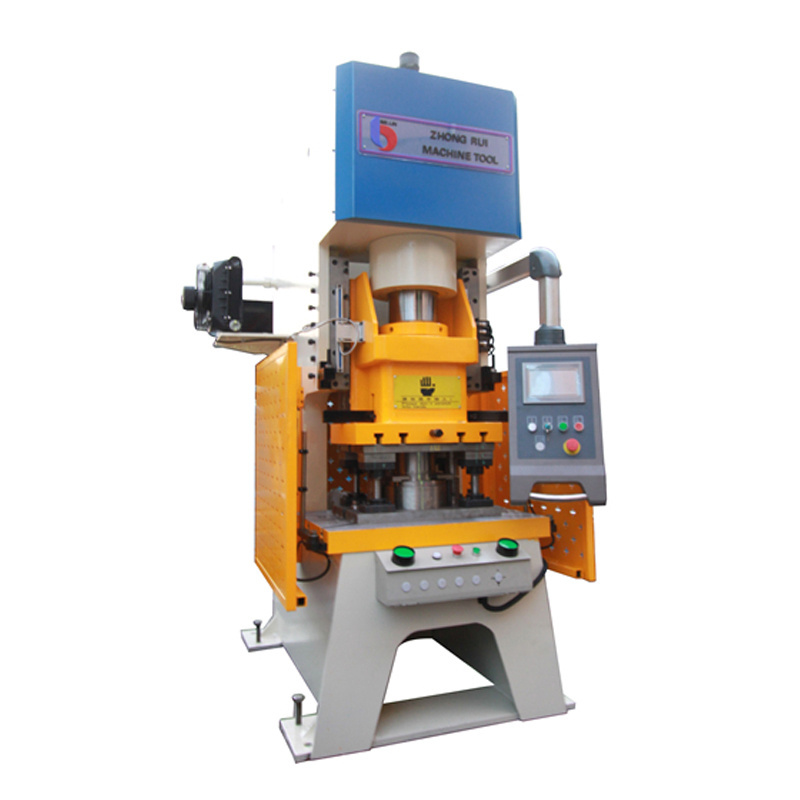

C-Frame Punching Press with Adjustable Stroke
-
Slipper Max Stroke:
-
180mm
-
Throat Depth:
-
310mm
-
Work Speed:
-
14mm/s
-
Slipper Under Side Size:
-
L-R 500mm F-B 400mm Die hole 60mm
-
Worktable Sze:
-
L-R 850mm F-B 600mm Die hole 180mm
-
Motor Power:
-
7.5/6KW
-
After Warranty Service:
-
Field maintenance and repair service
-
Nominal Force (kN):
-
250
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Return Force (kN):
-
2 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
raymax
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
1350x1630x2500
-
Weight (T):
-
4.8 T
-
Motor Power (kw):
-
5.5 kw
-
Power Source:
-
Hydraulic
-
product name:
-
C-Frame Punching Press with Adjustable Stroke
-
Slipper Max Stroke:
-
180mm
-
Throat Depth:
-
310mm
-
Work Speed:
-
14mm/s
-
Slipper Under Side Size:
-
L-R 500mm F-B 400mm Die hole 60mm
-
Worktable Sze:
-
L-R 850mm F-B 600mm Die hole 180mm
-
Motor Power:
-
7.5/6KW
-
After Warranty Service:
-
Field maintenance and repair service
-
Nominal Force (kN):
-
250
Y27-25T hydraulic press /C-Type mini hydraulic press Hydraulic Deep drawing
Machine Details
| Type | 63T | 80T | 100T | 125T | 160T | 200T | 250T | |
| Nominal Pressure (KN) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | |
| Stroke Adjuster (mm) | 10-120 | 10-140 | 10-150 | 10-150 | 10-180 | 10-200 | 10-200 | |
| Slipper max.stroke (mm) | 130 | 140 | 180 | 180 | 180 | 200 | 200 | |
| Loading Height (mm) | 160-270 | 180-280 | 200-320 | 220-320 | 260-420 | 280-430 | 280-440 | |
| The Number Of Trips (l/min) | 30-60 | 30-60 | 20-50 | 20-50 | 20-50 | 20-45 | 20-45 | |
| Speed To Quickly Move Downwards (m/s) | 220 | 220 | 210 | 250 | 230 | 240 | 240 | |
| Work Speed (m/s) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Back Stroke Speed (m/s) | 180 | 160 | 160 | 150 | 150 | 140 | 130 | |
| Workbench | left and right (mm) | 650 | 760 | 820 | 840 | 940 | 940 | 1000 |
| front and back (mm) | 450 | 500 | 580 | 580 | 700 | 750 | 800 | |
| blanking hole (mm) | 150 | 180 | 180 | 200 | 220 | 250 | 2500 | |
| Throat Depth (mm) | 260 | 260 | 300 | 310 | 380 | 400 | 400 | |
| Slider | front and back (mm) | 320 | 260 | 400 | 400 | 420 | 600 | 700 |
| die handle (mm) | 50 | 60 | 60 | 60 | 70 | 70 | 70 | |
| left and right (mm) | 320 | 350 | 610 | 610 | 720 | 720 | 800 | |
| Motor Power (KN) | 5.5 | 7.5 | 11 | 11 | 15 | 15 | 22 | |
| Machine Dimensions | left and right (mm) | 1250 | 1370 | 1350 | 1600 | 1700 | 1800 | 1900 |
| front and back (mm) | 1450 | 1630 | 1630 | 1850 | 2000 | 2100 | 2200 | |
| height (mm) | 2270 | 2500 | 2600 | 3400 | 3500 | 3600 | 3750 | |
