Quick Details
-
Brand Name:
-
Dacai
-
Type:
-
TFT
-
Resolution:
-
320*240
-
Active Area:
-
163.4mm*123.2mm
-
Color:
-
65K colour, 16-bit RGB
-
Touch panel:
-
resistive touch
-
Voltage:
-
5V(error±0.2V)
-
Product demension:
-
199.5mm*148.8mm*22.7mm
-
Communicate Interface:
-
RS232/TTL(default 232 level)
-
WiFi:
-
Not support
-
Brightness:
-
300
Quick Details
-
Display Size:
-
2.8 inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
DC32240W028_2V00_0T
-
Brand Name:
-
Dacai
-
Type:
-
TFT
-
Resolution:
-
320*240
-
Active Area:
-
163.4mm*123.2mm
-
Color:
-
65K colour, 16-bit RGB
-
Touch panel:
-
resistive touch
-
Voltage:
-
5V(error±0.2V)
-
Product demension:
-
199.5mm*148.8mm*22.7mm
-
Communicate Interface:
-
RS232/TTL(default 232 level)
-
WiFi:
-
Not support
-
Brightness:
-
300
Product Description

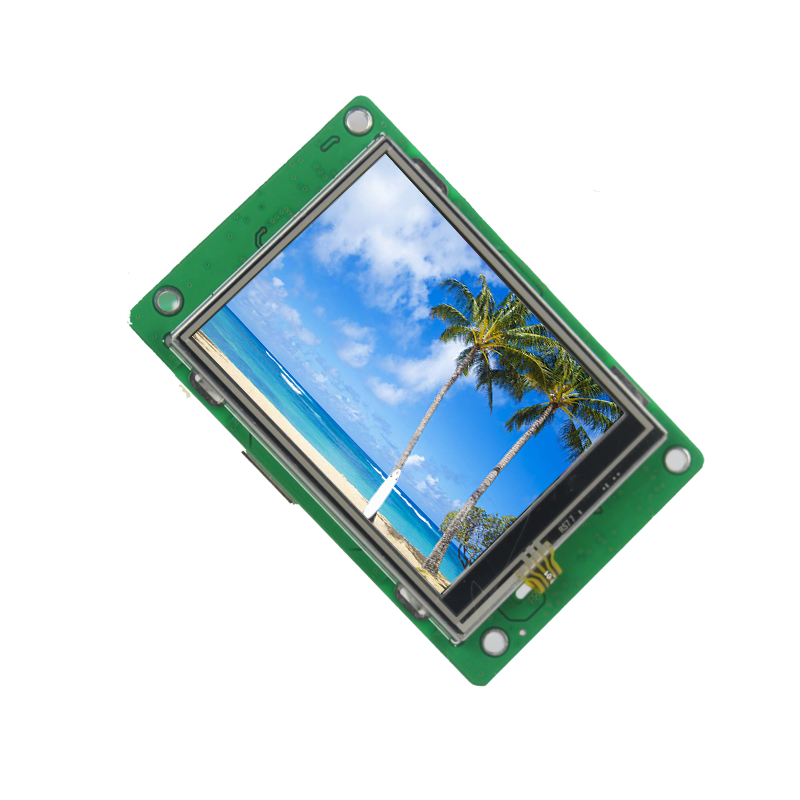

DC32240W028_2V00_0T is a 2.8 inch resistive touch interface screen with 320*240 resolution.(The package will not contain speaker and battery,due to international air express policy,thanks for understanding.)
|
LCD Display |
|
|
Display Type |
TFT LCD |
|
Backlight Tube |
LED |
|
Brightness(cd/m²) |
300 |
|
Backlight Life(H) |
>20,000 |
|
Contrast Ratio |
250:1 |
|
Viewing(L/R/T/B) |
55/55/55/30 |
|
Product Specification |
|
|
Product Model |
DC32240W028_2V00_0T (RS232, Resistive touch) DC32240W028_2V00_0N (RS232, Non-touch) |
|
Product Series |
IOT Series |
|
Processor |
400MHz 32-bit dual-core processor |
|
Operation System |
Embedded real-time operating system (FreeRTOS) |
|
Protocol Type |
Default Dacai configuration insructionsets,The host computer can be configured to run MODBUSRTU , XGUS protocol |
|
Size |
2.8 inch |
|
Resolution |
320*240 |
|
Installation Display |
Support 0°/90°/180°/270°rotate display |
|
Memory Space |
128Mbit |
|
Font Library |
Built-in vector font, edge anti-aliasing , including ASCII,GBK,GB2312 and UNICODE libraries. A ny computer font display is c ustomizable |
|
Image Storage |
Support JPEG,PNG (semi-transparent/full transparent)compression,support for any size image storage.Accumulate to store about 807 full-screen images ( calculated by size 132KB/sheet,BMP format is not recommended).The image compression ratio is different,this value will float up and down . |
|
Color |
65K colour,16-bit RGB |
|
Voltage |
5V(error ±0.2V) |
|
Power Consumption |
Syandby: 0.1 W; Darkest backlight non-speaker :0.8W; rightest backlight non-speaker: 1.15 W |
|
Communicate Interface |
RS232/TTL(default 232 level) |
|
Communicate Baudrate |
RS232:1200~ 921600bps , typical Braudrate115200 |
|
Interface Specification |
Default XH2.54 -8P,FPC1.0-10P is optional |
|
Image Download |
U disk/UART/WiFi(U disk must be in FAT32 format, and has never been a computer system boot disk) |
|
Real-time RTC |
support countdown,timer,year,month,day,etc.displaying |
|
Active Area of Displaying(AA) |
L×W = 163.4mm×123.2mm |
|
Product Dimension( L*W*H ) |
L×W×H = 199.5mm×148.8mm×22.7mm |
|
Host computer software |
VisualTFT® |
|
AV Input |
NO Supported |
|
Audio Playing |
NO Supported |
|
Specification of Audio Connector |
NO Supported |
|
Video Playing |
MP4 vi deo format.If a video file with a resolution of 800*600 , a video bit rate of 3000Kbps, an audio code rate of 166Kbps, and a frame rate of 25Hz,it occupies 21.9MB/min |
|
WIFI |
NO Supported |
|
Three Anti-paint Process |
None |
