New style China skid steer/mini skid steer loader with attachments
New style China skid steer/mini skid steer loader with attachments
New style China skid steer/mini skid steer loader with attachments
New style China skid steer/mini skid steer loader with attachments
New style China skid steer/mini skid steer loader with attachments
New style China skid steer/mini skid steer loader with attachments
New style China skid steer/mini skid steer loader with attachments
New style China skid steer/mini skid steer loader with attachments

New style China skid steer/mini skid steer loader with attachments

FOB Reference Price: Get Latest Price
≥1 Sets
US $1680
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Dimension(Long * Breadth * High):
2319mmX1030mmX1300mm
Machine Weight:
960 kg
Bucket capacity:
0.1CBM
Marketing Type:
Product 2023 for sale
Rated Power (KW):
18.2KW(23HP)
Rotating speed (rpm):
3600
Noise (Db):
≤95
Pressure (Mpa):
17
Operating Load:
390 Kg
bucket Capacity:
0.1 m³
Max Lifting Force:
450 Kg
Travel Speed:
0-5.5 Km/h
Operating Weight:
960 Kg
Brand:
STR

Quick Details

Engine Brand:
RATO / Briggs & Stratton
Power:
18.2KW
Brand Name:
STR
Place of Origin:
Shandong, China
Dimension(Long * Breadth * High):
2319mmX1030mmX1300mm
Machine Weight:
960 kg
Bucket capacity:
0.1CBM
Marketing Type:
Product 2023 for sale
Rated Power (KW):
18.2KW(23HP)
Rotating speed (rpm):
3600
Noise (Db):
≤95
Pressure (Mpa):
17
Operating Load:
390 Kg
bucket Capacity:
0.1 m³
Max Lifting Force:
450 Kg
Travel Speed:
0-5.5 Km/h
Operating Weight:
960 Kg
Brand:
STR

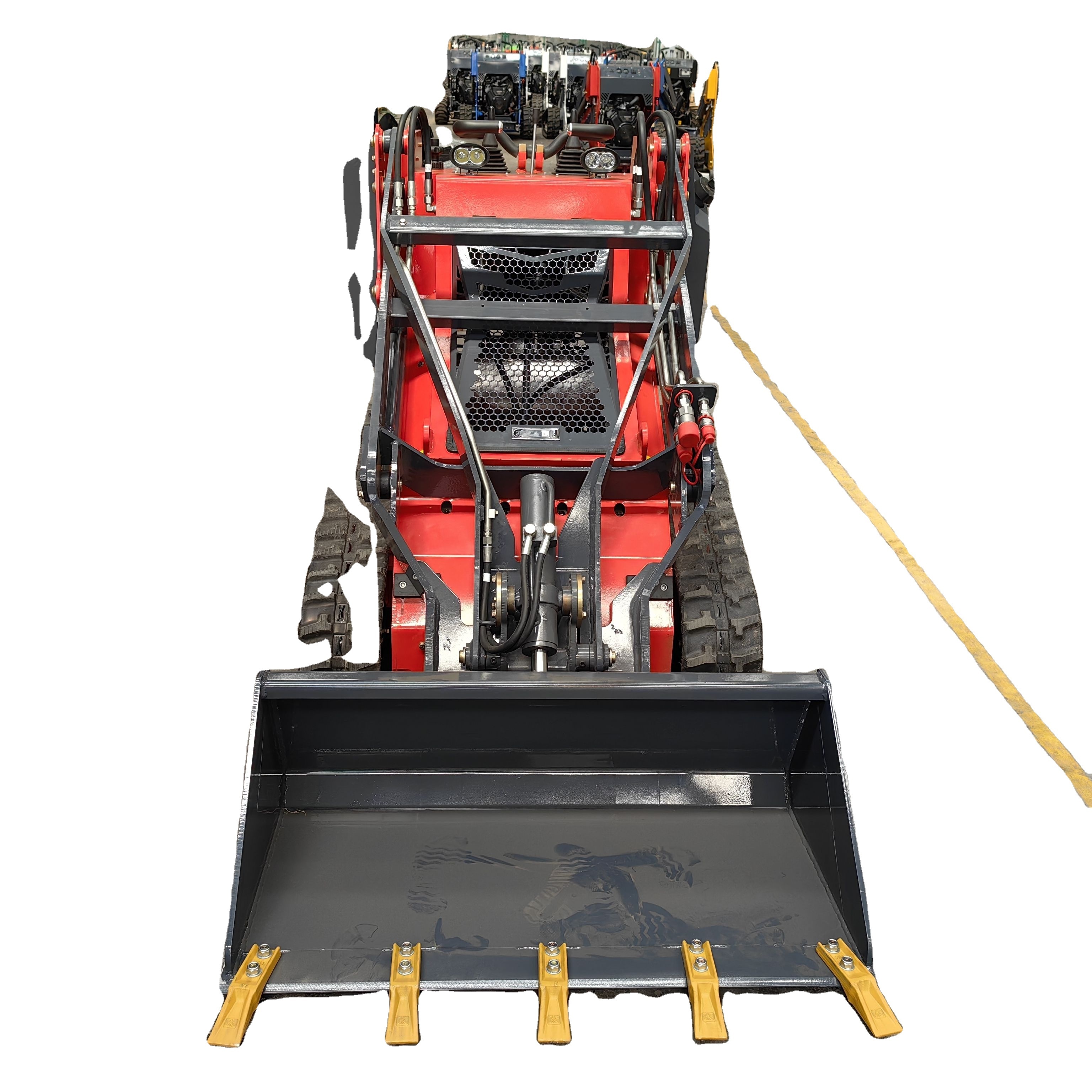

New style China skid steer/mini skid steer loader with attachments

This mini skid steer loader is flexible, easy to operate, Its biggest highlight is the greatly improved thermal performance.
Epa/Euro 5/ CE certified with an imported Briggs&Stratton engine or Honda Engine, good price, and a full range of buckets with automatic bucket leveling as standard. And it adopts the concealed design of big boom oil cylinder.It is widely used in
agriculture, construction and other fields.
PRODUCT SPECTFICATION
New style China skid steer/mini skid steer loader
1. Automatic bucket leveling function.
2.The whole system is equipped with three pumps and three valves as standard, high flow
rate.
3. The track is triangle track, the grounding ratio is small.
4. The hydraulic oil radiator is designed separately from the engine compartment, so the hydraulic oil temperature is not affected by the heat generated by the engine.
5. The oil tank is arranged on the left side, and the engine is installed underneath the oil tank, so that the engine can absorb sufficient oil and the rotation speed is stable, which improves the performance of the loader.
6. Most of the hydraulic oil pipes are replaced by iron pipes from the original rubber pipes, which increases the life span and also improves the heat dissipation performance of the hydraulic system.
7. The front of the engine has increased the guard, which plays a protective role.
8. The control panel adopts stainless steel brushing technology, high-end and upscale.
9. Foot pedal with cushioning device to ease the operator's bumps, with non-slip design and can be folded upward, easy to transport.
ENGINE PARAMETERS
HONDA HGX690
Briggs Stratton 3864
Rato R740
Engine Power
16.5Kw/22.1Hp
18.2Kw/23Hp
15.5KW
Displacement
688 cc

670 cc
Number of cylinders
2

2
Rotation speed
3600 rpm
3600 rpm
3600 rpm
Maximum torque
38.6
50
45
Fuel
Gasoline 95#
Gasoline 95#
Gasoline 95#
Fuel tank capacity
20L
20L
20L
PRODUCT PARAMENTERS
No
Item
Metric
U.S.
1
Max working height (H3)
2474 mm
97.4inch
2
Max pin height (H2)
1977 mm
77.83 inch
3
Max Dumping height (H1)
1275 mm
50.20 inch
4
Max Dumping distance(E)
175 mm
6.98inch
5
Max Dumping Angle (a3)
70°
70°
6
Rollback of bucket on ground (a2)
25°
25°
7
Departure angle (a1)
23°
23°
8
Total height (H)
1300 mm
51.18 inch
9
Ground clearance (F)
120 mm
4.72inch
10
Wheel base (L1)
890 mm
35.04 inch
11
Overall length without bucket (L3)
1767 mm
69.57 inch
12
Total width (B2)
1030 mm
40.55 inch
13
Bucket width (B1)
1070 mm
42.13 inch
14
Total length with bucket (L)
2319 mm
91.30 inch
15
Turn radius forward turning (R)
1440 mm
56.69 inch
16
Operating Load
390 Kg
859.8 Lb
17
Bucket Capacity
0.13 m³
4.59 ft³
18
Max Lifting Force
450 Kg
992 Lb
19
Travel Speed
0-5.5 Km/h
2.8 mlie/h
20
Operating Weight
1160 Kg
2557 Lb
STR450 Mini Skid Steer Loader
STR450 Mini Skid Steer Loader
OUR ADVANTAGES

Optional Engine B&S Honda Rato.B&S is hot selling with two-cylinder engine, 23Hp, three-year warranty

The Attachment adopts international standard quick-change, easy to disassemble and replace.

Equipped with three pumps and three valves.Attachment large flow rate, up to 55 liters / per minute, basically any attachment needs flow can meet

When the hydraulic oil temperature exceeds 70 degrees, the fan automatically receives a signal from the sensor to dissipate the heat.
DETAILS IMAGES
A CORNER OF THE FACTORY AND SHIPPING
Attachment Parameters
Tiller
Mixer
Auger+Auger drill
Sweeper with bucket
Angel blade
Snow blower
Backhoe
Grapple
Trench filler
Log Splitter/Branch crusher
Stump grinder
Stump grinder
Trencher
Fork
Brush cutter
Lawn mower
