Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2530*1150*1995
-
Weight (KG):
-
4500 kg
-
Load capacity:
-
2500kg
-
Load Center:
-
500mm
-
Wheel base:
-
1600mm
-
Engine:
-
Chinese or Imported engine
-
Cab with A/C:
-
Optional
-
Ground clearance:
-
120mm
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Online support, ,...
-
fork extention:
-
optional
-
Certification:
-
CE/ISO9001
Quick Details
-
Min. Lifting Height:
-
0mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2530*1150*1995
-
Weight (KG):
-
4500 kg
-
Load capacity:
-
2500kg
-
Load Center:
-
500mm
-
Wheel base:
-
1600mm
-
Engine:
-
Chinese or Imported engine
-
Cab with A/C:
-
Optional
-
Ground clearance:
-
120mm
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Online support, ,...
-
fork extention:
-
optional
-
Certification:
-
CE/ISO9001

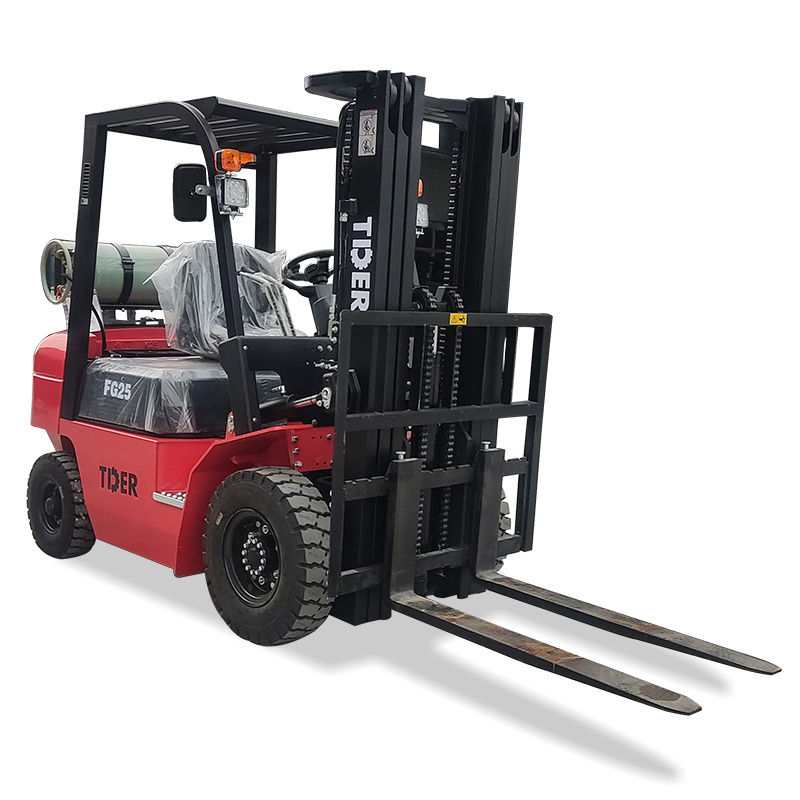

TDER LPG&Gasonline Forklifts
Products Description
2. These engines are designed for forklift use with low fuel consumption and low noise and vibration, all of which improve the overall performance of the forklift.
3. The excellent braking system ensures the safe operation of the forklift, and the steering axle provides timely and accurate feedback to the driver when turning.
4. The cab is rationally designed in terms of space, the layout of the steering column and instrument display, document storage and suspension seats.
5.The wide-view mast provides the operator with a wide field of vision, improving work efficiency and ensuring safety.
All these features guarantee the stability and driving safety of the forklift.
Product Paramenters
|
Model
|
|
FG15
|
FG20
|
FG25
|
FG30
|
|
Power Type
|
|
LPG & Gasoline
|
LPG
|
LPG
|
LPG & Gasoline
|
|
Rated Capacity
|
kg
|
1500
|
2000
|
2500
|
3000
|
|
Load Centre
|
mm
|
500
|
500
|
500
|
500
|
|
Lift Height
|
mm
|
3000
|
3000
|
3000
|
3000
|
|
Fork Size
|
mm
|
920×120×35
|
1070×120×40
|
1070×120×40
|
1070×125×45
|
|
Ground Clearance
|
mm
|
110
|
80
|
80
|
140
|
|
Overall Width
|
mm
|
1086
|
1110
|
1110
|
1225
|
|
Overhead Guard Height
|
mm
|
2040
|
2080
|
2080
|
2090
|
|
Turning Radius
|
mm
|
2055
|
2110
|
2110
|
2440
|
|
Wheelbase
|
mm
|
1400
|
1400
|
1400
|
1700
|
|
Self weight
|
kg
|
2820
|
3445
|
3655
|
4300
|
|
Battery
|
V/Ah
|
12/80
|
12/80
|
12/80
|
12/80
|
|
Engine
|
|
K21
|
K25EPA
|
K25EPA
|
K25
|
|
|
|
GCT (NISSAN)
|
GCT (NISSAN)
|
GCT (NISSAN)
|
GCT (NISSAN)
|
|
|
kw
|
31.2/2250
|
42/2700
|
42/2700
|
35.6/2100
|
|
|
N·m
|
143.7/1600
|
185/1350
|
185/1350
|
176.5/1600
|
|
|
|
4
|
4
|
4
|
4
|
|
|
mm
|
89×83
|
89×100
|
89×100
|
89×100
|
|
|
cc
|
2065
|
2488
|
2488
|
2488
|
|
|
L
|
45
|
55
|
55
|
60
|
