Quick Details
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
850*580*900mm
-
Power (kW):
-
3
-
Weight (KG):
-
115
-
Bending Range:
-
rb:6-25mm db:6-22mm
-
bending speed:
-
28pcs/m
-
Motor Power:
-
3KW
-
Automation:
-
Manual
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
Super Promotions
-
Brand Name:
-
ESB Machinery
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
850*580*900mm
-
Power (kW):
-
3
-
Weight (KG):
-
115
-
Bending Range:
-
rb:6-25mm db:6-22mm
-
bending speed:
-
28pcs/m
-
Motor Power:
-
3KW
-
Automation:
-
Manual
Products Description

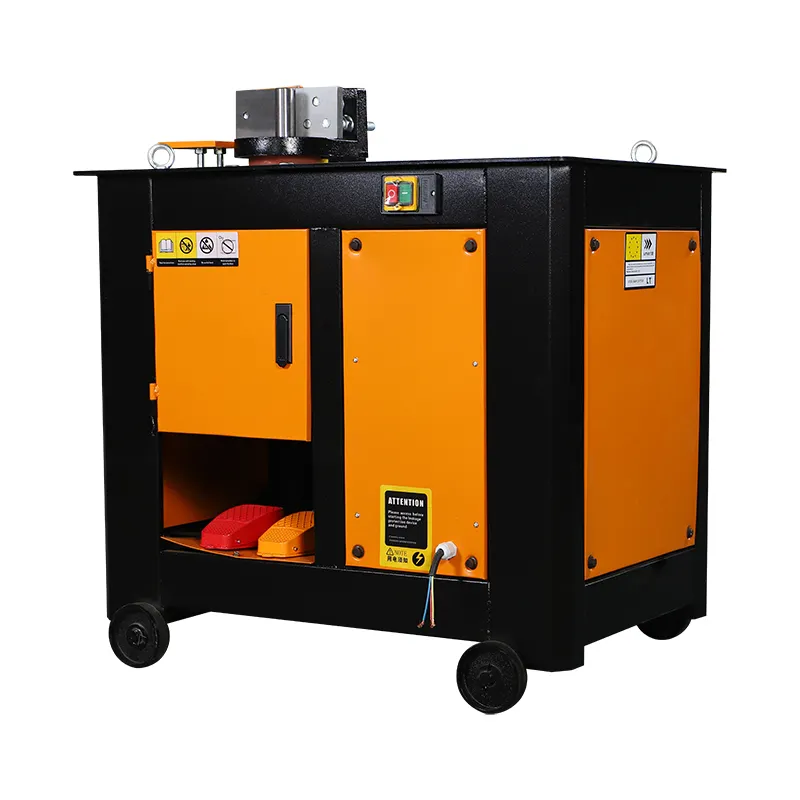

Steel bar stirrup bending machine
The steel bar bending machine belongs to an improvement on the structure of the steel bar bending machine. Automatic CNC steel bar hoop bending machine, CNC steel bar hoop bending machine, steel bar hoop bending machine, consists of two sets of horizontal and vertical adjustable straightening wheels, combined with 4 traction wheels, driven by imported servo motors to ensure the Straighten for best precision. One of the steel processing machinery.
Product Paramenters
|
Model
|
GF20
|
GF25
|
GF32
|
||
|
Bending Range(mm)
|
Round bar： 6-20mm
Deformed bar: 6-18mm
|
Round bar：6-25mm
Deformed bar:6-22mm
|
Round bar：6-32mm
Deformed bar: 6-28mm
|
||
|
Bending Frequency
|
28pcs/M
|
28pcs/M
|
28pcs/M
|
||
|
Motor Power
|
2.2KW
|
3KW
|
3KW
|
||
|
Motor Speed
|
1440rpm
|
1440rpm
|
1440rpm
|
||
|
Input Voltage
|
Three phase 220v/380v/415v or customized
|
|
|
||
|
Overall Size
|
800*500*500mm
|
850*550*850mm
|
780*7800*750mm
|
||
|
Weight(KGS)
|
280
|
320
|
370
|
||
|
Driving Mode
|
Switch Control Or Digital Control
|
|
|
||
Structure
Product Details
Operating Console
The full-steel solid operating console makes it a long service life,and the movable steel strip and disk make the machine can change angle easily
Push Button Switch
Use the push button switch to control the use of the machine, the angle adjustment is more convenient
Visual gearbox
You can see the gears and gear oil condition at a glance by visualizing the gearbox
Function of foot switches
Sliver alloy contactor,convenient and reliable.And on the use of the foot switch,automatic return, fast return and high security
Application
