- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BOLIN-s447
-
Brand Name:
-
Bolin
-
Length:
-
10m,30m,30.5m,etc
-
Width:
-
0.914m,1m,1.2m, etc
-
Mesh count:
-
1-3200 Mesh
-
Hole shape:
-
Square Hole
-
Shape:
-
Can be cut into round or square shape
-
Feature:
-
Acid resistance,Alkali resistance,Temperature resistance
-
Surface:
-
Smooth
-
Sample:
-
Free and Avaliable
-
Production Experience:
-
20 years
-
Business type:
-
Manufacturer, Trading Company
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Filters
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
BOLIN-s447
-
Brand Name:
-
Bolin
-
Length:
-
10m,30m,30.5m,etc
-
Width:
-
0.914m,1m,1.2m, etc
-
Mesh count:
-
1-3200 Mesh
-
Hole shape:
-
Square Hole
-
Shape:
-
Can be cut into round or square shape
-
Feature:
-
Acid resistance,Alkali resistance,Temperature resistance
-
Surface:
-
Smooth
-
Sample:
-
Free and Avaliable
-
Production Experience:
-
20 years
-
Business type:
-
Manufacturer, Trading Company

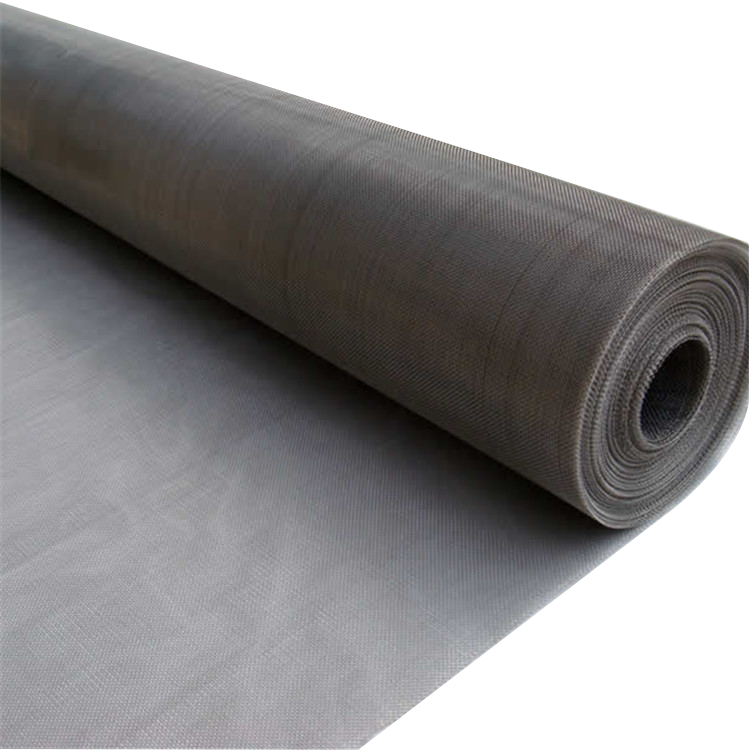

5 10 20 25 50 100 micron ultra fine 304 316 316L stainless steel wire mesh/net/filter cloth
1. Details
| material |
stainelss steel 304 316 316L 430 310S 904 904L 2205 2507 |
| wire diameter | 0.025-2.03mm |
| weaving type |
plain weave,
twill weave,dutch weave,etc.
|
| mesh counts |
Plain weave can be woven up to 400 mesh. Twill weave can be woven from 400 to 635mesh. Dutch weave can be woven up to 3200mesh |
| technique | woven wire mesh |
| mesh rolls size | 1x30m 2x30m 1.524x30m 0.914x30m etc. |
| surface | smooth |
| hole shape | square |
| feature | magnetic,acid resistance,alkali resistance,temperature resistance |
| Delivery Detail |
7-15 days after receiving the 30% deposit or as required
|
2.Size
|
stainless steel wire mesh |
|||||
|
Mesh/Inch |
Wire diameter
|
Aperture
|
Mesh/Inch |
Wire diameter
|
Aperture
|
|
1 mesh |
5.00×5.00 |
20.40 |
18 mesh |
0.35×0.35 |
1.06 |
|
2 mesh |
1.80×1.80 |
10.90 |
20 mesh |
0.30×0.30 |
0.97 |
|
3 mesh |
1.60×1.60 |
6.87 |
30 mesh |
0.25×0.25 |
0.60 |
|
4 mesh |
1.20×1.20 |
5.15 |
40 mesh |
0.21×0.21 |
0.43 |
|
5 mesh |
1.00×1.00 |
4.08 |
50 mesh |
0.19×0.19 |
0.32 |
|
6 mesh |
0.80×0.80 |
3.43 |
60 mesh |
0.15×0.15 |
0.27 |
|
7 mesh |
0.70×0.70 |
2.93 |
70 mesh |
0.14×0.14 |
0.22 |
|
8 mesh |
0.65×0.65 |
2.53 |
80 mesh |
0.12×0.12 |
0.20 |
|
10 mesh |
0.60×0.60 |
1.94 |
100 mesh |
0.10×0.10 |
0.154 |
|
12 mesh |
0.50×0.50 |
1.62 |
120 mesh |
0.08×0.08 |
0.132 |
|
14 mesh |
0.45×0.45 |
1.36 |
150 mesh |
0.065×0.065 |
0.104 |
|
15 mesh |
0.40×0.40 |
1.29 |
200 mesh |
0.050×0.050 |
0.077 |
|
16 mesh |
0.40×0.40 |
1.19 |
250 mesh |
0.040×0.040 |
0.062 |
3. Weave Type
|
OEM |
Yes |
|
Special Sizes or Shape |
Yes |
|
Customized packing |
Yes |
|
Sample |
Can be offered or Made |
|
Delivery time |
7-20 days after received the advance payment |
|
Payment terms |
T/T, Western Union, PayPal, Escrow, L/C,etc |
|
Optional Way of Transportation |
Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EMS |
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram
