Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EMC
-
Model Number:
-
EMC3011B
-
Main body shell:
-
Zinc die cast housing
-
Frequency:
-
5-2400MHz
-
Gain:
-
20dB ±2 dB
-
Return Loss::
-
12dB
-
Working voltage:
-
DC10-20V
-
Power pass:
-
500mA
-
Warranty:
-
2 Years
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EMC
-
Model Number:
-
EMC3011B
-
Main body shell:
-
Zinc die cast housing
-
Frequency:
-
5-2400MHz
-
Gain:
-
20dB ±2 dB
-
Return Loss::
-
12dB
-
Working voltage:
-
DC10-20V
-
Power pass:
-
500mA
-
Warranty:
-
2 Years

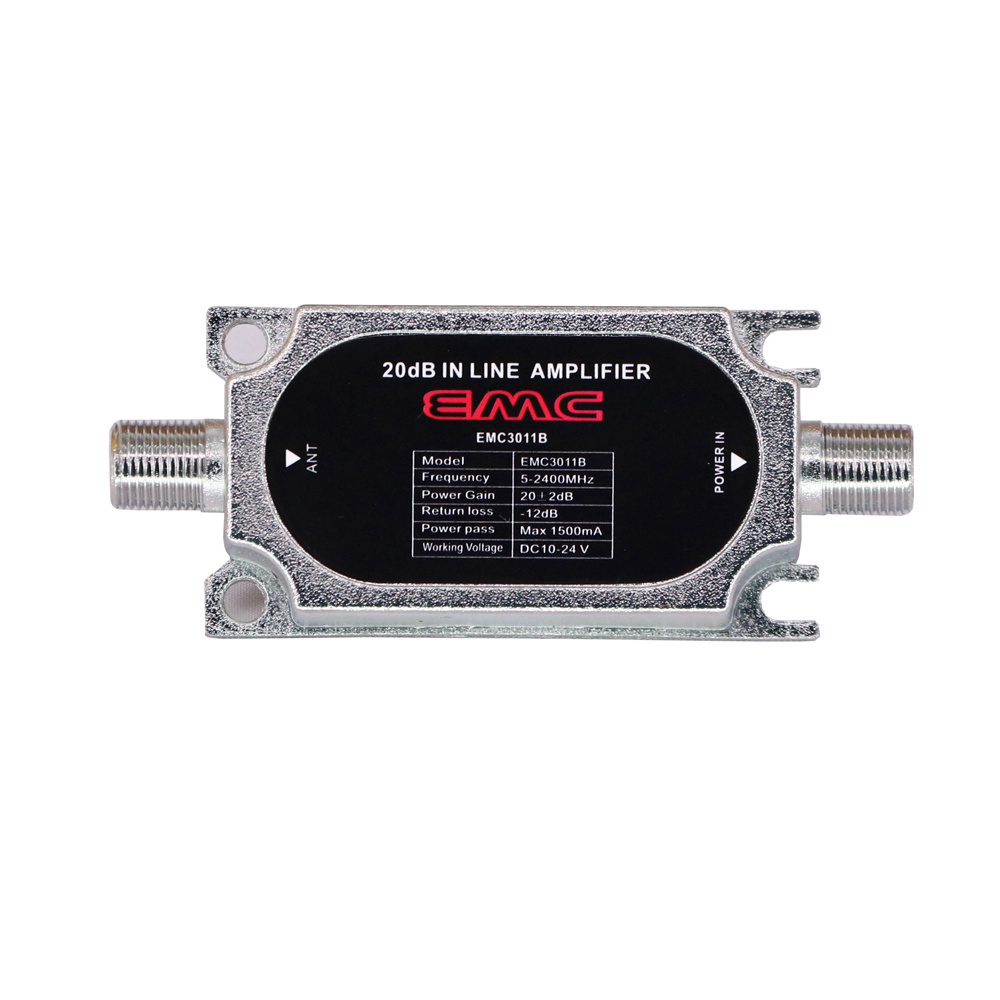

EMC3011B 20dB IN Line Amplifier
Features:
1.Zinc die cast housing.
2.
Line gain amplifier for user to LNB antenna cable or user to MultiSwitch cable
3.Powered by the receiver via coaxial cable
4.500mA power pass for multiswitch or LNB operation requirement
5.
Products using silica gel seal back cover do waterproof processing,
Specifications:
| Product model | EMC3011A | EMC3011B | EMC3011C |
| Input port | 1 | 1 | 1 |
| Output port | 1 | 1 | 1 |
| Frequency Range: | 5-2400MHz | 5-2400MHz | 5-2400MHz |
| Gain | 10 ±2dB | 20 ±2dB | 30 ±2dB |
| Return loss | 10dB | 12dB | 12dB |
| DC Current Consumption: | 18(mA) | 20(mA) | 23(mA) |
| DC power pass : | 500mA | ||
| Working Voltage: | 12-20(V) | ||
| Working temperature: | -40~80 (℃) | ||
| Product size: | 82X34X17mm | ||
| Packing: | 200PCS/CTN (34x34x26 CM) | ||
Our factory series of similar products
Trade patterns:
1.Normal lead time: 3days for sample order;10~20 days for production order.
2.Payment: T/T,
3.DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available
4.Shipping port: Guangzhou/ ShenZhen/ ZhuHai.
5.Payment condition: 30% before production, 70% before delivery.
