Quick Details
-
Power Source:
-
Manual
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Feiyue
-
Model Number:
-
FY-10118, 20 inch
-
Product name:
-
Hot Sale PP sediment cartridge Cotton Chemical Water Filter Price
-
Certification:
-
ISO9001,CE, CE, RoHS
-
Key words:
-
PP String Wound Cotten Chemical Water Filter
-
Micron rate:
-
1,5,10,25
-
Material:
-
100% Fresh Polypropylene
-
Cerification:
-
NSF
-
Usage:
-
Water Purifier System/Pre Filter/RO System
-
I.D.:
-
28,30mm
Quick Details
-
After-sales Service Provided:
-
None
-
Warranty:
-
None
-
Application:
-
Outdoor, Commercial, Household
-
Power Source:
-
Manual
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Feiyue
-
Model Number:
-
FY-10118, 20 inch
-
Product name:
-
Hot Sale PP sediment cartridge Cotton Chemical Water Filter Price
-
Certification:
-
ISO9001,CE, CE, RoHS
-
Key words:
-
PP String Wound Cotten Chemical Water Filter
-
Micron rate:
-
1,5,10,25
-
Material:
-
100% Fresh Polypropylene
-
Cerification:
-
NSF
-
Usage:
-
Water Purifier System/Pre Filter/RO System
-
I.D.:
-
28,30mm

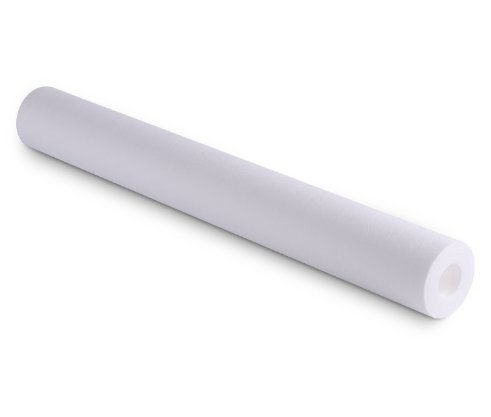

0.5 1 5 micron ppf spun sediment iron removal water filter cartridge pp filter
Product Introduction
1,Take innoxious, flavourless 100% pure polypropylene as the materials ,through molten and jet then receive to tubular filter cartridge .
There are no other chemical contents come in during the filtrating,it can be used in drinking water and beverage directly without any dissolved phenomenon .
2,Against bacteria and chemicals.Establish an accuracy gradients from inside to outside.The outside raw filter surface ensure the enough area to receive the pollute ,decrease the filtration resistance,supply enough regidity struture.The inside accurate surface checking the minuteness grain to assure the filtrate accurancy and enhance the adsorbility at the same time.
3,Polypropylene fiber water filter cartridge can filtrating the sand ,rust and other big grain substance in water .Anti acid , alkali,rot as well as most organic and inorganic solvent resistent (not include chlorosulfonic acid,concentrated nitric acid and other Strong oxidants).Applicable to water treatment for industries such as food, medical,IT,electroplating,chemical industry , petrolum and etc.
PP meltblown filter filter, using non-toxic odorless polypropylene particles, after heating and melting, spinning, drawing, forming a tubular filter accept made; if the raw material mainly polypropylene, can be called PP melt blown filter.
Product Specification
| Materials Of Construction | Filter Media | Melt Blown Polypropylene |
| Micron Rating | 1.0,5.0,10,20,50,70um | |
| Inner core | Polypropylene or Coreless | |
| O-rings/gaskets | Silicone, Nitrile, EPDM, Viton, Teflon | |
| Filtration Efficiency | >=80% | |
| Cartridge Dimensions | Outer Diameter | 63mm |
| Inner Diameter | 28mm(1.10'') | |
| Length(based on DOE end caps) | 10" 20'' 30'' 40'' | |
| Filtration Area(m2) | 0.4 m 2 per 10'' | |
| Operating Conditions |
Normal Operating Temperature |
Up to 52℃ (122℉) |
| Max.Operating Temperature | 80℃ (176℉) at P≤1.0 bar (14.5psi) | |
| Normal Flow direction | 4.0 bar (60 psi) at 25℃ (77℉) | |
| Reverse flow direction | 2.0 bar (30psi) at 25℃ (77℉) | |
| PH Value compatibility | 1-13 | |
| Sterilization | Not recommended |
