Quick Details
-
Brand Name:
-
TIDER
-
Fork Length:
-
1150mm
-
Fork Width:
-
155mm
-
Overall Dimensions:
-
1570*786*1597mm
-
Weight (KG):
-
250 kg
-
Type:
-
Powered Pallet Truck
-
Product Name:
-

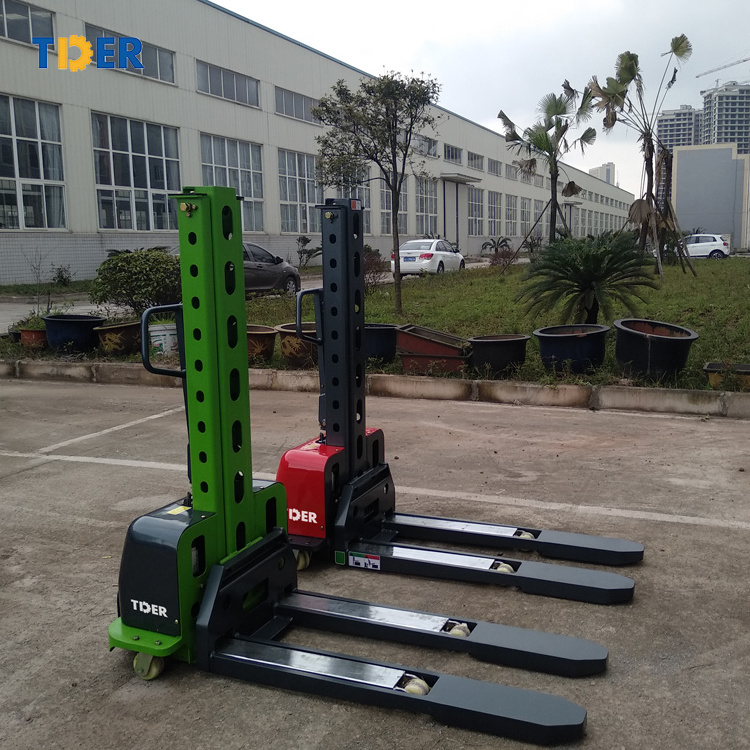

500kg self loading stacker 0.5 ton electric self lift stacker
-
Power type:
-
AC Power
-
Battery:
-
45Ah
-
Overall length:
-
1570mm
-
Feature:
-
self loading forklift
-
Operating weight:
-
245KG
-
Tire:
-
Pneumatic
-
After-sales Service Provided:
-
Overseas third-party support available
Quick Details
-
Min. Lifting Height:
-
0mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TIDER
-
Fork Length:
-
1150mm
-
Fork Width:
-
155mm
-
Overall Dimensions:
-
1570*786*1597mm
-
Weight (KG):
-
250 kg
-
Type:
-
Powered Pallet Truck
-
Product Name:
-
500kg self loading stacker 0.5 ton electric self lift stacker
-
Power type:
-
AC Power
-
Battery:
-
45Ah
-
Overall length:
-
1570mm
-
Feature:
-
self loading forklift
-
Operating weight:
-
245KG
-
Tire:
-
Pneumatic
-
After-sales Service Provided:
-
Overseas third-party support available
|
Specification:
|
|
|
|
Power unit
|
|
Battery
|
|
Operator type
|
|
Pedestrian
|
|
Tyre type
|
|
Nylon
|
|
Load capacity
|
kg
|
500
|
|
Load center
|
mm
|
400
|
|
Wheel base
|
mm
|
758
|
|
Front track base
|
mm
|
380
|
|
Rear track base
|
mm
|
665
|
|
Lowered Fork height
|
mm
|
85
|
|
Max.lifting height
|
mm
|
1300
|
|
Max.fork width
|
mm
|
535
|
|
Fork length
|
mm
|
1150
|
|
Fork width×Fork thickness
|
mm
|
155×60
|
|
Overall length
|
mm
|
1570
|
|
Total width
|
mm
|
786
|
|
Overall height(Mast closed)
|
mm
|
1597
|
|
Overall height(Fork lowering)
|
mm
|
1618
|
|
Min.turning radius
|
mm
|
1100
|
|
Lifting motor power
|
kW
|
DC0.8
|
|
Battery voltage
|
V
|
12
|
|
Battery capacity
|
Ah
|
45
|
|
Operating weight
|
kg
|
245
|
The features of 500kg electric stacker:
1. Germany system technology of warehousing equipment and leading international level.
2. The product with the principle of human engineering, fully humanized design.
3. Easy-controlling by operator and flexible when carrying cargoes.
4. Using USA or Italy electronic assembly control, the German import control handle and Italy Metalrota driving wheel,and fully guarantee the stability of vehicle.
5.Newly designed by domestic well-known designer, with beautiful appearance.
