Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANBI
-
Model Number:
-
BTHQ-500X2
-
Voltage:
-
220V,50HZ single phase
-
Dimension(L*W*H):
-
6000X1600X1600mm
-
Weight:
-
1600 KG
-
Marketing Type:
-
Hot Product 2020
-
Max Speed:
-
600pcs/min
-
Bag width:
-
150-450mm
-
Bag length:
-
300-900mm
-
Speed:
-
300pc/min X2 lines
-
Servo motor and driver 3kw:
-
2 sets
-
Tracking photocells:
-
2 sets
-
Automatic punching:
-
Include
-
PLC:
-
1 set
-
Unwinder station:
-
Pneumatic cylinder loading the roll
-
Application:
-
T shirt bag,shopping bag
-
Guarantee:
-
one year
Quick Details
-
Machine Type:
-
Cutting Machine
-
Bag Type:
-
T-shirt Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANBI
-
Model Number:
-
BTHQ-500X2
-
Voltage:
-
220V,50HZ single phase
-
Dimension(L*W*H):
-
6000X1600X1600mm
-
Weight:
-
1600 KG
-
Marketing Type:
-
Hot Product 2020
-
Max Speed:
-
600pcs/min
-
Bag width:
-
150-450mm
-
Bag length:
-
300-900mm
-
Speed:
-
300pc/min X2 lines
-
Servo motor and driver 3kw:
-
2 sets
-
Tracking photocells:
-
2 sets
-
Automatic punching:
-
Include
-
PLC:
-
1 set
-
Unwinder station:
-
Pneumatic cylinder loading the roll
-
Application:
-
T shirt bag,shopping bag
-
Guarantee:
-
one year
Banner
Product Description
t SHIRT MAKING MACHINE /SHOPPING BAG MACHINE /AUTOMATIC SHIRT MAKING MACHINE
|
Model
|
BTHQ-500X2
|
|
Max. rubble roll width
|
500mmX2
|
|
Max. effective width of bag
|
150-450mmx 2 lines
|
|
Max.Bag-making length
|
300-900mm
|
|
Bag-making thickness
|
0.01-0.05mm
|
|
Bag-making speed
|
250-300pcs/minX2 lines
|
|
Air pressure
|
10kg/cm2
|
|
Automatic punching cylinder
|
2pcs
|
|
Tracking Photocell
|
2pcs
|
|
Pneumatic cylinder loading material
|
include
|
|
Total Power
|
10kw
|
|
Weight of machine
|
2000kg
|
|
Overall dimensions
|
6000X1600X1600mm(L X W X H)
|
Unwinder with pneumatic cylinder loading material ,
with jumbo roller control the tension
Equip with two pc panasonic brand tracking photocell ,with air transportation.
Equip With PLC with touch screen to control the length and speed and etc.
Equip with tidy bag device ,
.In line
with automatic punching device

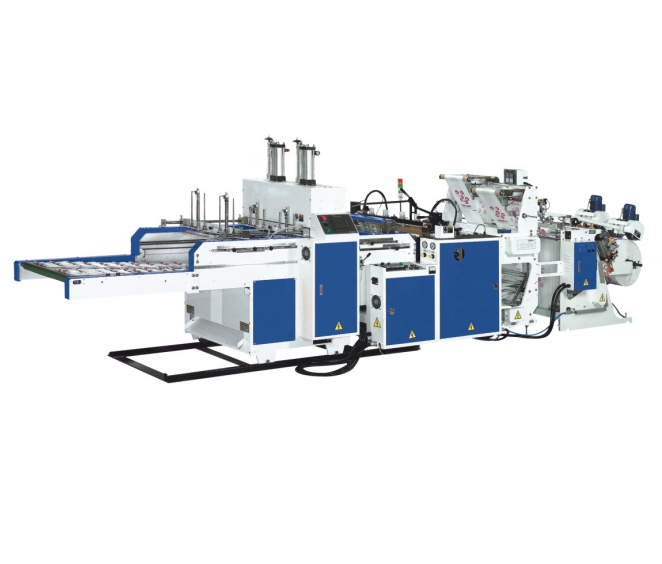

The overall picture
Unwinder with pneumatic cylinder loading ,with air shafts
Equip with air transportation instead of spring
Main Products
Related Products
Packing&Shipping
FAQ
Q1. ls your company trading company or manufacturer ?
Q3. What's the suitable material for our machines?
Q5.When is your company founded ?
Q6. Which certificate do your company have ?
Q7.How many exhibition do you attend in China ?
Q8.What;s the scale of your company ?
A1.
We are manufacturer .
Q2. Where is your factory ?How can i visit your company ?
A2.We locate in Ruian city ,Zhejiang province.lt takes 45 minuted by air from shanghai to wenzhou airport , then we can arrange to pick you up from wenzhou airport which takes45 minutes by car or it takes about 5 hours from shanghai high train station to ruian high train station.
Q3. What's the suitable material for our machines?
A3. For our film blowing machine ,it has LDPE,HDPE,LLDPE,MLLDPE,CACO3,PP,PVCand etc serval kinds. For our bag making machine is suitable for PE,PP,OPP,PVC andetc side sealing ,bottom sealing,middle sealing and etc several kinds.For the printing machine ,it is suitable for plastic film ,laminating film ,paper ,non wovenfabric and etc severa
l
ki
nds.
Q4.How many kind of machines do you manufacture ?
A4. film blowingmachine ,bag making machine ,printing machine ,slittingmachine,recycling machine ,laminating machine and etc
Q5.When is your company founded ?
A5. Since 1987 more than 32 years history.
Q6. Which certificate do your company have ?
A
6.CE,ISO9001;2015,sGs certificate and more than 30 pcs patent of machines.
Q7.How many exhibition do you attend in China ?
A7:Chinaplast from 2008-2019 year. Guanghzou Canton fair from 2007-2019 year.
Q8.What;s the scale of your company ?
A8:our company covers 14000 square meter, over 11000 square meter of which is buildingarea,consisting over 100 staffs,20 engineer for technical support..
