Quick Details
-
Power:
-
Designed
-
Dimension(L*W*H):
-
According to capacity
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Plate Material:
-
SS304/316L or customized
-
Gasket Material:
-
NBR/EPDM/HNBR
-
Capacity:
-
500~500,000lph
-
Control:
-
Fully automatic
-
Frame material:
-
Carbon steel, Stainless steel, Stainless steel coat
-
Connection size:
-
DN15~DN500
-
Color:
-
Customized
-
Nozzle:
-
Flange, Rubber insert, Metal insert
-
Marketing Type:
-
New Product 2023
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Propellent
-
Voltage:
-
According to your requirements
-
Power:
-
Designed
-
Dimension(L*W*H):
-
According to capacity
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Plate Material:
-
SS304/316L or customized
-
Gasket Material:
-
NBR/EPDM/HNBR
-
Capacity:
-
500~500,000lph
-
Control:
-
Fully automatic
-
Frame material:
-
Carbon steel, Stainless steel, Stainless steel coat
-
Connection size:
-
DN15~DN500
-
Color:
-
Customized
-
Nozzle:
-
Flange, Rubber insert, Metal insert
-
Marketing Type:
-
New Product 2023

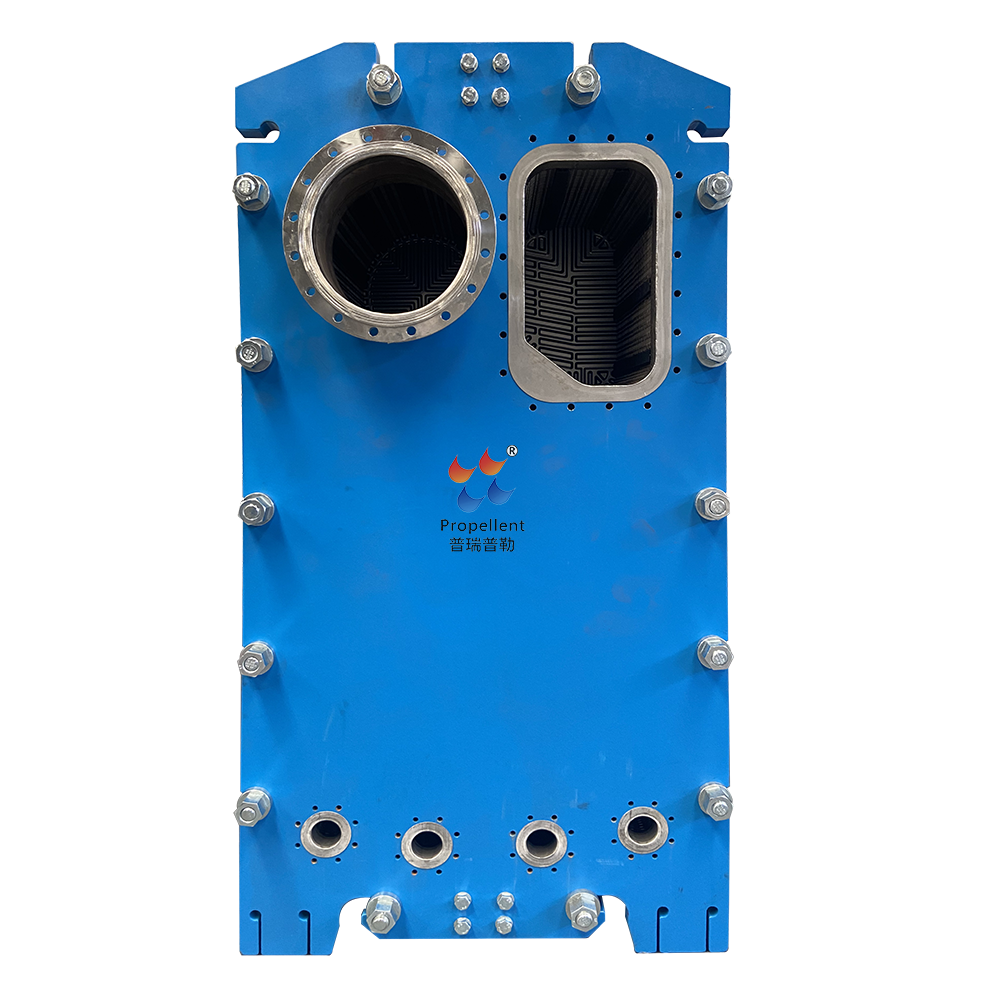

Professional New Plate Evaporation System Experiment Device Stainless Steel Condenser Evaporator for Dextrose
| Material of Plate | Suited Liquid |
| Stainless Steel (AISI304.316 Etc) | Pure Water, Normal Water, Oil for eating, Mineral Oil |
| Ti, Ti-pd | Sea Water, Saline Water, Mineral Water |
| 20Cr, 18Ni, 6Mo (254SMO) | Dilute Sulphuric Acid, Organic Water Solution |
| Ni | High-temp and concentration caustic soda |
| Hastelloy (C276, D205, B2G) | Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid |
| Material of Gasket | Operating Temperature ° C | Suited Liquid |
| NBR | -15~+135° C | Water, Sea Water, Mineral Oil, Salinous Water |
| EPDM | -25~+180° C | Hot Water, Steam, Acid, Alkali |
| F26 | -55~+230° C | Acid, Alkali |
| TPF | 0~+160° C | High Concentrated Acid, Alkali, High temperature Oil, Steam |
Ev aporator
Standard design
Evaporator is an important procedure adopted to economize the consumption of energy.
Plate evaporator is an evaporation device in which metal plate replaces round tube as heat transfer element. It is widely used in single-effect evaporation, multi-effect evaporation, MVR and other evaporation and concentration systems of various industrial media.
In terms of energy saving, the plate evaporator can carry out counter-heat transfer evaporation, which greatly shortens the temperature difference between the two ends, thereby reducing the amount of heating steam.
Our company has rich experience, selects and designs according to user needs, and develops a complete set of solutions.It is suitable for evaporation of media in industries such as food, juice, dairy, sugar, biological products, fermentation, environmental protection, papermaking, sewage treatment, seawater desalination, etc.
Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
1,As a professional manufacturer, we can offer you high quality products with competitive price , fast delivery and customized service.
2,As a responsible manufacturer, we promise One year lifetime guarantee.
3,As a experienced manufacturer,we can supply the best quality replace parts for some brands to help you save cost.
4,As a active manufacturer, we develop new designs nearly every month. If you were interested in it, it would be my pleasure to offer news to you.
