Quick Details
-
Dimensions (L x W x H) (mm):
-
8000*2100*2900mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Vehicle name:
-

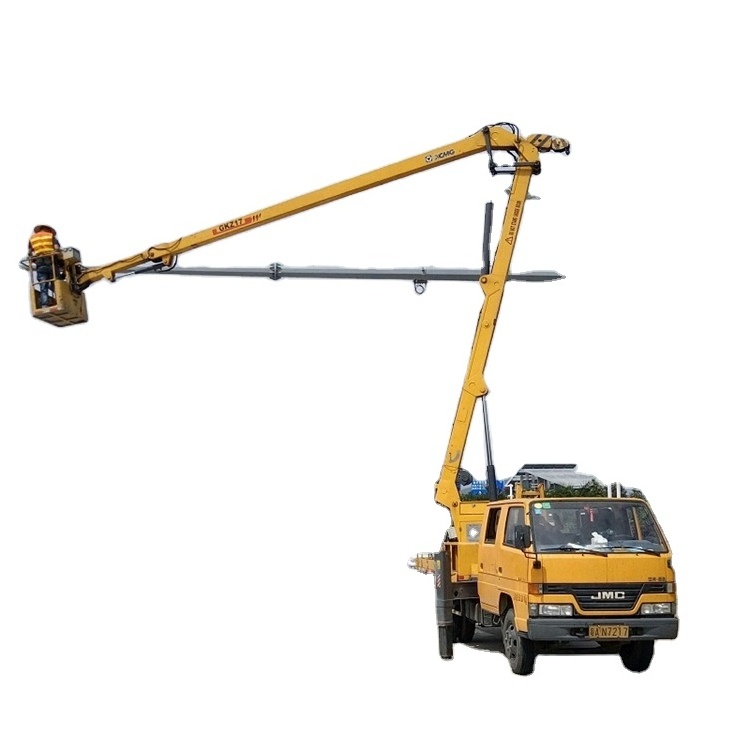

Mini Insulated Bucket Trucks
-
Working height:
-
10-24m aerial platform
-
Drive type:
-
option 4X2,4X4 aerial truck
-
Chassis:
-
option DONGFENG,FOTON,JAC,JMC and Japan brand
-
Cabin type:
-
single,double cabin aerial lift truck
-
Steering wheel:
-
left or right hand drive trucks
-
Control system:
-
hydraulic
-
Tire:
-
8.25-20 with spare tires
-
Wheelbase:
-
4500MM
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
After-sales Service Provided:
-
Video technical support, Online support
-
Dimensions (L x W x H) (mm):
-
8000*2100*2900mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Vehicle name:
-
Mini Insulated Bucket Trucks
-
Working height:
-
10-24m aerial platform
-
Drive type:
-
option 4X2,4X4 aerial truck
-
Chassis:
-
option DONGFENG,FOTON,JAC,JMC and Japan brand
-
Cabin type:
-
single,double cabin aerial lift truck
-
Steering wheel:
-
left or right hand drive trucks
-
Control system:
-
hydraulic
-
Tire:
-
8.25-20 with spare tires
-
Wheelbase:
-
4500MM
|
Total mass kg |
12250 |
|
Overall dimension mm |
8000*2100*2900mm |
|
Max. Lifting Height m |
33m |
|
Main hook single load kg |
12000 |
|
Main hook single elevating speed m/min |
26 |
|
Auxiliary hook single load kg |
1200 |
|
Auxiliary hook single elevating speed m/min |
55 |
|
Derailleur model |
145 gear box |
|
Tires |
8.25-20 with spare tires |
|
Braking form |
Air break |
|
Cooloer |
KLNF277F |
|
Steering form |
The steering wheel circulation ball type |
|
Main Lifting Mechanism |
Category two planet wheel with a brake inside |
|
Auxiliary Lifting Mechanism |
Category one gear brake motor |
|
Swing Bearing |
QWA.1120.40 |
|
Max speed km/h |
60 |
|
Amplitude cylinder |
HSG200/165-1800 |
|
Vertical hydraulic cylinder |
HSG125/90-480 |
|
Horizontal hydraulic cylinder |
HSG63/35-1400 |
|
Outrigger cylinder |
HSG125/90-480 |
|
Outrigger span |
6.05*6.5m |
|
Platform |
Anti-skidding and big |
|
Crane Cab |
Tailor-made |
|
The central axially symmetrical |
Four oil ways |
|
Crane Start |
Tailor-made |
|
Pressure gage and switch |
Shockproof component |
