Quick Details
-
Brand Name:
-
Jianxin
-
Motor Power:
-
55 KW
-
Charging Capacity:
-
4800 L
-
Reclaiming capacity:
-
3000 L
-
Speed of Mixing Drum:
-
21 r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Hydraulic Discharge
-
Outline Dimension:
-
4050*2680*2150 mm
-
Weight (KG):
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

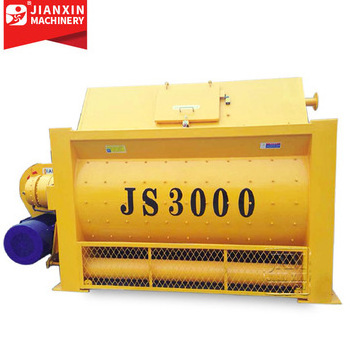

Factory Directly JS3000 1 Yard Concrete Mixer for Sale
-
Theoretical output:
-
150 CBM/Hour
-
Mixing blade rotating speed:
-
21 r/min
-
Max grain diameter(gravel/grait):
-
100/120
-
Mixing blades:
-
55*2
-
Color:
-
Yellow or customized
-
Shaft type:
-
Twin horizontal shafts
-
Advantage:
-
Automatic lubrication system
-
Application:
-
All industrial or civil construction projects
Quick Details
-
Mixing Power:
-
60 KW
-
Productivity:
-
3M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jianxin
-
Motor Power:
-
55 KW
-
Charging Capacity:
-
4800 L
-
Reclaiming capacity:
-
3000 L
-
Speed of Mixing Drum:
-
21 r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Hydraulic Discharge
-
Outline Dimension:
-
4050*2680*2150 mm
-
Weight (KG):
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Factory Directly JS3000 1 Yard Concrete Mixer for Sale
-
Theoretical output:
-
150 CBM/Hour
-
Mixing blade rotating speed:
-
21 r/min
-
Max grain diameter(gravel/grait):
-
100/120
-
Mixing blades:
-
55*2
-
Color:
-
Yellow or customized
-
Shaft type:
-
Twin horizontal shafts
-
Advantage:
-
Automatic lubrication system
-
Application:
-
All industrial or civil construction projects
Commonly used in mixing station JS3000 concrete mixer (3 square concrete mixer) has dual advantages as a single independent operation and also used with the PLD series batching machine ,composed of 180 cbm concrete mixing station , suitable for all kinds of large, medium and small prefabricated factory and Large-scale industrial and civil construction projects such as roads, bridges, water conservancy, and docks. MAO3000 Sicoma mixer can be combined with a certain batching machine model to form a large-scale commercial concrete mixing station and a double concrete mixing station, with powerful power and high production efficiency.
JS3000 concrete mixer Mixing system
The arc portion of the mixing drum is welded, and the mixing barrel is provided with five kinds of lining plates, which are fastened with the countersunk screws and the cylinder body.
Due to the different contact conditions between the aggregate and the lining, the lining wear is uneven, and the lining can be exchanged for the purpose of improving the use time of the lining.
The mixing shaft is provided with a special sealing device at the end of the mixing drum. In order to ensure the quality of the seal, a special oil supply pump is arranged on the end face of the mixer drum.
JS3000 concrete mixer Discharging system
The discharging system consists of a discharge door, a gas pump, a reversing valve, a gas distribution valve, a cylinder, an electric mechanism,and other mechanisms.
JS3000 concrete mixer Electrical System
The electric control circuit is equipped with an air switch, a fuse and a thermal relay, and has the functions of short circuit and overload protection. All control buttons and air switch handles and indicators are located on the distribution box door and are equipped with a door lock. The button has a protective cover.
| Project | Discharge capacity(L) | Feed capacity(L) | Theoretical productivity(m³/h) |
| JS3000 | 3000L | 4800L | 150m³/h |
Zhengzhou Jianxin Machinery Manufacturing Co., Ltd. is a high-end technology enterprise that integrates R&D, manufacturing, sales, and service. It has been established for more than 30 years, and it has always adhered to the production of equipment for concrete mixing plants. It is a development project for China's construction industry. Provide high-quality high-end concrete production equipment and construction programs.
Professional technical and service teams have provided inexhaustible motivation for building a new century-long foundation. At present, all new brand equipments are designed, produced, assembled and tested in accordance with the ISO9001 international quality certification system standards. Currently, they have been sold in more than 20 countries and regions at home and abroad, and treat each customer seriously, providing them with quality equipment and services. In order to improve the interests of customers, it is the compliance of the establishment of new standards. Quality is the lifeblood of products, and high-quality after-sales service is our top priority.
FAQ
Q How about the quality of your products?
A Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.Chinese top brands or world grade brands like Siemens motors etc are equiped.
Q
How about the price?
A
As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount and ensurance.
Q
Do you provide after-sale service?
A
Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.It usually takes 1-3 days for training , 10-15 days for installation,1-2days for commission,1-2days for pre-operation.
Q
Do you provide equipment operation training?
A
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.It's about 90-120 usd a day.
Q
Can you test our samples?
A
Yes. You can send your samples to us for test and analysis.
Q
How long it takes to do all the installation
A
It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.
Q
Can we visit your factory?
A
Yes. You can visit our factory at anytime you want.
