Quick Details
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
China
-
Brand Name:
-
YG MACHINERY
-
Year:
-
NEW
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
2900*1800*1930mm
-
Hollow part volume:
-
MAX 20L
-
Power (kW):
-
25KW
-
Weight (KG):
-
1873 KG
-
Product name:
-
pet bottle blow molding machinent system capac3t/h
-
Color:
-
Customer Choice
-
Bottle type:
-
PET Bottlle
-
Bottle type2:
-
PET Plastic Bottle
-
Bottle type3:
-
Round Square Bottle
-
Bottle type4:
-
Beer Bottle
-
Processing Type:
-
Automatic Heat blowing
-
Capacity:
-
250ml- 20000ml
-
Speed:
-
2000-5000/min
-
Bottle material:
-
PP PE PET PVC
Quick Details
-
Neck Diameter(mm):
-
80 mm
-
Max.Bottle Diameter(mm):
-
120 mm
-
Max.Bottle Height(mm):
-
400 mm
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
China
-
Brand Name:
-
YG MACHINERY
-
Year:
-
NEW
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
2900*1800*1930mm
-
Hollow part volume:
-
MAX 20L
-
Power (kW):
-
25KW
-
Weight (KG):
-
1873 KG
-
Product name:
-
pet bottle blow molding machinent system capac3t/h
-
Color:
-
Customer Choice
-
Bottle type:
-
PET Bottlle
-
Bottle type2:
-
PET Plastic Bottle
-
Bottle type3:
-
Round Square Bottle
-
Bottle type4:
-
Beer Bottle
-
Processing Type:
-
Automatic Heat blowing
-
Capacity:
-
250ml- 20000ml
-
Speed:
-
2000-5000/min
-
Bottle material:
-
PP PE PET PVC

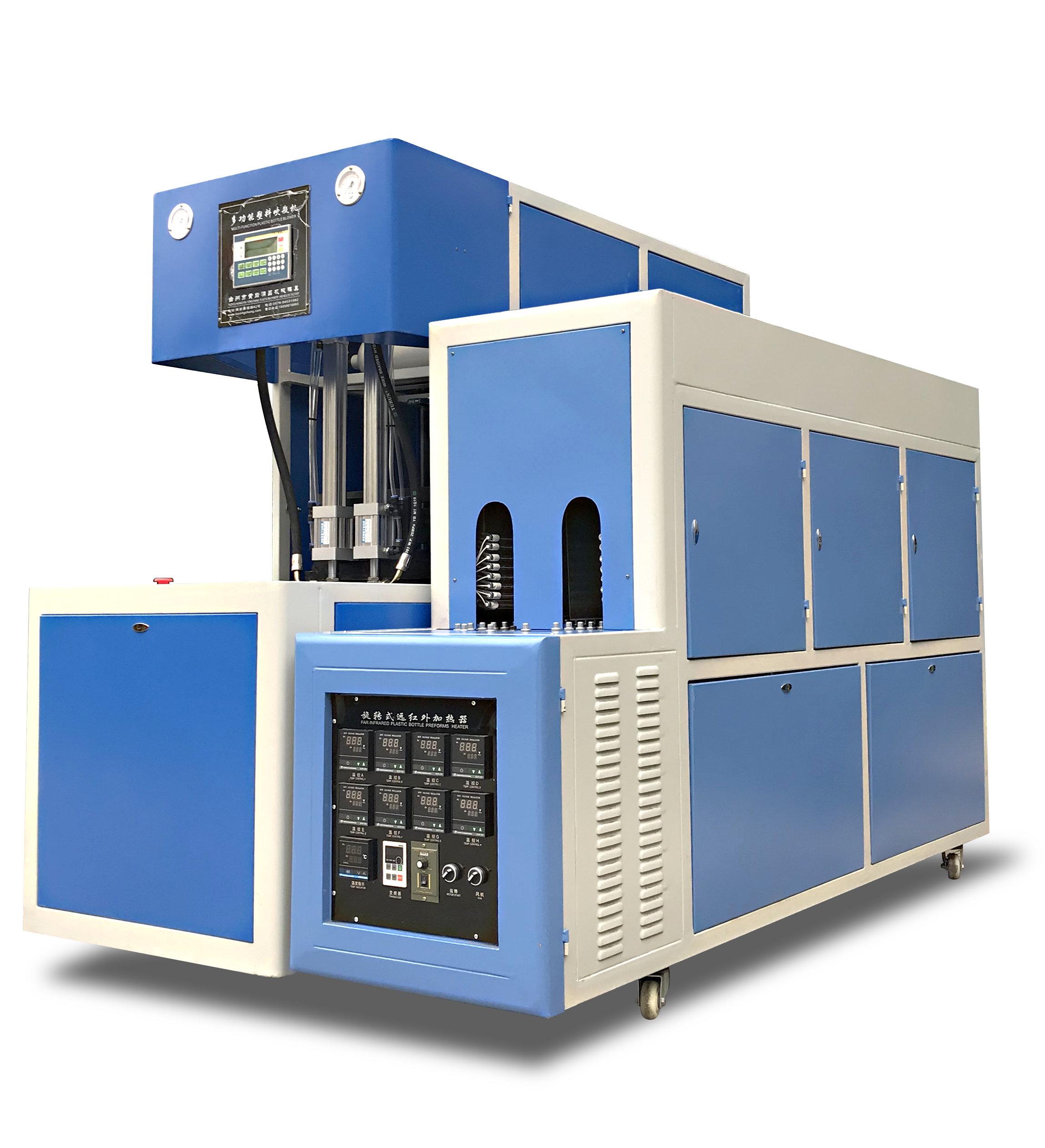

1 Liter Bottle blowing making machine
Technical Parameter
|
主要参数： Main parameters:
|
|
|
||
|
名称 heading
|
单位 Unit
|
数据 Data
|
||
|
模数 cavity
|
Pcs
|
2
|
||
|
实际产量 theoretical outout
|
Pcs/hr
|
800-1000
|
||
|
最大容量 max.container volume
|
L
|
3
|
||
|
最大瓶子口径 max.neck diameter
|
MM
|
120
|
||
|
最大瓶子直径 max.container diameter
|
MM
|
200
|
||
|
最大瓶子高度 max.container height
|
Mm
|
350
|
||
|
最大模厚 max.moul thickness
|
Mm
|
200
|
||
|
开模行程 mould opening stroke
|
mm
|
230
|
||
|
工作气压 operating pressure
|
Mpa
|
0.8-10.0
|
||
|
吹瓶压力 blowing pressure
|
Mpa
|
2.0-3.0
|
||
|
加热功率 heater power
|
KW
|
8
|
||
|
机器重量 machine weight
|
KG
|
750
|
||
|
Item
|
Brand
|
Original
|
|
Air cylinder
|
Yardeke
|
Taiwan
|
|
Blow valve
|
Burkert
|
Germany
|
|
Action solenoid valve
|
Yardeke
|
Taiwan
|
|
PLC
|
XinJie
|
China
|
Main features & advantages
1. Small volume, less power consumption, convenient maintenance and operation need only one person, without special training,
simple installation and start. 2. Advanced PLC control system, the time control can be accurate to 0.01 seconds. 3. Special air
storage device. 4. The scrap rate of finished products is less than 0.2%.
simple installation and start. 2. Advanced PLC control system, the time control can be accurate to 0.01 seconds. 3. Special air
storage device. 4. The scrap rate of finished products is less than 0.2%.
