Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BC-GAS
-
Car Model:
-
4 6 8 Cylinder car
-
Product name::
-
AT 04 Kit Gnv CNG Gas Generation 5 Reducer At04 Gas Equipment
-
Material::
-
Aluminium
-
Max inlet gas pressure::
-
22Mpa
-
work method::
-
2nd stage ouput pressure
-
Max working pressure::
-
20Mpa
-
Working medium::
-
CNG & lpg
-
Car Model::
-
1.6-4.5L Injection Car
-
Engine::
-
2.0 D, 2.2 Turbo quattro, 2.3 E, 2.3 E quattro, 1.8, 2.2 Turbo, 2.3,..
-
2nd stage ouput pressure::
-
0.11MPa
-
Certification:
-
ISO NQA CE JQB
Quick Details
-
OE NO.:
-
BC-GAS
-
Size:
-
20*20*10
-
Warranty:
-
12 months
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BC-GAS
-
Car Model:
-
4 6 8 Cylinder car
-
Product name::
-
AT 04 Kit Gnv CNG Gas Generation 5 Reducer At04 Gas Equipment
-
Material::
-
Aluminium
-
Max inlet gas pressure::
-
22Mpa
-
work method::
-
2nd stage ouput pressure
-
Max working pressure::
-
20Mpa
-
Working medium::
-
CNG & lpg
-
Car Model::
-
1.6-4.5L Injection Car
-
Engine::
-
2.0 D, 2.2 Turbo quattro, 2.3 E, 2.3 E quattro, 1.8, 2.2 Turbo, 2.3,..
-
2nd stage ouput pressure::
-
0.11MPa
-
Certification:
-
ISO NQA CE JQB
Product Description

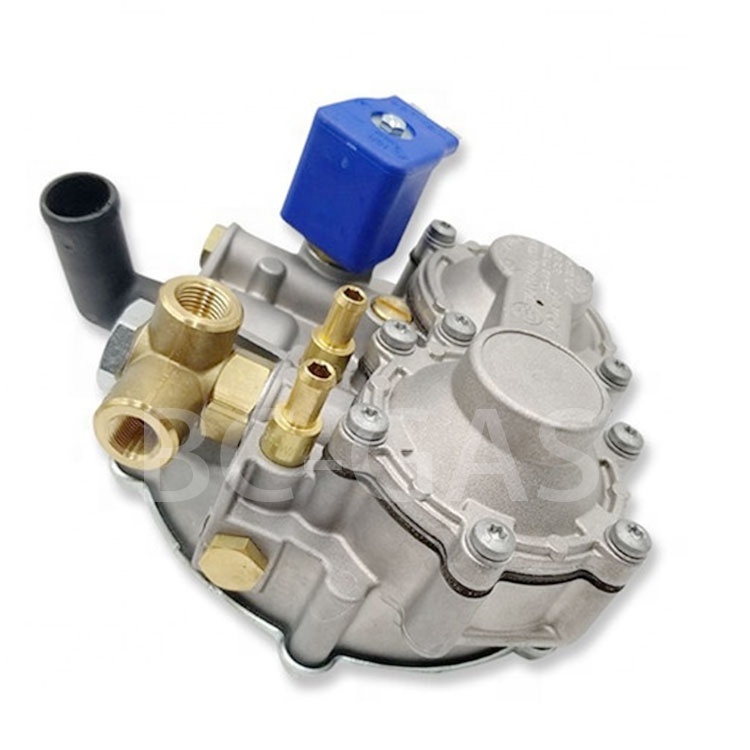

AT 04 Kit Gnv CNG Gas Generation 5 Reducer At04 Gas Equipment For Auto Car
1.Continuously adjust pressure in cylinders to meet requirements
2.It can provide the gas required by the engine under any condition, while also allowing the export pressure to be adjusted.
3.Built-in two-level diaphragm valve to ensure that the pressure drop in the device and the engine throttle constant pressure
4.Equipped with water/air heat exchange function, with filter, high pressure solenoid valve
2.It can provide the gas required by the engine under any condition, while also allowing the export pressure to be adjusted.
3.Built-in two-level diaphragm valve to ensure that the pressure drop in the device and the engine throttle constant pressure
4.Equipped with water/air heat exchange function, with filter, high pressure solenoid valve
|
GAS regulator / Reducer Specifications (BC-gas)
|
|
|
|
|||
|
Product details |
Regulated media
|
CNG & LPG
|
|
|||
|
|
Material
|
Aluminium
|
|
|||
|
|
Car Engine
|
1.6L - 4.5 L
|
|
|||
|
|
GW/NW
|
21/22KG
|
|
|||
|
Main performance parameters |
Maximum input pressure
|
26 MPa (260 bar)
|
|
|||
|
|
Maximum output pressure
|
depending on the mixer
|
|
|||
|
|
Maximum flow
|
More than15Nm3/h
|
|
|||
|
|
Working pressure
|
Less than20Mpa (200bar)
|
|
|||
|
|
Working voltage
|
DC12V
|
|
|||
|
|
Coil Power
|
17 W (solenoid)
|
|
|||
|
|
Power Capacity:
|
Up to 140 HP
|
|
|||
Other CNG/LPG conversion kit for car
Our company
Chengdu BaiChuan Electronics Co.,ltd （ BC-GAS ）founded in 2008,which engaged in CNG/LPG dual fuel system facility R&D,production and sales over 10 years.
BC-GAS mainly produce ECU kit,reducer,injector rail,timing advance processor,emulator,switch and relevant accessories.Specially ECU kits,all the popular types we can make for you.
The annual output is 60,000sets.BC-GAS branded products due to its exceptional quality & competitive price,not only taken domestic market,but also exported to the United States,Argentina,Peru,Brazil,Russia,India,Turkey,Kazakhstan and other more than 40 countries.
BC-GAS mainly produce ECU kit,reducer,injector rail,timing advance processor,emulator,switch and relevant accessories.Specially ECU kits,all the popular types we can make for you.
The annual output is 60,000sets.BC-GAS branded products due to its exceptional quality & competitive price,not only taken domestic market,but also exported to the United States,Argentina,Peru,Brazil,Russia,India,Turkey,Kazakhstan and other more than 40 countries.
Company Tent:"
CREATE VALUE FOR CUSTOMERS,CONTRIBUTE TO THE GREEN EARTH
".
BC-GAS QUALITY
BC-GAS has the
Strict quality management system，every
PCB（Printed circuit board）should pass the c
omputer inspection, manual re-inspection
and the
extreme use scenes （such as
high temperature / low temperature, positive pressure / negative pressure
) are tested before leaving the factory .
NQA quality system certification for ten consecutive years and dozens of patent certificates
Exhibition
FAQ
1.
what is the MOQ?
A:1 PCS for sample order; 5 PCS above for normal order
2. How can we choose the suitable model?
A: our sales enginees will offer suggentions according to your actual usage.
3. Can you offer us products listed with adding or reducing specific function modules?
A:Yes,we accept cuztomize .
4. May I know your warranty?
A:18 months
5. Are you factory or trading company ?
A:We are factory established in 2008 and located in Sichuan, China,
6. how can we guarantee quality?
A:Always a pre-production sample before mass production;Thehe third party testing is OK.
8. How about the delivery time?
A:Ordinary in 3- 5 working days.For bulk quantity, negotiable.
9. Ship methods?
A:1 PCS for sample order; 5 PCS above for normal order
2. How can we choose the suitable model?
A: our sales enginees will offer suggentions according to your actual usage.
3. Can you offer us products listed with adding or reducing specific function modules?
A:Yes,we accept cuztomize .
4. May I know your warranty?
A:18 months
5. Are you factory or trading company ?
A:We are factory established in 2008 and located in Sichuan, China,
6. how can we guarantee quality?
A:Always a pre-production sample before mass production;Thehe third party testing is OK.
8. How about the delivery time?
A:Ordinary in 3- 5 working days.For bulk quantity, negotiable.
9. Ship methods?
A:
a. Samples (Several kits), Recommend express like Fedex, DHL, Aramex etc...
b. Trial order (Tens kits), Ship by air.
c. Official order (Hundreds), Suggest to ship by sea.
10. Payment details ?
A: All the payment method such as T/T .Trade Assurance. Alipay . Paypal.Western Union is ok.
OEM is available.
We offer OEM service, customized products.
b. Trial order (Tens kits), Ship by air.
c. Official order (Hundreds), Suggest to ship by sea.
10. Payment details ?
A: All the payment method such as T/T .Trade Assurance. Alipay . Paypal.Western Union is ok.
OEM is available.
We offer OEM service, customized products.
