Quick Details
-

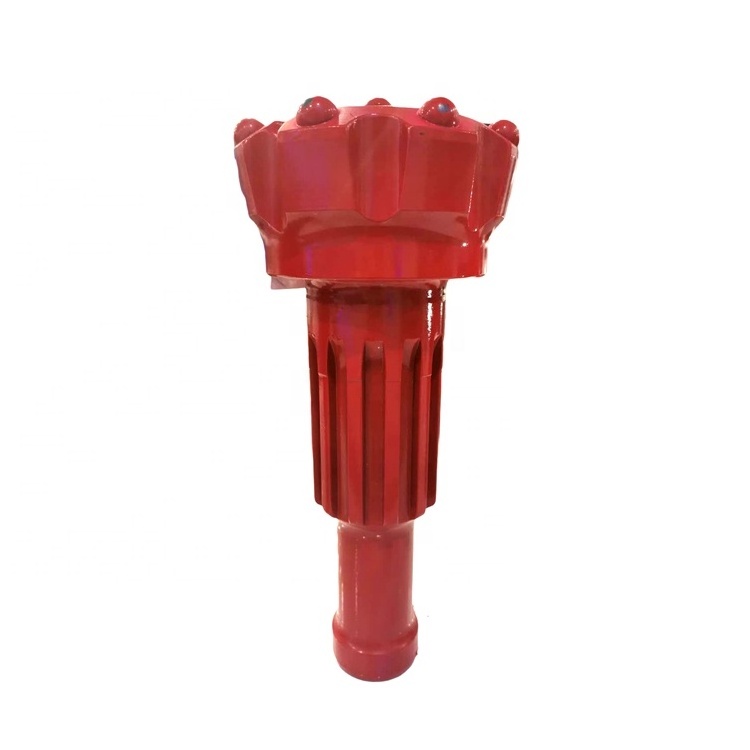

Product name:
-
mission50 dth bit
-
Application:
-
Construction,water well,mining...
-
Usage:
-
Hole Drilling
-
Advantage:
-
High-efficiency
-
Quality:
-
HighQuality
-
Color:
-
Request
-
Diameter:
-
140-178mm
-
Bit face:
-
concave,convex,flat
Quick Details
-
Weight (KG):
-
15
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
RME
-
Product name:
-
mission50 dth bit
-
Application:
-
Construction,water well,mining...
-
Usage:
-
Hole Drilling
-
Advantage:
-
High-efficiency
-
Quality:
-
HighQuality
-
Color:
-
Request
-
Diameter:
-
140-178mm
-
Bit face:
-
concave,convex,flat
DTH BIT
1.
H
igh and low air pressure down-the-hole drill bits
2.Low air pressure
hole
Dia.:
68
-2
0
0mm
3.High air pressure hole Dia.:85-3 81 mm
4. Face T ype: D rop C enter face / C oncave face / C onvex face / D ouble G auge face / F lat face
5.Our DTH Bit s can be suitable for many types of DTH Hammer s. S uch as Mission, COP, SD, DHD,QL,NUMA and etc.
We can design and manufacture according to customer ’ s requirement of Bit Diameter, Port holes,carbide button shape and the face shape.
| Mission30 | HEAD SHAPE | HEAD DIA.(MM) | SPLINE | PORT HOLES | WEIGHT(KG) |
| FLAT FACE | 90 | 8 | 2 | 4.8 | |
| FLAT FACE | 95 | 8 | 2 | 4.9 | |
| FLAT FACE | 100 | 8 | 2 | 5.1 | |
| FLAT FACE | 108 | 8 | 2 | 5.4 |
| Mission40 | Head shape | head dia.(mm) | spline | port holes | weight(kg) |
| convex face | 108 | 12 | 2 | 7.8 | |
| convex face | 115 | 12 | 2 | 8.2 | |
| convex face | 127 | 12 | 2 | 9.2 | |
| convex face | 130 | 12 | 2 | 9.3 |
| Mission50 | Head Shape | head dia.(mm) | spline | port holes | weight(kg) |
| convex face | 140 | 12 | 2 | 13.9 | |
| flat face | 146 | 12 | 2 | 14.6 | |
| flat face | 152 | 12 | 2 | 15 | |
| flat face | 165 | 12 | 2 | 17 | |
| concave face | 178 | 12 | 2 | 18.5 |
| Mission60 | head shape | head dia.(mm) | spline | port holes | weight(kg) |
| concave face | 154 | 12 | 2 | 20.3 | |
| flat face | 165 | 12 | 2 | 20.5 | |
| concave face | 171 | 12 | 2 | 22 | |
| concave face | 178 | 12 | 2 | 23 | |
| concave face | 190 | 12 | 2 | 24 | |
| concave face | 203 | 12 | 2 | 27.3 |
| Mission80 | head shape | head dia.(mm) | spline | port holes | weight(kg) |
| concave face | 203 | 12 | 2 | 41.2 | |
| concave face | 216 | 12 | 2 | 46 | |
| concave face | 230 | 12 | 2 | 48.7 | |
| concave face | 235 | 12 | 2 | 49.3 | |
| concave face | 254 | 12 | 2 | 56.2 | |
| concave face | 275 | 12 | 2 | 62.8 | |
| concave face | 305 | 12 | 2 | 71.3 |
