Quick Details
-
Ac Voltage Range:
-
96-132VAC 155~280VAC
-
Frequency:
-
50Hz/60HZ auto
-
Phase:
-
single phase out
-
DC:
-
12V 24V 48V
-
Wave:
-
pure sine wave
-
Transformer:
-
COPPER
-
Postive service:
-
2% PCB board
-
Certificate:
-
ISO,CE
-
Warranty:
-
1year
Quick Details
-
Output Current:
-
60A max
-
Place of Origin:
-
Guangdong, China
-
color:
-
green /red/silver
-
Ac Voltage Range:
-
96-132VAC 155~280VAC
-
Frequency:
-
50Hz/60HZ auto
-
Phase:
-
single phase out
-
DC:
-
12V 24V 48V
-
Wave:
-
pure sine wave
-
Transformer:
-
COPPER
-
Postive service:
-
2% PCB board
-
Certificate:
-
ISO,CE
-
Warranty:
-
1year

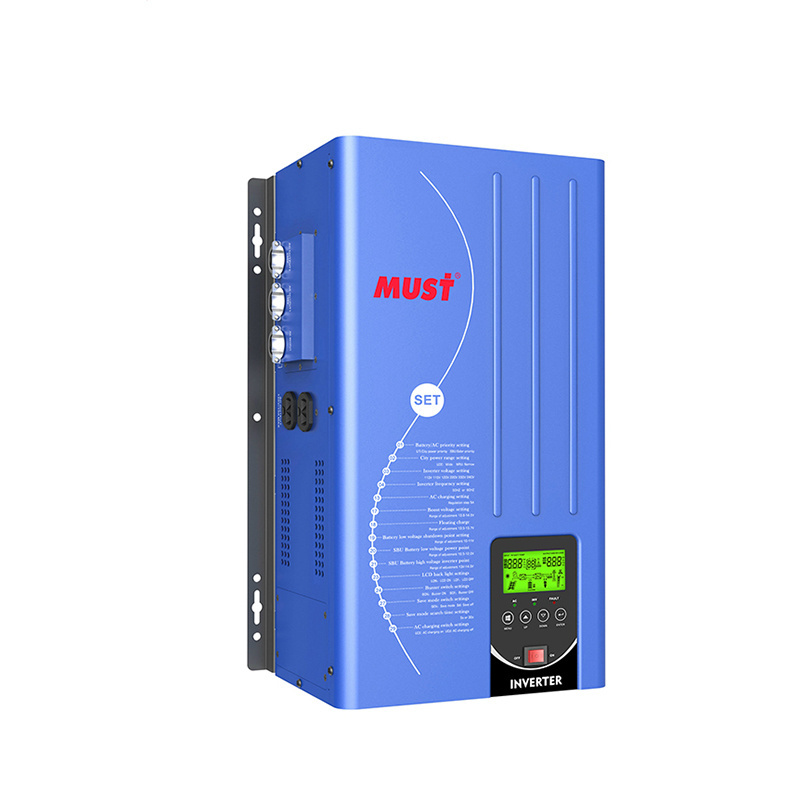

MUST Brand off grid inverter 1KW 12V to 120V/240V converter low frequency pure sine wave with smart LCD display
Main Features
- Pure sine wave output, split phase HOT1+ N + HOT2 available, 120VAC/220VAC
- MFD (multi-function display) & Friendly user interface
- 3 Steps optimizing charge for battery pack
- Overload and short-circuit protection
- Settable: charging/charging current, utility/Battery priority, utility input wide/narrow range
- Inverter voltage can be set to 100V/110V/120V
- Inverter frequency can be set to 50/60Hz
Competitive Advantage
EP3300 TLV Series (1-6KW)
Technical Specification
| Model | EP33-1012TLV | EP33-1024TLV | EP33-1512TLV | EP33-1524TLV | EP33-2012TLV | EP33-2024TLV | EP33-3024TLV | EP33-3048TLV | EP33-4024TLV | EP33-4048TLV | EP33-5048TLV | EP33-6048TLV |
| Inverter Output | ||||||||||||
| Rated power(W) | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||
| Power Factor | 1 | |||||||||||
| Wave form | Pure sine wave/ Same as input waveform (bypass mode) | |||||||||||
| Output voltage RMS | 100V/110V/120VAC(200V/220V/240VAC)±10% | |||||||||||
| Output frequency | 50HZ or 60HZ (±0.3HZ) (can be set) | |||||||||||
| Overload protection | Breaker + software protection | |||||||||||
| Output short circuit | Breaker + software protection | |||||||||||
| Inverter efficiency(peak) | >80% | |||||||||||
| Overload | 100%<Load<110% (alarm 5min then stop output and fault code 07); 110%<Load<125% (alarm 60s then stop output and fault code 07); Load>125% (alarm 10s then stop output and fault code 07) | |||||||||||
| Surge rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | |||||
| Capable of starting electric motor | 1P | 1P | 1.5P | 1.5P | 2P | 3P | ||||||
| Battery | ||||||||||||
| Battery voltage | 12VDC/24VDC | 24VDC/48VDC | 48VDC | |||||||||
| Minimum start voltage | 11VDC/22VDC/44VDC | |||||||||||
| Low battery voltage cut off | (low voltage fault code04)10/10.5/11V for 12V model(*2 for 24DVC / *4 for 48VDC) | |||||||||||
| Low battery voltage alarm | Add 0.5V/battery: (low battery alarm one second one time) (10/10.5/11V) + 0.5Vdc for 12V model(*2 for 24DVC / *4 for 48VDC) | |||||||||||
| High battery voltage alarm | Add +1V/battery: (high voltage one second one time/after 30s fault 03) (13.8-14.5V) + 1V for 12V model(*2 for 24DVC / *4 for 48VDC) | |||||||||||
| Save mode | Load≤40W(110V)/80W(220V) | |||||||||||
| AC Input Mode | ||||||||||||
| Input waveform | Pure sine wave | |||||||||||
| Nominal input voltage | 220Vac / 230Vac / 240Vac | |||||||||||
| Max input voltage | 270Vac MAX | |||||||||||
| Input frequency | 50HZ/60HZ (auto sensing) | |||||||||||
| Efficiency(AC mode) | >95% (load, full battery) | |||||||||||
| Transfer time AC TO DC | 15ms(max) | |||||||||||
| Transfer time DC TO AC | 15ms(max) | |||||||||||
| Charge Mode | ||||||||||||
| Boost Voltage | 14.1V(Default) Range of adjustment 13.8-14.5V/*2 for 24VDC/*4 for 48VDC (Regulation step 0.1V) | |||||||||||
| Float Voltage | 13.5V(default) Range of adjustment 13.5-13.7V/*2 for 24VDC/*4 for 48VDC (Regulation step 0.1V) | |||||||||||
| 12V | 30A | 45A | 60A | |||||||||
| 24V | 20A | 25A | 30A | 40A | 60A | |||||||
| 48V | 20A | 30A | 35A | 40A | ||||||||
| Min charge current 10A. change by every 5A. | ||||||||||||
| Dimensions | ||||||||||||
| Dimensions (W*H*D) | 277*196*466mm | 277*186*621mm | ||||||||||
| Ship Dimensions (W*H*D) | 376*306*592mm | 376*296*747mm | ||||||||||
| Warranty | One year(standard),2years optional(IP20) | |||||||||||
Product Pictures
1. Package: Carton Box for packaging or Wooden Box advised for Samples to protect in transportations. Package designed by Clients is welcomed.
2. Shipping: DHL, FEDEX, UPS, EMS, Air Way and By Sea.
3. Payment: T/T and Western Union
4. Welcome to place your Sample Order to test first.
