Quick Details
-
Power:
-
55kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Wolwa
-
Maximum Digging Height:
-
6300mm
-
Maximum Digging Depth:
-
3500mm
-
Machine Weight:
-
6600 kg
-
Max Digging Radius:
-
6230mm
-
Rated Speed:
-
30km/h
-
Total length:
-
6380mm
-
Total width:
-
2150mm
-
Total height(cabin top):
-
2827mm
-
Tail swing radius:
-
2084mm
-
Wheel base:
-
2400mm
-
Min.ground clearance:
-
217mm
-
Engine power:
-
55kw
-
pilot pressure:
-
3.5Mpa
-
work pressure:
-
20Mpa
-
Rated flow:
-
135L/min
Quick Details
-
Operating Weight:
-
6TON
-
Bucket capacity:
-
0.3m3
-
Engine Brand:
-
Xinchai
-
Power:
-
55kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Wolwa
-
Maximum Digging Height:
-
6300mm
-
Maximum Digging Depth:
-
3500mm
-
Machine Weight:
-
6600 kg
-
Max Digging Radius:
-
6230mm
-
Rated Speed:
-
30km/h
-
Total length:
-
6380mm
-
Total width:
-
2150mm
-
Total height(cabin top):
-
2827mm
-
Tail swing radius:
-
2084mm
-
Wheel base:
-
2400mm
-
Min.ground clearance:
-
217mm
-
Engine power:
-
55kw
-
pilot pressure:
-
3.5Mpa
-
work pressure:
-
20Mpa
-
Rated flow:
-
135L/min

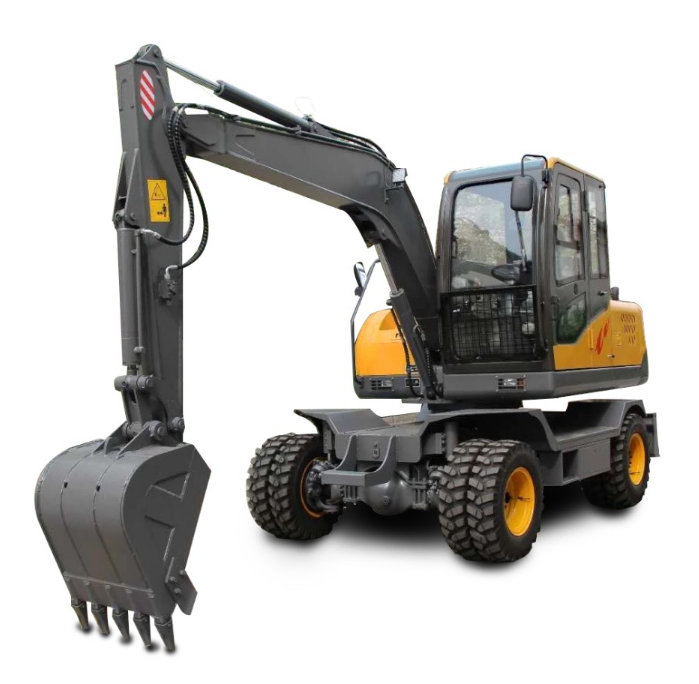

towable excavator 6 ton wheel digger backhoe
1.Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.
2.Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.
3.Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life.
4.Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity.
5.Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment.
6.Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.
|
operating weight |
6600kg |
|
B ucket volume |
0.28CBM |
|
E ngine power |
55kw |
|
total length |
5796mm |
|
total width |
2150mm |
|
total height |
2827mm |
|
boom length |
3050mm |
|
arm length |
1750mm |
|
wheel base |
2400mm |
|
M ax.travel speed |
30km/h |
|
max digging distance |
6074mm |
|
ground max digging distance |
5878mm |
|
max digging depth |
3228mm |
|
max digging height |
6202mm |
|
max dumping height |
4533mm |
|
minimum swing radius |
2361mm |
|
Climbing ability |
25 |
|
dozer blade width |
2024mm |
|
dozer blade height |
440mm |
|
hydraulic oil tank |
103L |
|
fuel tank |
125L |
|
arm digging force |
15KN |
|
bucket digging force |
25KN |
