Quick Details
-
Model Number:
-
IDEAL-PEEK CNC -Parts, ideal-pk-379
-
Product name:
-
PEEK parts
-
Material:
-
100% virgin PEEK
-
Processing:
-
CNC machining or injection molding
-
Color:
-
natural
-
Tolerence:
-
+/-0.05mm
-
Size:
-
As per design or specification
-
Services:
-
Design, OEM&ODM
-
MOQ:
-
No limits
-
Packing:
-
Standard exporting packing
Quick Details
-
Processing Service:
-
Cutting, CNC machining
-
Place of Origin:
-
Guangdong China
-
Brand Name:
-
IDEAL
-
Model Number:
-
IDEAL-PEEK CNC -Parts, ideal-pk-379
-
Product name:
-
PEEK parts
-
Material:
-
100% virgin PEEK
-
Processing:
-
CNC machining or injection molding
-
Color:
-
natural
-
Tolerence:
-
+/-0.05mm
-
Size:
-
As per design or specification
-
Services:
-
Design, OEM&ODM
-
MOQ:
-
No limits
-
Packing:
-
Standard exporting packing
PEEK is a semi-crystalline,show high stiffness and hardness. and an unique high tensile strength and fatiue strength,Resistant to high-engery radiation.High abrasion and wear resistant.G
ood electrical insulator even at high voltages,and is characterised mainly by its very good mechanical properties and exceptional dimensional stability even continous operation at high temperatures of up to 250°C.
| PEEK performance index | |||||||
| test item | test standard | test condition | units | PEEK-1000 | PEEK-FC1030 | PEEK-G1030 | PEEK-C1030 |
| pure resin |
filled carbon fiber +graphite+PTFE (each 10%) |
filled 30% glass fiber |
filled 30% carbon fiber | ||||
| density | ISO 1183 | crystallization | g/cm³ | 1.3 | 1.44 | 1.51 | 1.4 |
|
Bibulous rate (3.2mm thick tensile bar immersion test) |
ISO 62-1 | 24h,23°C | % | 0.07 | 0.06 | 0.04 | 0.04 |
|
balance,23°C |
% | 0.4 | 0.3 | 0.4 | 0.3 | ||
| tensile strength | ISO-527 | bend, 23°C | MPa | 100 | 140 | 175 | 260 |
| elongation at break | ISO-527 | fracture,23°C | % | 45 | 2.2 | 2.7 | 1.7 |
| bending strength | ISO-178 | bend, 23°C | MPa | 165 | 190 | 265 | 380 |
| flexural modulus | ISO-178 | 23°C | GPa | 4.1 | 7.8 | 11.3 | 23 |
| compression strength | ISO-604 | 23°C | MPa | 125 | 155 | 250 | 300 |
|
charpy impact strength |
ISO 179/IeA |
notched | KJ/m² | 7 | 5 | 8 | 7 |
| ISO 179/IU | no notch | KJ/m² | 55 | 45 | |||
| cantilever beam impact test | ISO 180/A | notched | KJ/m² | 7.5 | 5 | 10 | 9 |
| ISO 180/U | no totch | KJ/m² | — | 60 | 45 | ||
| shore hardness | ISO 868 | 23°C | HD | 85 | 80 | 88 | 88 |
| melting point | ISO 11357 | — | °C | 343 | 343 | 343 | 343 |
| glass transition tempreture | ISO 11357 | initial point | °C | 143 | 143 | 143 | 143 |
| specific heat capacity | DSC | 23°C | KJ/kg °C | 2.2 | 1.7 | 1.7 | 1.8 |
| coefficient of thermal expansion | ISO 11359 | below T g along the flow direction | ppm/K | 45 | 18 | 5 | |
| overtop T g along the flow direction | ppm/K | 120 | 18 | 6 | |||
| distortion temperature | ISO 75-f | 1.8Mpa | °C | 152 | 300 | 315 | 315 |
| thermal conductivity | ISO 22007-4 | 23°C | W/mK | 0.29 | 0.3 | 0.3 | 0.95 |
| dielectrical strength | IEC 60243-1 | 2mm | KV/mm | 23 | 25 | — | |
| dielectric constant | IEC 60250 | 23°C, 1KH z | — | 3.1 | 3.2-3.4 | — | |
| 23°C, 50H Z | — | 3 | — | — | |||
| volume resistivity | IEC 60093 | 23°C, 1V | Ω•cm | 10 16 | 10 16 | — | |
| 275°C | Ω•cm | 109 | — | — | |||
| Item | PEEK custom product |
| Material | PEEK virgin,PEEK 30CA,PEEK 30GF,PEEK bearing grade(PEEK-HPV) |
| Color | white,black,brown,beige or according to customed |
| Size | according to customers' requirement,drawing will be highly appreciated |
| Weight | from0.1gram to 10kgs |
| Toletence | +/-0.05-0.1mm or according to different products |
| Processing | precision CNC machined |
Properties :
Working temperature:260-340 centigrade
Flame retadant:V-0.
Excellent dimension stability.
Good toughness and rigidity.
High hardness,excellent wear resistance.
Good insulation, anti-ydrolysis,radiation-resistant.
Industry Application :
1.Semiconductor machinery components.
2.Aerospace parts.
3.Sealing parts.
4.Pump and valve components.
5.Bearings/bushings/gears.
6.Electrical components.
7.Medical instrument parts.
8.Food processing machinery components.
9.Oil industry

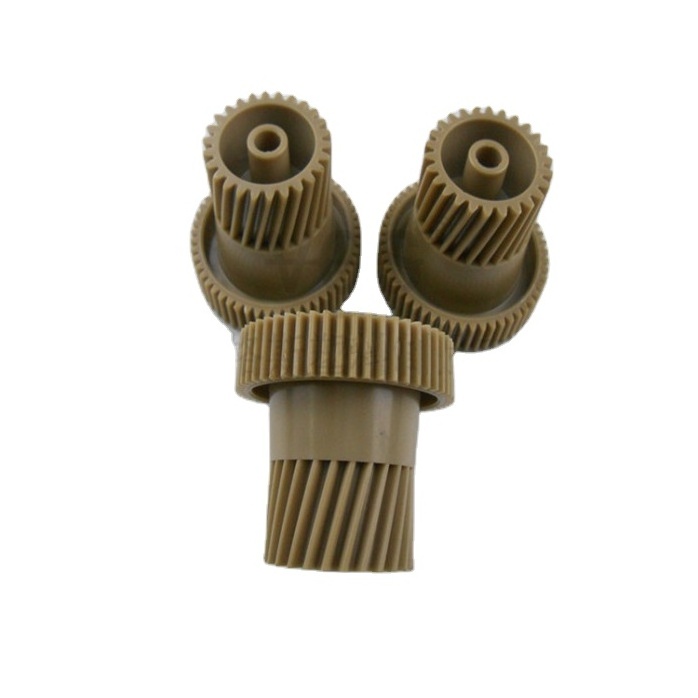

Product image
