Quick Details
-
Input:
-
GigE IP
-
Output:
-
GigE IP
-
Encoding formate:
-
H.264,h.263,mpeg4,mpeg2
-
Resolutions:
-
QSIF-1080p
-
Transcoding channels:
-
30 sd,6-10 hd
-
protocols:
-
rtsp,rtmp,udp,http,hls,ftp
-
Product name:
-
h264 iptv transcoder
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibsys
-
Model Number:
-
Caster-T322
-
Input:
-
GigE IP
-
Output:
-
GigE IP
-
Encoding formate:
-
H.264,h.263,mpeg4,mpeg2
-
Resolutions:
-
QSIF-1080p
-
Transcoding channels:
-
30 sd,6-10 hd
-
protocols:
-
rtsp,rtmp,udp,http,hls,ftp
-
Product name:
-
h264 iptv transcoder

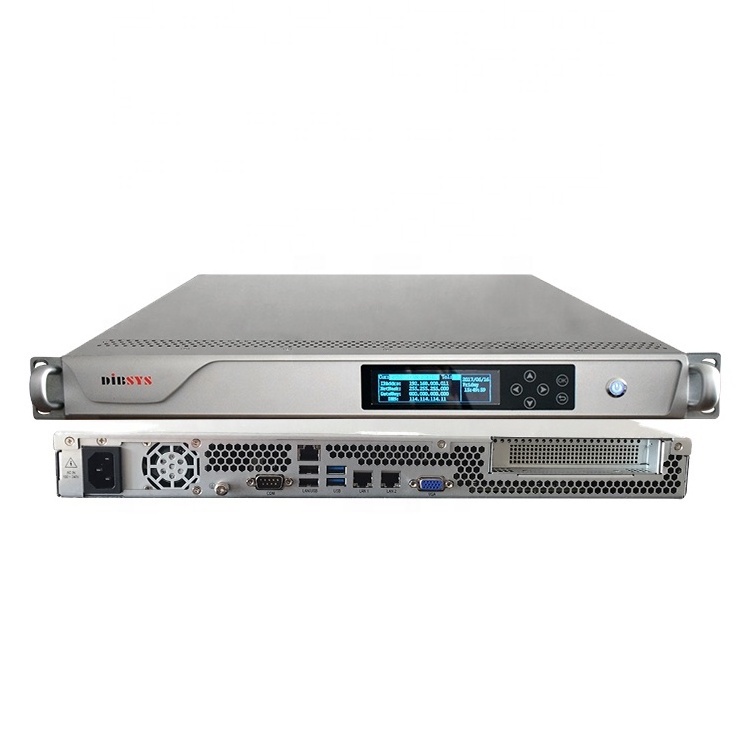

carrier grade h264 iptv transcoder 25 channels hardware solution
Caster-T322 answers all market requirements and is thus the suitable solution to Terrestrial, Satellite, Cable, IPTV networks. It is a real-time multi-channel/format transcoder can support 25*SD or 12*720p or 5*FullHD streams Simultaneously. It converts HD/SD streams to any H.264 or MPEG-2 format, bitrate and resolution. With the support for various encapsulation formats base on UDP, RTP/ RTSP, Pull/Push HTTP, RTMP, HLS protocols. The product can be configured to transcode up to 25 PIDs of H.264 video in a 1RU form factor, along with up to two audio PIDs per video PID. The hardware can be configured and licensed to upgrade H.264 to H.265/HEVC transcoding, easy for HEVC/H.265 video transcoding applications, reduce bandwidth usage, and save equipment costs.
Additional options for stream adaptation, such as deinterlacing, video scaling, frame rate conversion, and audio volume and sample rate conversion allow for serving set-top boxes, tablets, mobile phones and others.
Features
1.High density 1-RU platform can transcode up to 25*SD or 12*720p or 5*Full HD profiles
2.Optimized for 1500 Kbps for SD, 4Mbps for HD 720p,6Mbps for HD 1080p
3.Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application
4.Optional H.265 transcodes by software licensed
5.Baseline, main profile & high profile with variable GOP
6.Mulltiple Codec, Protocol, Bitrate,Resolution, Profile per channel
7.Picture-in-picture (PIP) operation supported
8.HD-to-SD down, SD-to-HD up conversion
9. GbE IP outputs –UDP, RTSP, RTMP,Pull/Push HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files
10.Flexible GOP structures with Reference-frame and B-frame edit
11.Frame rate down- and up-conversion
12.High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
13.Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency
14.Based on embedded Ubuntu Linux via flashdisk
15.DVB Subtitle and Logo insertion
16.High contrast LCD display
17.Parameter template settings and imports
18.Real time preview of input video stream in encoding and parameter configuration
19.Easy configuration via Web GUI
20.Designed for secure 24*365 operation
Main Application
1.Distribute HD Video to Ethernet
2.Transcoding low bitrate in limited bandwidth of Ethernet for Cable TV operator
3.IPTV live stream transcoding
4. Transcoding for multi-screens and devices
5.Small/Middle-Scale Headends for Multiple System Operators
|
Inputs and Outputs
|
|
|
|
|
Two Gig Ethernet Ports, RJ45 100/1000M - Auto Negot
|
|
|
|
MPEG-TS(MPTS ors SPTS) Over IP input
|
|
|
|
MPEG-2 TS (SPTS) Over IP out
|
|
|
|
TS Over UDP/RTP/HTTP
|
|
|
|
RTP over HTTP
|
|
|
|
FLV Over HTTP
|
|
|
|
RTMP
|
|
|
|
MP3 over HTTP
|
|
|
|
FLV
|
|
|
|
ASP
|
|
|
|
HTTP Live streaming Apple HLS (m3u8)
|
|
|
Pre-processing
|
|
|
|
LOGO insertion
Subtitle Overlay |
Option Static or roll subtitle, up to 3 way
|
|
|
Deinterlace
|
default, Close, Linear, Blend, Bob, Yadif
|
|
|
PID Configuration
|
PMT/Video/Audio PID;
|
|
|
|
PCR delay/disp interval
|
|
|
Advanced Processing
|
De-blocking filter, Scene detection, Automatic MBAFF,CABAC Entropy Encoding
|
|
|
Video Processing
|
|
|
|
Bitrate Control
|
VBR, CBR, ABR, NearCBR
|
|
|
Frame rate
|
2-30fps
|
|
|
Resolution
|
1920x1080p,1280x720p, 720x576p,720x480p, 640x480p, 480x360p, Auto
|
|
|
Screen Ratio
|
4:3, 16:9
|
|
|
Option
|
Multiple concurrent outputs per each encoding input
|
|
|
|
H.263 Profile Levels 10, 20, 30
|
|
|
|
MPEG-4 SP, Levels 0, 0b, 1, 2, 3
|
|
|
|
H.264 Baseline Levels 1, 2, 3
|
|
|
|
H.264 Main/High Profile 3.0- 5.1
|
|
|
Encoding delay
|
1000-2000ms
|
|
|
B-Frame
|
0-5
|
|
|
Reference Frame
|
1-6
|
|
|
Key frame rate
|
1-18
|
|
|
Video Bitrate
|
32kbps to 10Mbps
|
|
|
Enhancement filter
|
Deinterlacing; MABFF CABAC; Noise
|
|
|
|
reduction; Sharpening; Visual Optimizing
|
|
|
Video Delay
|
0-1000ms
|
|
|
Scale
|
Ordinary, Auto Paddingintelligent Scale
|
|
|
Fast Mode
|
Quality Priority,Balanced, Speed Priority
|
|
|
MPEG-2 Input
|
H.264 Output
|
Qty
|
|
SD/480i inputs @4 Mbps
|
SD @2Mbps, 480i
|
25
|
|
720p inputs @10 Mbps
|
720p @4Mbps
|
12
|
|
1080i/p inputs @18Mbps
|
1080p @ 6Mbps
|
5
|
|
Audio Encoding
|
|
|
|
Numbers of encoding
|
2 Channels via embedded in SDI
|
|
|
|
(Provides up to 8 audio channels for customization)
|
|
|
Audio encoding
|
AAC,AACv2,AMR
|
|
|
|
D Digital(AC-3)/D Digital Plus(EAC-3)
|
|
|
|
MP2A,MP3A,Transparent
|
|
|
Audio Channel
|
Single, Dual, 5.1 Channel
|
|
|
Audio Track
|
0, 1, 2, 3
|
|
|
AV Sync
|
0s, 0.5s, 1s, 3s, 4s, 5s, 6s
|
|
|
Sample rate
|
8khz to 48khz
|
|
|
Bitrate rate
|
8kbps to 384kbps
|
|
|
Volume
|
Ordinary,Intensity1,Intensity2,Intensity3
|
|
|
AGC
|
On, Off
|
|
|
Management
|
|
|
|
Local interface
|
LCD + control buttons
|
|
|
Configuration
|
Web Interface
|
|
|
Port
|
RJ45, 10/100/1000M BaseT
|
|
|
Language
|
English
|
|
|
Environment
|
|
|
|
Power Supply
|
110-240 VAC
|
|
|
Operation temperature
|
0~50℃ (32 -122°F)
|
|
|
Storage temperature
|
-40-70°C (-40-158°F)
|
|
|
Power Consumption
|
100W
|
|
|
Dimensions
|
483mm (W) x 534mm (L) x 45mm (H)
|
|
|
Weight
|
11kg (24lbs)
|
|
