Quick Details
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-AD241000
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
50-1000A
-
Product Name:
-

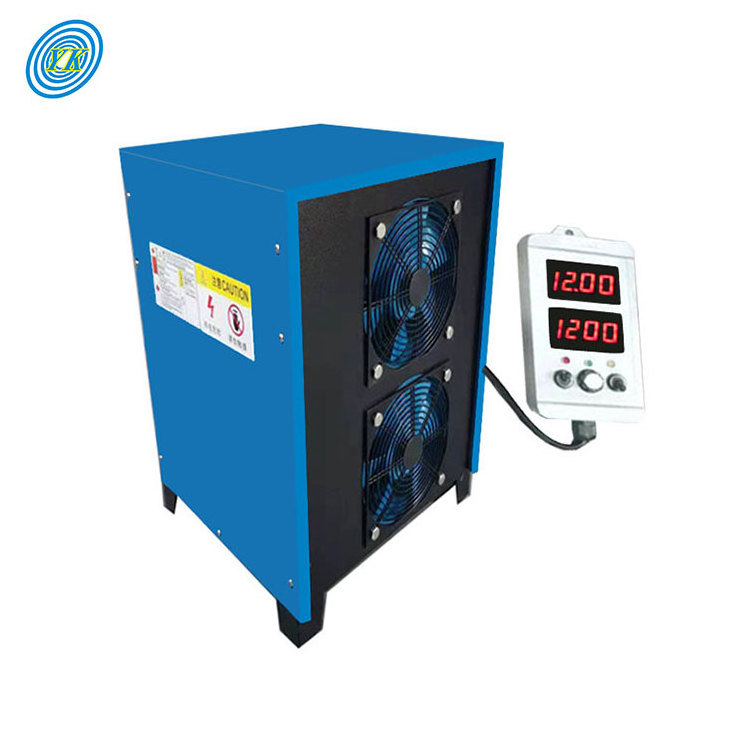

230v ac 24v dc rectifier electrophoresis power supply
-
Output range:
-
1-24Vdc 50-1000A
-
Output mode:
-
Constant voltage (or appointed);Constant current (or appointed)
-
Power:
-
Max 24000W
-
Display Type:
-
Digital display
-
Digital meter:
-
voltage meter and current meter
-
Protection:
-
output overvoltage, over-current and short-circuit protection
-
Cooling:
-
Water Cooling
-
MTTF:
-
≥50000h
-
over-temperature protection:
-
70℃
Quick Details
-
Input Voltage:
-
1phase AC110V/220v±15% /3 phase AC380V±15%
-
Output Voltage:
-
1-24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-AD241000
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
50-1000A
-
Product Name:
-
230v ac 24v dc rectifier electrophoresis power supply
-
Output range:
-
1-24Vdc 50-1000A
-
Output mode:
-
Constant voltage (or appointed);Constant current (or appointed)
-
Power:
-
Max 24000W
-
Display Type:
-
Digital display
-
Digital meter:
-
voltage meter and current meter
-
Protection:
-
output overvoltage, over-current and short-circuit protection
-
Cooling:
-
Water Cooling
-
MTTF:
-
≥50000h
-
over-temperature protection:
-
70℃
Products Description
Typical characteristics
1. High efficiency: the transformer is made of nanocrystalline soft magnetic material, with full-wave output, so as to reduce the hysteresis loss, and the conversion rate of the transformer is up to over 95%;
2. Corrosion resistance: the chassis is made of cold-rolled steel paint.Main electronic components are installed in the sealed box, all electronic components after insulation protection treatment;
3. Easy maintenance: main control circuit board, drive circuit board, operation panel port, using computer cable plug and pull design, simple, intuitive and convenient maintenance and maintenance;
4. Good effect: the machine output DC square wave, high frequency power filter circuit technology, improve the density of electricity, and apply more efficient and energy saving;
5. Surplus: electronic components and important components have surplus, continuous output power of 85% in various
environments.
environments.
Product Specifications
|
Brand
|
|
YUCOO
|
|
|
|||
|
Model
|
|
YK-AD241000
|
|
|
|||
|
Output range
|
|
1-24VDC 50-1000A
|
|
|
|||
|
Power
|
|
24000W
|
|
|
|||
|
Output mode
|
|
Constant voltage (or appointed) variable/adjustable
Constant current (or appointed) variable/adjustable |
|
|
|||
|
AC wide input
|
|
1phase AC220V±15% 50/60Hz
|
|
|
|||
|
Operation Environment temperature
|
|
(-10～45)℃
|
|
|
|||
|
Efficiency
|
|
85％
|
|
|
|||
|
Digital meter
|
|
voltage meter and current meter
|
|
|
|||
|
Digital display
|
|
Precision of output voltage±1.5%
Precision of output current±2.0% |
|
|
|||
|
Protection
|
|
over-temperature automatic protection; output overvoltage, over-current and short-circuit protection;
|
|
|
|||
|
over-temperature protection
|
|
70℃
|
|
|
|||
|
Cooling
|
|
Water Cooling/Air Cooling
|
|
|
|||
