Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon Machinery
-
Model Number:
-
/
-
Product name:
-
Horizontal Pulling Hydraulic Winch 20 Tons
-
Color:
-
Customer Requirement
-
Control method:
-
Hydraulic Control
-
Gear Type:
-
Planetary Gear
-
Winch Hydraulic Device:
-
Built-in type
-
Drum:
-
Single
-
Rope:
-
Steel wirerope or Stainless Rope
-
Speed:
-
Viriable by hydraulic control
-
Power source:
-
Standard hydraulic station
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
CRANES
-
Warranty:
-
1 years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon Machinery
-
Model Number:
-
/
-
Product name:
-
Horizontal Pulling Hydraulic Winch 20 Tons
-
Color:
-
Customer Requirement
-
Control method:
-
Hydraulic Control
-
Gear Type:
-
Planetary Gear
-
Winch Hydraulic Device:
-
Built-in type
-
Drum:
-
Single
-
Rope:
-
Steel wirerope or Stainless Rope
-
Speed:
-
Viriable by hydraulic control
-
Power source:
-
Standard hydraulic station

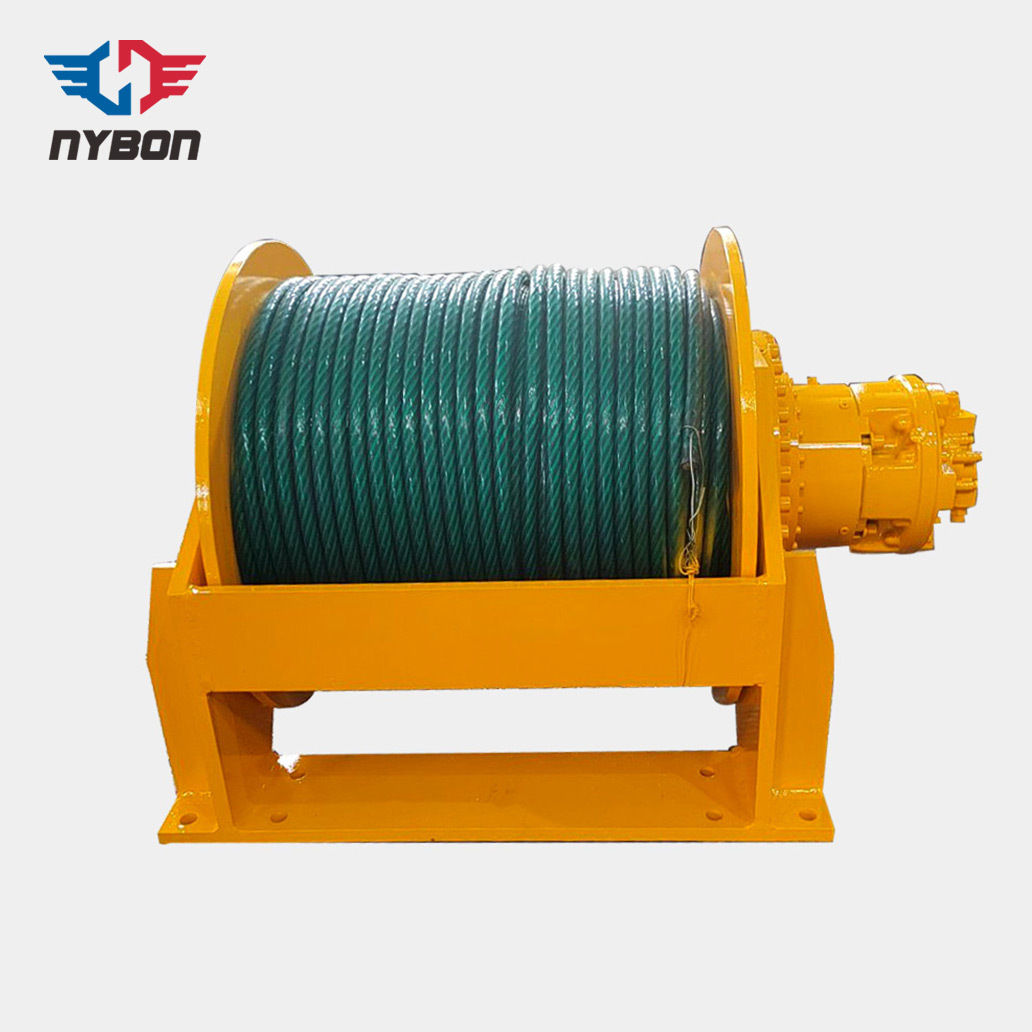

Horizontal Pulling Hydraulic Winch 20 Tons for Marine Barge
Nybon hydraulic winch is mainly composed of hydraulic motor (low speed or high speed motor), brake, gear box, drum, support shaft, frame, rope device (optional), etc.
Some hydraulic winches does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs, rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.
|
Model
|
Pulling Force
(kN)
|
Rated Speed
(m/min)
|
Total Displacement
(ml/r)
|
Working Pressure
(Mpa)
|
Diameter of Rope
(mm)
|
Rope Capacity
(m)
|
||||||
|
NYJ4-60-68-21.5
|
60
|
0-40
|
5428.5
|
16
|
21.5
|
68
|
||||||
|
NYJ5-80-100-24
|
80
|
0-40
|
9080
|
16
|
24
|
100
|
||||||
|
NYJ5-100-90-28
|
100
|
0-40
|
11039
|
16
|
28
|
100
|
||||||
|
NYJ7-200-150J-40
|
200
|
0-25
|
27434
|
17.8
|
40
|
150
|
||||||
|
NYJ79-300-155-44
|
300
|
0-16
|
57776
|
17
|
44
|
150
|
||||||
|
NYJ79-350-150-46
|
350
|
0.16
|
68768
|
16.8
|
46
|
200
|
||||||
|
NYJ79-400-145-48
|
400
|
0-16
|
79808
|
16.5
|
48
|
200
|
||||||
|
|
|
|
|
|
|
|||||||
