1. Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free.
2. Machine base is produced by CNC machine, and the machine base's five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.
3. The unique reality of the 3-axis screw, the machining accuracy is more accurate.
4. The router spindle is very high precision and water-cooled.
Which keeps the spindle at a constant temperature and maintains longevity.
5. The frame is a welded heavy steel tubular construction that supports all the other parts of the machine.
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QUICK
-
Voltage:
-
AC220V/1PH ,50HZ
-
Dimension(L*W*H):
-
600x900x150MM
-
Power (kW):
-
2.2
-
Weight (KG):
-
250
-
Product name:
-
cnc milling machine
-
Power(W):
-
2.2KW
-
Weight:
-
250KG
-
Control system:
-
DSP A11
-
Working area:
-
600X900X150mm
-
Motor:
-
Stepper
-
Inverter:
-
2.2kw Delta
-
Table:
-
T-slot working table
-
Software:
-
Artcam
-
Application:
-
Wood Working
Quick Details
-
Working Table Size(mm):
-
600*900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QUICK
-
Voltage:
-
AC220V/1PH ,50HZ
-
Dimension(L*W*H):
-
600x900x150MM
-
Power (kW):
-
2.2
-
Weight (KG):
-
250
-
Product name:
-
cnc milling machine
-
Power(W):
-
2.2KW
-
Weight:
-
250KG
-
Control system:
-
DSP A11
-
Working area:
-
600X900X150mm
-
Motor:
-
Stepper
-
Inverter:
-
2.2kw Delta
-
Table:
-
T-slot working table
-
Software:
-
Artcam
-
Application:
-
Wood Working

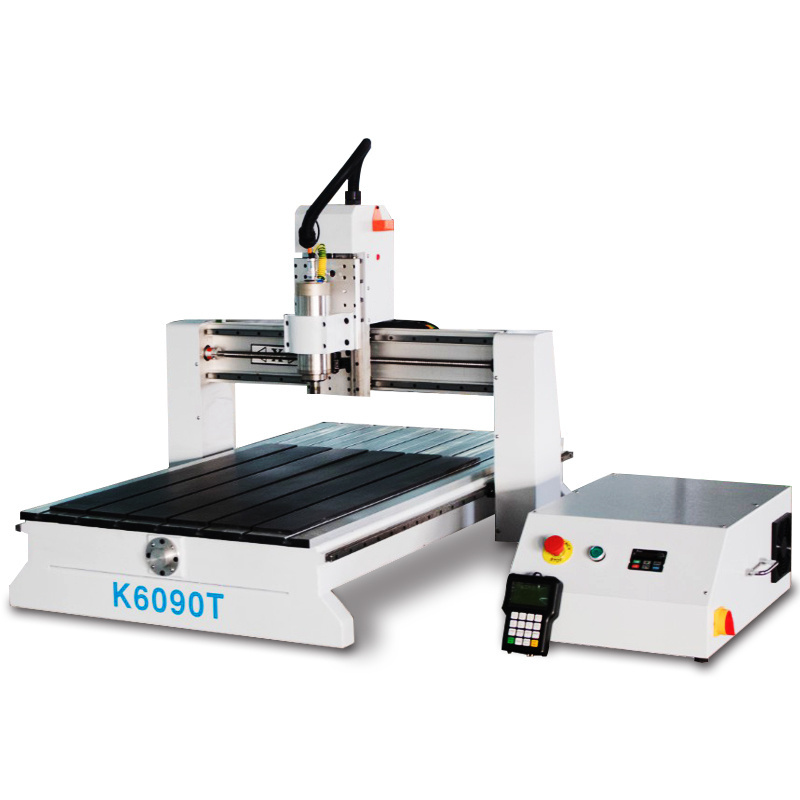

High precision pcb aluminum wood
6090 CNC router
china mini cnc milling machine for woodworking
Product Description
This is a hot selling machine , it is very suitable for CNC hobby friends, small woodworking shop and factories as well. Easy to operate, no need to much cost, and you can get a high quality small cnc router machine now.
Machine Features
Specification
|
Product name
|
K6090T mini cnc milling machine
|
|
XYZ axis working area
|
600 x 900x 150mm
|
|
Repositioning resolution
|
0.02mm
|
|
XY-movement
|
Ball screw
|
|
Machine Foot Print
|
39½ inchesX 50½ inches
|
|
Guide
|
Linear 15 square / Taiwan
|
|
Max. Speed
|
8m / min
|
|
Max. Cutting speed
|
5m / min
|
|
Spindle power
|
2.2kw water cooling
|
|
Spindle speed
|
6,000 – 24,000 RPM
|
|
Inverter power
|
2.2kw Delta
|
|
Tool Type
|
Manual
|
|
Drive motors
|
Stepper Motor
|
|
Working voltage
|
AC220V / 50-60Hz, 1-phase
|
|
Command code
|
G code
|
|
Computer interface
|
USB 2.0
|
|
Table
|
MDF T slot
|
|
Control system
|
DSP A11
|
|
Control type
|
Handheld
|
|
software
|
Artcam, Alphacam copy
|
|
Dust system
|
dust hood for spindle
|
Main parts
The accessories you will get:
Application
Using our machine to carve any wood crafts you want to process, like guitar, wood crafts,advertising board, aluminum. Mini 6090 cnc wood router will bring you a new processing experience. After using this machine, you will find that the original carving technique can be so exquisite, and the wood can also become a beautiful craft. We All the products of the machine are amazing.
