This KVM1325 model mix co2 laser cutting machine is a flatbed model laser cutter engraver for
cut
both metal and nonmetal material
, it can also
cut and engrave nonmetal material
.
The metal it can cut include
stainless steel and carbon steel
, the nonmetal it can cut and engrave include
acrylic, wood, leather, MDF, plywood plastic, fabric, etc
.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Thickness:
-
0-30mm, 3mm metal, 30mm non metal optional
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNKEVO
-
Weight (KG):
-
900 KG
-
Core Components:
-
Laser tube
-
Product Name:
-
Auto Feeding CNC Dual Head Fabric Cloth CO2 Laser Cutting Machines
-
Laser Power:
-
40W 60W 80W 100W 130W 150W 300W optional
-
Laser Tube:
-
Reci Yongli EFR optional
-
Cutting Size:
-
Length:90-300cm, width:60-250cm
-
Working Table:
-
Blade table / Honeycomb table
-
Cooling System:
-
Water Chiller Hanli or S&A
-
Power Suppply:
-
110V/220V/380V 50Hz/60Hz customized
-
Cutting Materials:
-
Acrylic MDF Plastic Fabric Wood Marble SS CS
-
Optional:
-
Rotary
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
12000mm
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Thickness:
-
0-30mm, 3mm metal, 30mm non metal optional
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNKEVO
-
Weight (KG):
-
900 KG
-
Core Components:
-
Laser tube
-
Product Name:
-
Auto Feeding CNC Dual Head Fabric Cloth CO2 Laser Cutting Machines
-
Laser Power:
-
40W 60W 80W 100W 130W 150W 300W optional
-
Laser Tube:
-
Reci Yongli EFR optional
-
Cutting Size:
-
Length:90-300cm, width:60-250cm
-
Working Table:
-
Blade table / Honeycomb table
-
Cooling System:
-
Water Chiller Hanli or S&A
-
Power Suppply:
-
110V/220V/380V 50Hz/60Hz customized
-
Cutting Materials:
-
Acrylic MDF Plastic Fabric Wood Marble SS CS
-
Optional:
-
Rotary
Product Description

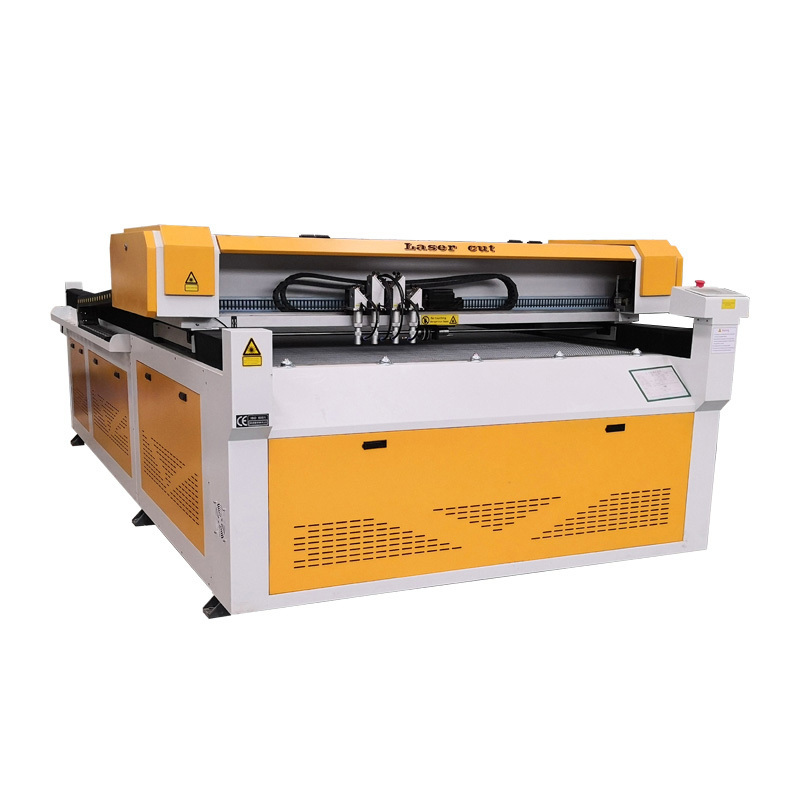

Mixed Metal And Nonmetal CO2 Laser Cutter
CO2 Laser Cutting Solution
JNKEVO CO2 laser cutter is a CNC laser machine that uses CO2 laser to engrave and cut wood, MDF, plywood, chipboard, die-board, cardboard, acrylic, fabric, jeans, plastic, leather, paper, ABS, EPM, PE, PES, PUR, PVB, PVC, PUR, PMMA, PTFE and thin metals, which is widely used in industrial manufacturing applications, school education, small businesses, home business, small shop and home shop.
A CO2 laser cutter is composed of laser cutter frame, laser cutting head, laser lens, laser mirror, laser generator, laser power supply, water chiller, control panel and CNC (Computer Numerical Controlled) system. CO2 laser cutter is also known as CO2 laser cutting machine, CO2 laser cutter machine, CO2 laser machine, CO2 laser cutting system, CO2 laser cutting equipment,Non-metal laser cutting machine, CO2 laser engraver, CO2 laser engraving machine, CO2 laser engraving cutting machine.
Drive system with high precision linear guide and slide block, high precision ,wear resistance, small resistance, high
speed;arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and small noise.
Red cross accurate position, convenient and quick in finding engraving and cutting position.
Equipment with automatic / manual modulation focused laser head, responsive and accurate to ensure sculpture quality.
Drive system with high precision linear guide and slide block, high precision ,wear resistance, small resistance, high
speed;arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and small noise.
Red cross accurate position, convenient and quick in finding engraving and cutting position.
Equipment with automatic / manual modulation focused laser head, responsive and accurate to ensure sculpture quality.
Mixed Metal And Nonmetal CO2 Laser Cutter KVM1325
Model: KVM1325
Working Area: 1300mm*2500mm/51.18in*98.43in
Laser Power: 100w 130w 150w 180w 260w 300w 350w
Tube: Glass tube or Metal tube.
Worktable: Honeycomb, Metal slate, up and down
Other Optional: Red dot pointer, rotary device with clips or roller
Model: KVM1325
Working Area: 1300mm*2500mm/51.18in*98.43in
Laser Power: 100w 130w 150w 180w 260w 300w 350w
Tube: Glass tube or Metal tube.
Worktable: Honeycomb, Metal slate, up and down
Other Optional: Red dot pointer, rotary device with clips or roller
80w 100w 130w 150w Autofeeding 1325 1525 1530 Co2 Laser Cutting Machine For Fabric, Leather, Cloth
Product Features
Humanized Design
The design can avoid environmental pollution and protect the health of the operator. The machine is of moderate height and can be opened from front to back, left and right, which confirm to the ergonomic design and is more convenient for operation.
Nonmetal Cutting Head
Nonmetal cutting. Professional RDCAM control system cutting control system.
Metal cutting head optional
Ball Screw Drive System
Screw drive makes the machine have higher precision and longer working life.
Product Details
The machine can be customized according to your requirements.
80w 100w 130w 150w Autofeeding 1325 1525 1530 Co2 Laser Cutting Machine For Fabric, Leather, Cloth
Specifications
|
Description
|
CO2 Laser Cutter Specifications
|
|
|
Model
|
KVM Series ( Metal & Nonmetal )
KVN Series ( Nonmetal )
|
|
|
Working area
|
400x600mm / 600x900mm / 900x1300mm / 1000x1600mm / 1300x2500mm / 1500x3000mm / 2000x3000mm
|
|
|
Laser power
|
50W / 60W / 80W /100W / 130W /
150W / 180W / 280W / 300W
|
|
|
Laser brand
|
Reci
|
|
|
Cooling type
|
Water cooling
|
|
|
Cutting speed
|
20m / min
|
|
|
Laser output
|
1 - 100% software setting
|
|
|
Positioning accuracy
|
±0.01mm
|
|
|
Power supply
|
AC 110/220V±10%, 50Hz/60Hz
|
|
|
Operating temperature
|
0 - 45℃
|
|
|
Operating humidity
|
5 - 95%
|
|
|
Smallest shaping character
|
1.0mm x 1.0mm
|
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
|
Software supported
|
Tajima, Corel Draw, Photoshop, Auto CAD
|
|
|
Driving system
|
Stepper
|
|
|
Color Separation
|
Yes
|
|
|
The machine can be customized according to your requirements,
please contact us for details
.
|
|
|
Application
CO2 Mixed Laser Cutting Machines Applications
Applicable industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoration, arts and crafts, electronics and electric appliances, r ubber,plastic,cloth toys,leather ,computer embroidery cutting, mold, crafts, bamboo and wood, advertising and building decoration, packaging and printing , paper products etc.
Applicable Materials:
Stainless steel, carbon steel, mild steel, wood, acrylic, leather, paper, poly methyl methotrexate, rubber, double color sheet and other nonmetal materials.
Model industry (construction models, aviation and navigation models and wooden toys), advertising, decoration, arts and crafts, electronics and electric appliances, r ubber,plastic,cloth toys,leather ,computer embroidery cutting, mold, crafts, bamboo and wood, advertising and building decoration, packaging and printing , paper products etc.
Applicable Materials:
Stainless steel, carbon steel, mild steel, wood, acrylic, leather, paper, poly methyl methotrexate, rubber, double color sheet and other nonmetal materials.
80w 100w 130w 150w Autofeeding 1325 1525 1530 Co2 Laser Cutting Machine For Fabric, Leather, Cloth
Recommend Products
FAQ
Warranty
3 years , and we offer a 24-hour online service.
Lead Time
Usually within 7 - 30 days after deposit, it depends on the product model.
Payment Term
1.
Alibaba Trade Assurance
(
recommended
)
2. TT bank transfer, 30% deposit , 70% balance before shipment.
3. LC at sight, Please contact us to determine the details of the terms.
3. LC at sight, Please contact us to determine the details of the terms.
Mode of Payment
Visa, Mastercard, PAYPAL, APPLE_PAY, GOOGLE_PAY TT bank transfer etc
Supported Currencies
USD, EUR, AUD, GBP, CAD, HKD, JPY, SGD, CNY. Please contact us for other currencies.
Accurate Price
Our products can be customized according to customer's requirements ( working size, power needed
etc ), and the package is also different depends on the quantity.
So it would be best to
contact with us for your detail requirements
, quantity, shipping address etc,
so that we can quote accurately according to your requirements.
Whether The Product Meet Your Requirements
We can take a
VIDEO
according to your requirements , so you can see our product and test result.
MOQ
The MOQ for each product is
ONE
unit.
Customization
We can customize products based on customer's requirements.
Delivery To Door
The machine can be delivered to door in some countries. Please provide your detailed address,
we will confirm and give you reply ASAP.
