- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HUAHONG
-
Motor Power:
-
4.5KW
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14 r/min
-
Water Supply Mode:
-
Pump
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
reverse rotation
-
Outline Dimension:
-
2940*2240*2880 mm
-
Weight (KG):
-
1950 kg
-
Product name:
-
Construction Equipment Concrete Mixer
Quick Details
-
Mixing Power:
-
5.5KW
-
Productivity:
-
15M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUAHONG
-
Motor Power:
-
4.5KW
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
14 r/min
-
Water Supply Mode:
-
Pump
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
reverse rotation
-
Outline Dimension:
-
2940*2240*2880 mm
-
Weight (KG):
-
1950 kg
-
Product name:
-
Construction Equipment Concrete Mixer
small JZM 350 self-loading concrete mixer cement
Introduction of concrete cement mixer
1 . JZM450 concrete cement mixer is a gravity type of double-conic reversing drum concrete mixer,It adopts rubber tug friction drive.
2. It consists of mixing mechanism, feeding mechanism, water supply system, chassis and electrical parts, etc.
3.Concrete cement mixer has the advantages of high production efficiency, excellent mixing quality, artistic outlook, light weight and convenience moving.
Advantages:
It has rational structure, high productivity, high quality mixing, and artistic
modeling and moving easily, and is a kind of advance machine model.
The application of concrete cement mixer
Concrete cement mixer applies to all kinds of large, middle and small scale prefabricated-component factory as well as industry and civil construction like highway railway bridge irrigation works dock and so on.

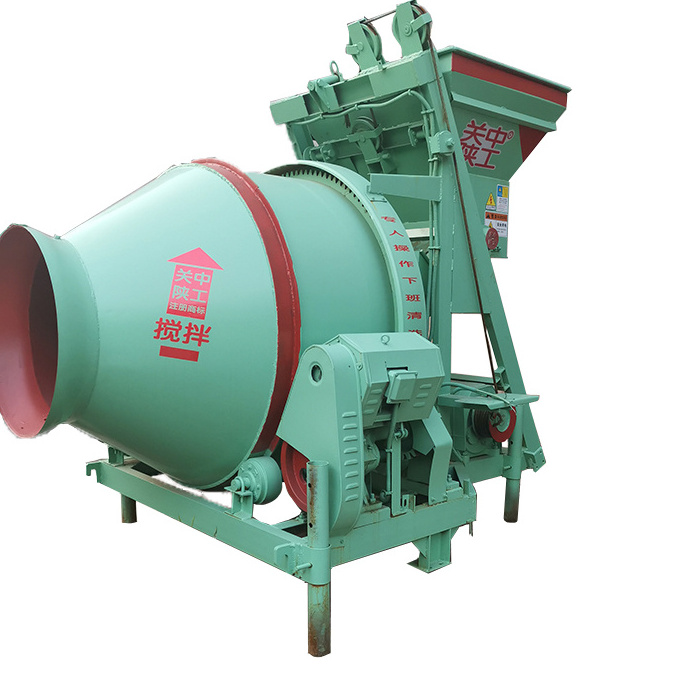

Detailed pictures of concrete cement mixer
Main technical parameters of concrete cement mixer
|
TYPE |
JZM350 |
JZM400 |
JZM450 |
JZM500 |
JZM750 |
|
Discharging Capacity |
350L |
400L |
450L |
500L |
750L |
|
Charging Capacity |
560L |
640L |
720L |
800L |
1200L |
|
Production Capacity |
13m³/h |
12-16 m³/h |
14-18 m³/h |
18-20 m³/h |
30-35 m³/h |
|
Drum rotating-speed |
15r/min |
14 r/min |
14 r/min |
15 r/min |
13 r/min |
|
Max.aggregate size |
60mm |
60mm |
60mm |
60mm |
80mm |
|
Water feeding precision |
≤2% |
≤2% |
≤2% |
≤2% |
≤2% |
|
Mixing Power |
5.5 kw |
5.5 kw |
5.5 kw |
2x5.5 kw |
2x7.5 kw |
|
Hoisting motor |
4.5 kw |
4.5 kw |
4.5 kw |
4.5 kw |
7.5 kw |
|
Water pump motor |
0.55kw |
0.55kw |
0.55kw |
1.1kw |
1.1kw |
|
Max. dragging speed |
20 km/h |
10-15km/h |
10-15km/h |
20 km/h |
20 km/h |
|
Dimension |
2766*2140 *3000mm |
2940*2240 *2880mm |
2940*2240 *2880mm |
5226*2200 *5460mm |
6116*2056 *6060mm |
|
Total weight |
1950kg |
2160kg |
2180kg |
4100kg |
5500kg |
Our concrete mixers are sold in Russia, Nigeria, Zambia, Armenia .
Our stationary concrete batching plants are sold in
Nigeria, Congo, Chile, Philippines.
Our mobile concrete batching plants are sold in Mongolia, Russia, Kazakhstan, Uzbekistan.
What's more, they have received praise with good quality and excellent after-sale service.
As a professional exporter, our target is to serve worldwide clients with high-quality products, great
reliability, devoted responsibility, professional services and honorable credibility to meet customers'
requirements in all aspects. Offer skillful after- sale-service specialists are available for all customers
at 7/24 hours every week.
