Quick Details
-
Model Number:
-
DT
-
Application:
-
cable laying up
-
Wire material:
-
cable
-
Motor:
-
A B B & Siemens
-
Bearing:
-
NSK
Quick Details
-
Use:
-
Twisting
-
Place of Origin:
-
China
-
Brand Name:
-
RLB
-
Model Number:
-
DT
-
Application:
-
cable laying up
-
Wire material:
-
cable
-
Motor:
-
A B B & Siemens
-
Bearing:
-
NSK
Product Description

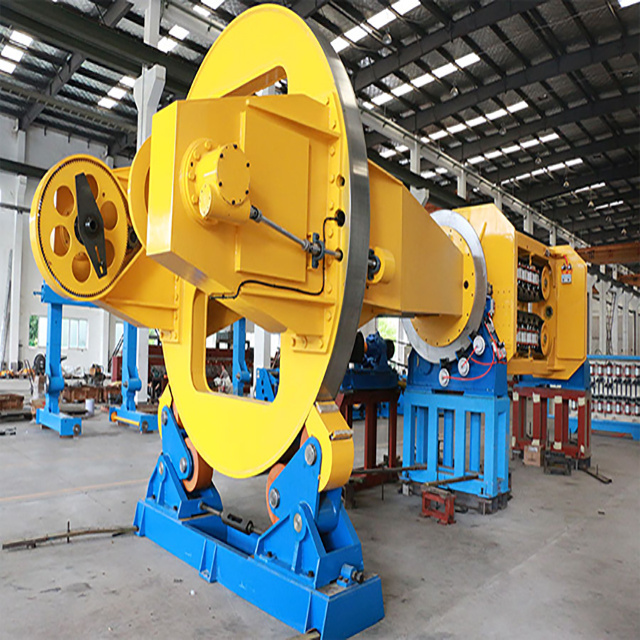

Drum twist Cabling machine is for 25-50-100 pairs of telephone cable (UD Type) stranding.This line is equipped with pay off unit which is for paying off ф500mm wires with 25-50-100 pairs cores, rotating caterpillar and rotating take up.
This line is also be able to equipped with rotating pay off device,Rotating caterpillar armoring steel wires passing plate and passing dies eyelets for power cable steel wires armoring producing(KD Type).
Technical Parameters
|
Model
|
|
2500
|
3150
|
3600
|
|
|
Maximum laying-up OD (mm)
|
|
Φ20～Φ120
|
Φ25～Φ130
|
Φ25～Φ130
|
|
|
Max. rotating speed of drum twist and pay off stand (r/m)
|
|
50
|
30
|
30
|
|
|
Cabling pitch (mm)
|
|
Step-less, adjustable
|
Step-less, adjustable
|
Step-less, adjustable
|
|
|
Maximum linear speed (m/min)
|
|
50
|
40
|
40
|
|
|
Maximum pulling force (kg)
|
Standard
|
3000
|
3000
|
3000
|
|
|
|
With 96pcs steel wire armoring
|
5000
|
5000
|
5000
|
|
|
Central pay off stand
|
|
PN2500
|
PN3150
|
PN3600
|
|
|
Pay off stand
|
|
PN1600
|
PN2000
|
PN2500
|
|
|
Take-up & twister specification
|
|
PN2500
|
PN3150
|
PN3600
|
|
|
Steel wire armoring device
|
|
PND500
|
PND630
|
PND630
|
|
|
Central height
|
|
1000
|
1000
|
1000
|
|
Packing & Delivery
Nude and wooden case packing
Shanghai Port
