Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
multi
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
AC380V/3PH/50Hz
-
Dimension(L*W*H):
-
2500*1800*1000mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1350
-
Product name:
-

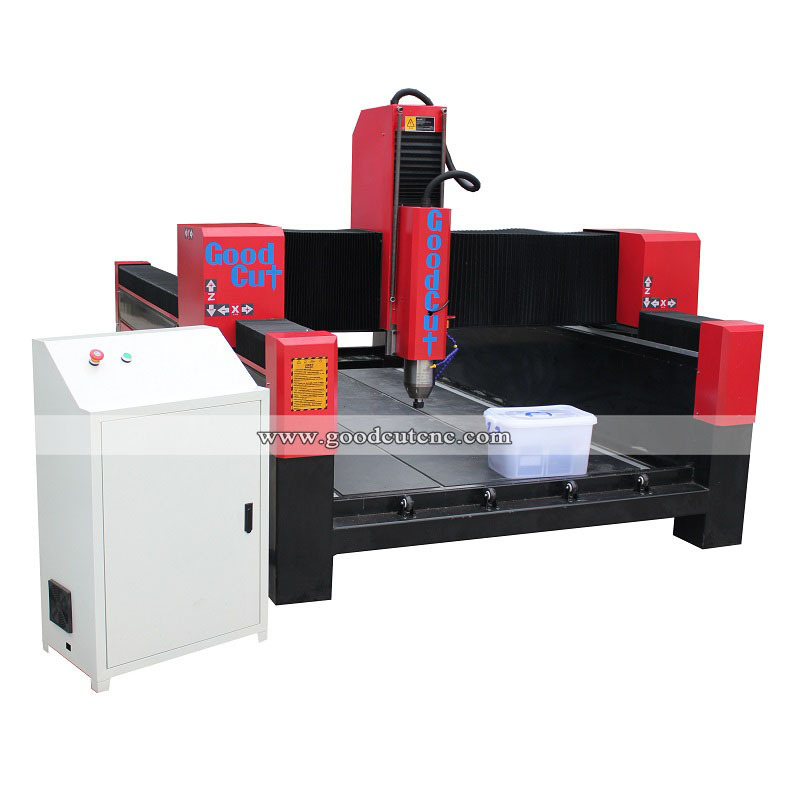

CNC Router Machine for Used Cutting Stone and Engraving
-
Working area:
-
1300x2500mm
-
Table Surface:
-
Aluminum Profile and PVC T-Slot Table
-
Control system:
-
Mach 3/DSP
-
Spindle:
-
4.5kw Water Cooling Spindle
-
Motor and driver:
-
Stepper Motor
-
Inverter:
-
Fuling/Best/Delta Inverter
-
Transmission:
-
Taiwan HIWIN Guide Rails, TBI ball screw
-
Table structure:
-
Heavy Duay Frame
-
Application:
-
Stone, marble, granite etc
Quick Details
-
Working Table Size(mm):
-
1300*2500*300mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
multi
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
AC380V/3PH/50Hz
-
Dimension(L*W*H):
-
2500*1800*1000mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
1350
-
Product name:
-
CNC Router Machine for Used Cutting Stone and Engraving
-
Working area:
-
1300x2500mm
-
Table Surface:
-
Aluminum Profile and PVC T-Slot Table
-
Control system:
-
Mach 3/DSP
-
Spindle:
-
4.5kw Water Cooling Spindle
-
Motor and driver:
-
Stepper Motor
-
Inverter:
-
Fuling/Best/Delta Inverter
-
Transmission:
-
Taiwan HIWIN Guide Rails, TBI ball screw
-
Table structure:
-
Heavy Duay Frame
-
Application:
-
Stone, marble, granite etc
Parameter:
|
Description |
Parameters |
|
Model |
GC-1325 stone cnc router |
|
Working Area |
1300x2500x300mm |
|
Spindle power |
5.5 KW |
|
Traveling Positioning Accuracy |
±0.03/300mm |
|
Repositioning Accuracy |
±0.03mm |
|
Table Surface |
Water tank with sprayer pipe |
|
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
|
Max. Power Consumption (Without spindle) |
5.5KW |
|
Max. Rapid Travel Rate |
15000mm/min |
|
Max. Working Speed |
12000mm/min |
| Cooling type | Water cooling connect with water pump |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
Stepper motor |
|
Working Voltage |
AC380V/50/60Hz,3PH |
|
Computer Interface |
USB |
|
Running Environment Temperature |
0°C~45°C |
|
Relative humidity |
30%~75% |
|
Delivery time |
7-10 working day |
Machine Features
1.The frames is welded by thick-walled rectangular steel and tempered at high temperature.
2.No deformation, high rigidity, with over 3 tons of load-bearing frame.
3.Taiwan imported rails and sliders--HIWIN, high precision, low noise, durable.
4.Transmission parts are imported rack with high precision and speed.
5.The machine cable and electrical adopts international famous brand, which makes the machine works in steady and high efficient condition.
6.Unique domestic water circulation system, energy saving and environment protection.
7.Newest design of triaxial enclosed totally, dustproof, waterproof.
Application:
1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.
2. Such as granite stone can be layered engraving to 3mm.
3. Marble, bluestone can be engraving to 3mm on time.
4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing, flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.
