Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YKndt
-
Model Number:
-
YK1730
-
camera lens:
-
23mm
-
testing cable:
-
20m
-
Certificate:
-
CE ISO
-
Resolution:
-
720x480
-
SD card:
-
32 GB
-
monitor size:
-
7 inches
-
Network:
-
wifi
-
Certification:
-
ce
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Waterproof / Weatherproof, Built-in Siren, Low Power
-
Function:
-
Waterproof / Weatherproof, NIGHT VISION, RESET, Wide Angle, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YKndt
-
Model Number:
-
YK1730
-
camera lens:
-
23mm
-
testing cable:
-
20m
-
Certificate:
-
CE ISO
-
Resolution:
-
720x480
-
SD card:
-
32 GB
-
monitor size:
-
7 inches
-
Network:
-
wifi
-
Certification:
-
ce

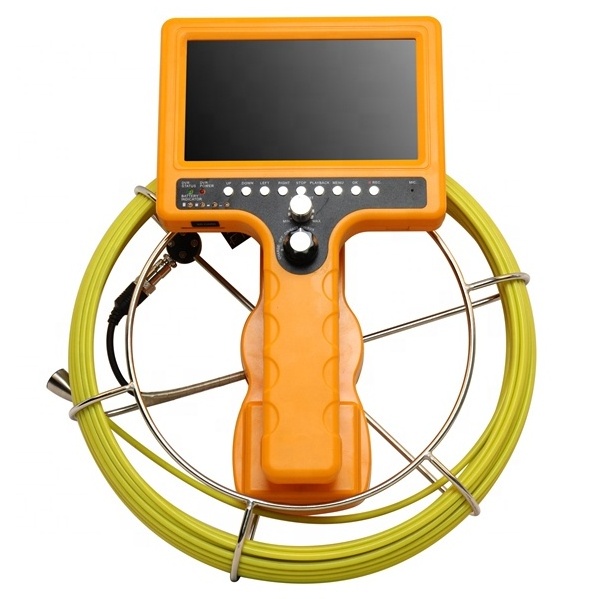

Sewer / Drain Inspection Camera Waterproof IP68 7.0'' Display Meter Counter 30mts Cable Reel 17mm Lens Sapphire Glass
Specifications :
Specifications:
|
Specification |
|
camera |
|
1. camera size: 23mmx1 2 0mm front probe length:4 5mm |
|
2. C amera case materia l: stainless steel house stainless steel 304 |
|
3. C amera glass materia l: sapphir e glass |
|
4. sensor size: 1/4 inch |
|
5. Total Pixels : PAL: 720X576 NTSC: 720X480 |
|
6. view angle: 120 ° |
|
7. camera light: 12PCS white LEDS |
|
8. Special gold point touch connector |
|
9. waterproof : IP68 |
|
10.camerawork current: 100MA camera power supply:DC 12V |
|
11. LEDS ADJUASTABLE |
|
12. W ork temperature : -10 ℃ -50 ℃ |
|
monitor |
|
1. monitor size: 7inch TFT color monitor |
|
2. monitor Total Pixels : 1440X234 |
|
3. monitor power supply: DC 12V |
|
4. OS language : English |
|
5. up, down left, right adjustable |
|
6. 16:9 4: 3 model |
|
7. sunshade include |
|
8. waterproof connector |
|
9. W ork temperature : -10 ℃ -50 ℃ |
|
DVR |
|
1. DVR power supply: 12V |
|
2. DVR work current: 200MA |
|
3. storage medium : SD card ( max 32G ) |
|
4. digital clock and digital calendar |
|
5. DVR Total Pixels : 720X576 (D1) |
|
6. picture snap and movie record |
|
7. movie format: AVI |
|
8. audio record (yes) |
|
9. double earphone output |
|
A udio input unit |
|
1. microphone |
|
2. clip type |
|
V ideo text input |
|
1. language : English |
|
2. keyboard interface 1 PS2keyboard |
|
3. keyboard interface 2 USB keyboard(need USB to PS2 connector) |
|
4. text on video( PAL and NTSC ) |
|
5. edit line : PAL 28 letter 15 line NTSC 26 letter 12 line |
|
6. max edit page: 4 page |
|
C able wheel |
|
C able size: 320MM( diameter )X110(h) |
|
Wire materia l: fiberglass rod |
|
F iberglass length: 30M( standard) |
|
F iberglass diameter : 4.8MM |
|
F iberglass color: yellow |
|
battery |
|
B attery type: 12V 4000MAH recharge able li – ion battery( 18650 ) |
|
U sed time : 7 hours |
|
charger |
|
I nput: AC90-260V output: DC 12V 1000MA |
|
O utput cable length: 1.5M |
|
DC plug diameter : 2.1MM |
|
box |
|
box materia l : fire protection |
|
B ox size: 48cm x 39cm x 19.5cm |
|
|
|
SKIDS size |
|
1. SKIDS1: Φ 40MM |
|
2. SKIDS2: Φ 80MM |
|
|
|
W eight and cartoon size |
|
net weight : 7.5KG |
|
gross weight : 8.5KG |
|
Single package size |
|
D ouble package size |
