hydraulic BOP (blowout preventer) for oil & gas wellhead control equipment

FOB Reference Price: Get Latest Price

≥1 Pieces

US $9000

≥100 Pieces

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certification:: API

Quick Details

Place of Origin:: Shandong, China

Brand Name:: ZHAOXIN

Model Number:: hydraulic BOP

Certification:: API

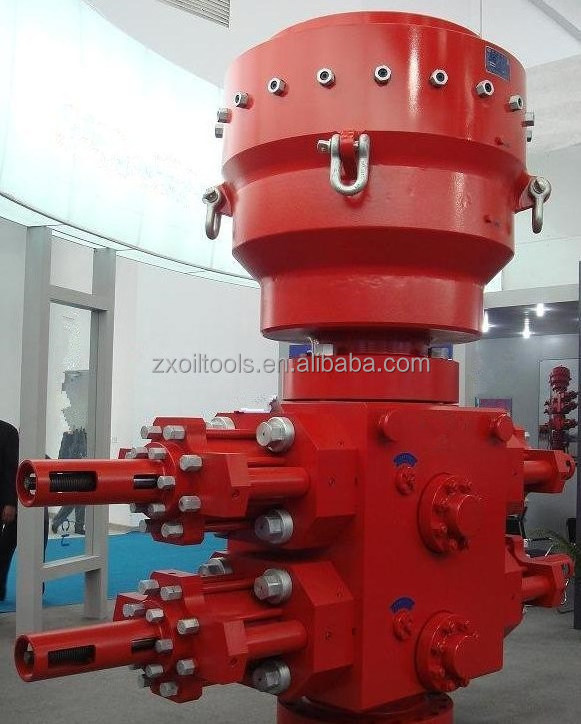

API 16A hydraulic BOP (blowout preventer) for oil & gas wellhead control equipment

Product Description

The hydraulic BOP stack is used for sealing the annular space between casing and drilling string, or fully sealing wellhead and controlling well pressure during drilling, workovering and testing operation. The product is designed and manufactured in strict accordance with API Spec 16A and China petroleum industry standard.

According to practice, different sizes of rams, blind rams or shear rams can be used in ram BOP. The ram can be locked manually or hydraulically. The annular BOP has two types of rubber sealing element: spherical and tapered. It can seal different sizes and shapes of pipe string and drill tools, and also close an empty hole. The diverter is used to control the fluid in the low pressure well, divert and release the fluid according the specified pipeline when the surface hole drilling is made. All these parts contacting the fluid inside the BOP stack can resist the stress corrosion of hydrogen sulfide (H2S).

Item	Type	Specification
1	7-1/16″-3000psi Double ram BOP	Bore: 7-1/16″
		Working pressure: 3,000psi
		Top connection: 7-1/16″-3000psi 6B R45 SST Studded
		Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
2	7-1/16″-5000psi Double ram BOP	Bore: 7-1/16″
		Working pressure: 5,000psi
		Top connection: 7 1/16″-5000psi 6B R46 SST Studded
		Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged
3	7-1/16″-10000psi Double ram BOP	Bore: 7-1/16"
		Working pressure: 10000psi
		Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded
		Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged
4	7-1/16″-15000psi Double ram BOP	Bore: 7-1/16″
		Working pressure: 15,000psi
		Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded
		Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
5	9″-3000psi Double ram BOP	Bore: 9″
		Working pressure: 3,000psi
		Top connection: 9″-3000psi 6B R49 SST Studded
		Bottom connection: 9″-3000psi 6B R49 SST Flanged
6	9″-5000psi Double ram BOP	Bore: 9″
		Working pressure: 5,000psi
		Top connection: 9″-5000psi 6B R50 SST Studded
		Bottom connection: 9″-5000psi 6B R50 SST Flanged
7	9″-10000psi Double ram BOP	Bore: 9″
		Working pressure: 10,000psi
		Top connection: 9-″10000psi 6BX BX157 SST Studded
		Bottom connection: 9″-10000psi 6BX BX157 SST Flanged
8	11″-3000psi Double ram BOP	Bore: 11″
		Working pressure: 3,000psi
		Top connection: 11″-3000psi 6B R53 SST Studded
		Bottom connection: 11″-3000psi 6B R53 SST Flanged
9	11″-5000psi Double ram BOP	Bore: 11″
		Working pressure: 5,000psi
		Top connection: 11″-5000psi 6B R54 SST Studded
		Bottom connection: 11″-5000psi 6B R54 SST Flanged
10	11″-10000psi Double ram BOP	Bore: 11″
		Working pressure: 10,000psi
		Top connection: 11″-10000psi 6BX BX158 SST Studded
		Bottom connection: 11″-10000psi 6BX BX158 SST Flanged
11	11″-15000psi Double ram BOP	Bore: 11″
		Working pressure: 15,000psi
		Top connection: 11″-15000psi 6BX BX158 SST Studded
		Bottom connection: 11”-15000psi 6BX BX158 SST Flanged
12	13-5/8″-3000psi Double ram BOP	Bore: 13 5/8″
		Working pressure: 3,000psi
		Top connection: 13 5/8″-3000psi 6B R57 SST Studded
		Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged
13	13-5/8″-5000psi Double ram BOP	Bore: 13 5/8″
		Working pressure: 5,000psi
		Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
		Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged
14	13-5/8″-10000psi Double ram BOP	Bore: 13 5/8″
		Working pressure: 10,000psi
		Top connection: 13 5/8″-10000psi 6BX BX159 SST Studded
		Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged
15	13-5/8″-15000psi Double ram BOP	Bore: 13 5/8″
		Working pressure: 15,000psi
		Top connection:13 5/8″-15000psi 6BX BX159 SST Studded
		Bottom connection:13 5/8″-15000psi 6BX BX159 SST Flanged
16	16-3/4″-5000psi Double ram BOP	Bore: 16 3/4″
		Working pressure: 5,000psi
		Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded
		Bottom connection: 16 3/4″-5000psi 6BX BX162 SST Flanged
17	16-3/4″-10000psi Double ram BOP	Bore: 16 3/4″
		Working pressure: 10,000psi
		Top connection: 16 3/4″-10000psi 6BX BX162 SST Studded
		Bottom connection: 16 3/4″-10000psi 6BX BX162 SST Flanged
18	18-3/4″-5000psi Double ram BOP	Bore: 18 3/4″
		Working pressure: 5,000psi
		Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded
		Bottom connection: 18 3/4″-5000psi 6BX BX163 SST Flanged
19	18-3/4″-10000psi Double ram BOP	Bore: 18 3/4″
		Working pressure: 10,000psi
		Top connection: 18 3/4″-10000psi 6BX BX164 SST Studded
		Bottom connection: 18 3/4″-10000psi 6BX BX164 SST Flanged
20	18-3/4″-15000psi Double ram BOP	Bore: 18 3/4″
		Working pressure: 15,000psi
		Top connection: 18 3/4″-15000psi 6BX BX164 SST Studded
		Bottom connection: 18 3/4″-15000psi 6BX BX164 SST Flanged
21	20-3/4″-3000psi Double ram BOP	Bore: 20 3/4″
		Working pressure: 3,000psi
		Top connection: 20 3/4″-3000psi 6B R74 SST Studded
		Bottom connection: 20 3/4″-3000psi 6B R74 SST Flanged
22	21-1/4″-2000psi Double ram BOP	Bore: 21 1/4″
		Working pressure: 2,000psi
		Top connection: 21 1/4″-2000psi 6B R73 SST Studded
		Bottom connection: 21 1/4″-2000psi 6B R73 SST Flanged
23	21-1/4″-5000psi Double ram BOP	Bore: 21 1/4″
		Working pressure: 5,000psi
		Top connection: 21 1/4″-5000psi 6B BX165 SST Studded
		Bottom connection: 21 1/4″-5000psi 6B BX165 SST Flanged
24	21-1/4″-10000psi Double ram BOP	Bore: 21 1/4″
		Working pressure: 10,000psi
		Top connection: 21 1/4″-10000psi 6B BX166 SST Studded
		Bottom connection: 21 1/4″-10000psi 6B BX166 SST Flanged
25	26-3/4″-2000psi Double ram BOP	Bore: 26 3/4″
		Working pressure: 2,000psi
		Top connection: 26 3/4″-2000psi 6B BX167 SST Studded
		Bottom connection: 26 3/4″-2000psi 6B BX167 SST Flanged
26	26-3/4″-3000psi Double ram BOP	Bore: 26 3/4″
		Working pressure: 3,000psi
		Top connection: 26 3/4″-3000psi 6B BX168 SST Studded
		Bottom connection: 26 3/4″-3000psi 6B BX168 SST Flanged
