Quick Details
-
Brand Name:
-
labfreez
-
Voltage:
-
380/50Hz,120V/60Hz
-
Dimension(L*W*H):
-
various
-
Weight:
-
800 KG
-
Power:
-
6500-30000W
-
Working Temperature Range:
-
- 5 ~ - 150
Quick Details
-
Core Components:
-
compressor
-
Condition:
-
new
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
labfreez
-
Voltage:
-
380/50Hz,120V/60Hz
-
Dimension(L*W*H):
-
various
-
Weight:
-
800 KG
-
Power:
-
6500-30000W
-
Working Temperature Range:
-
- 5 ~ - 150

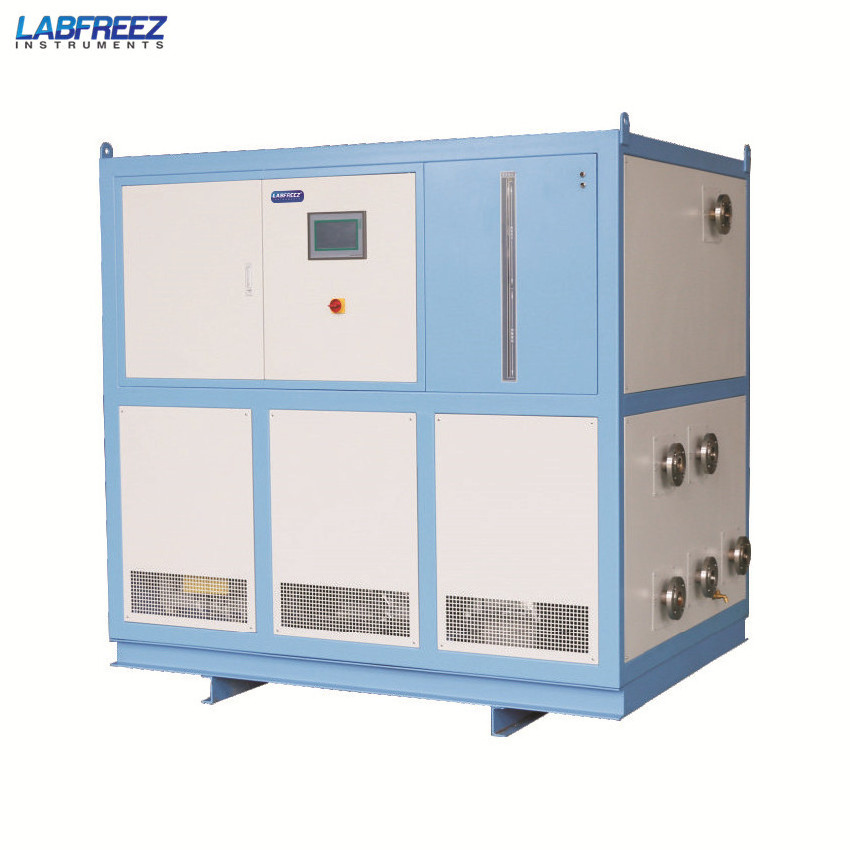

Rapid Cooling For The Liquid, Widely Used In Petrochemical, Medical, Pharmaceutical, Biochemical And Freeze-Dried, Military And Other High-Tech Industries.
Features
1. Temperature ranges from - 5 ~ - 150 degrees, can meet different temperature
2. Wide cooling temperature range, can meet different requirements
3. Used environmental protection refrigerants
4. Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK. Bitzer, Copeland, Hanbell, fusheng; Plate heat exchanger, Small volume, High efficiency
5. Top imported cold controller(DANFOSS pressure controller, balance valve, expansion valve, solenoid valve, filter drier, Emerson oil separator, ALCO liquid mirror, check valve, etc.)
6. Generator cooling water circuit use intermediate heat exchanger, improve system reliability and safety.
7. DANFOSS electronic expansion valve, high precision control;
8. Adopt Siemens PLC S7-200/300, LABFREEZ touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm;
9. Large cooling capacity adopts semi-hermetic screw compressor, electronic expansion valve control, high efficiency and energy saving;
10. Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water;
11. Factory testing: each refrigerating unit is on load test of not less than 12 hours in the factory.
Technical Parameters:
|
Common |
|
|
Compressor
|
Standard: HANBELL screw compressor
|
|
Operation Panel |
7-inch color touch screen display, temperature curve record, data export to excel format. |
|
Control System |
Standard: Single-chip microcomputer controller; Stepping control; Set temperature difference of refrigeration on & off.
|
|
Closed
|
The whole system is a full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature,
|
|
Circulation pump |
Standard: Direct type magnetic pump
|
|
Evaporator |
Standard: Braze welding plate heat exchager (BPHE)
|
|
Condenser |
Shell and tube type water cooled condenser |
|
Intermediate heat exchanger |
KAORI Plate heat exchanger |
|
Dry Filter |
Emerson |
|
Drying filter core |
Emerson |
|
Expansion tank |
Emerson |
|
FDF |
Emerson |
|
Oil separator |
Emerson |
|
Pressure protector |
Emerson |
|
Reservoir |
Standard: RSP Optional: Emerson |
|
Sight glass |
Standard: SANHUA Optional: Danfoss |
|
Refrigeration ball valve |
Standard: SANHUA Optional: Danfoss |
|
Electric |
Schneider AC contactor, Schneider intermediate relay |
|
Refrigerant |
R404A |
|
Secondary refrigerant |
No corrosive liquid, ethanol water, ethylene glycol aqueous solution, heat transfer oil etc. |
|
Safety protection |
High pressure protect; Water supply cut-off protection; Over-current protection; Leakage protection;
|
|
Level Indicator |
Adpot glass liquid level indication |
|
Piping material |
SUS304 |
|
Expansion tank material |
SUS304 |
|
Case material |
Steel channel + Square tube + Cold-rolled blanking plate painting |
|
Model |
ILRC-25-12W |
ILRC-25-20W |
ILRC-25-30W |
ILRC-25-40W |
ILRC-25-60W |
|
Temperature Range °C |
-25°C~ 5°C |
||||
|
Cooling Capacity At -20°C |
12kW |
20kW |
30kW |
40kW |
60kW |
|
10320Kcal/h |
17200Kcal/h |
25800Kcal/h |
34400Kcal/h |
51600Kcal/h |
|
|
Circulation Pump |
6.6m³/h
|
9m³/h
|
15m³/h
|
15m³/h
|
25m³/h
|
|
Inlet&outlet connection size |
DN-25 PN-10 |
DN-25 PN-10 |
DN-32 PN-10 |
DN-32 PN-10 |
DN-40 PN-10 |
|
Water-cooled type W(cooling water at 30°C) |
8m³/h |
10m³/h |
16m³/h |
20m³/h |
25m³/h |
|
Cold storage tank(optional) |
200L |
350L |
500L |
750L |
1000L |
|
Expansion tank(standard) |
100L |
175L |
250L |
350L |
500L |
|
Product size |
160*100*165 |
160*100*165 |
180*120*175 |
180*120*175 |
205*145*175 |
|
Power |
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
|
HP |
12HP |
15HP |
25HP |
35HP |
50HP |
|
dB |
75DB |
Within80dB |
|||
|
Weight |
800kg |
950kg |
1200kg |
1350kg |
1500kg |
|
Model |
ILRC-25-80W |
ILRC-25-120W |
ILRC-25-180W |
ILRC-25-240W |
ILRC-25-360W |
|
Temperature Range °C |
-25°C~ 5°C |
||||
|
Cooling Capacity At -20°C |
80kW |
120kW |
180kW |
240kW |
360kW |
|
68800Kcal/h |
103200Kcal/h |
154800Kcal/h |
206400Kcal/h |
309600Kcal/h |
|
|
Circulation Pump |
25m³/h
|
25m³/h
|
35m³/h
|
35m³/h
|
50m³/h
|
|
Inlet & outlet connection size |
DN-40 PN-10 |
DN-40 PN-10 |
DN-50 PN-10 |
DN-50 PN-10 |
DN-65 PN-10 |
|
Water-cooled type W(cooling water at 30°C) |
30m³/h |
38m³/h |
55m³/h |
70m³/h |
100m³/h |
|
Cold storage tank(optional) |
1200L |
1500L |
2200L |
3000L |
4000L |
|
Expansion tank(standard) |
600L |
750L |
1000L |
1350L |
1800L |
|
Product size |
235*145*175 |
245*145*205 |
350*150*205 |
350*150*205 |
450*200*205 |
|
Power |
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
380V 50HZ
|
|
HP |
70HP |
100HP |
150HP |
200HP |
300HP |
|
dB |
Within90dB |
||||
|
Weight |
1800kg |
2400kg |
3100kg |
3600kg |
5000kg |
