Quick Details
Quick Details
-
Weight (KG):
-
4080
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINQUNLI
Product Types
XINQUNLIN MACHINERY Co., Ltd
PIONEER OF THE SOFA & SOFT BED MAKING MACHINERY INDUSTRY
Automatic Woodworking Machinery
Sponge/Foam
Cutting Machinery
Fiber Opening & Filling Machinery
Product Details
Product Components
●

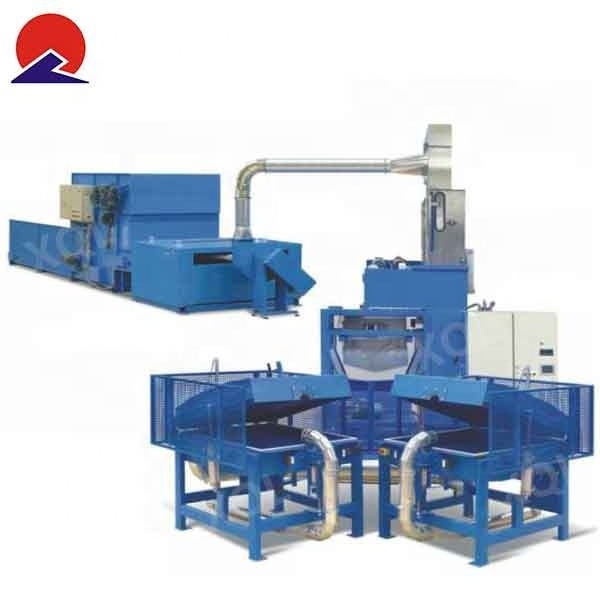

This production line is only used to fill pillows, the fiber filling effect is softer, suitable for home textile industry but not the sofa industry.
●
We adopt the advanced technic PLC CONTROL，only need one person can operate to complete whole producing process：automatic feeding→carding→automatic weighting→ filling.
Its production capacity can be up to 180---200pcs/h pillows.
A. Bale Opener Machine
C. Feeding/Sucking Fan
----------- convey the opened/carded fiber material to the next process .
D. Automatic Weighing Fiber System
----------- it will replace the manual use of machine systems to accurately weigh a certain weight of fiber materials.
E. Vacuum Machine
----------- it utilizes the principle of vacuum to extract air from the fiber material .
F. Vacuum Fiber Filling Machine
----------- place the pillowcase in the ballast and close the lid, the fiber material will be automatically sucked in .
-----------
deliver the fiber material automatically,
saving labors
.
B. Fiber Carding Machine
-----------suitable for different kinds of short fibers(wool,cotton,polyster)carding and puff.
-----------suitable for different kinds of short fibers(wool,cotton,polyster)carding and puff.
C. Feeding/Sucking Fan
----------- convey the opened/carded fiber material to the next process .
D. Automatic Weighing Fiber System
----------- it will replace the manual use of machine systems to accurately weigh a certain weight of fiber materials.
E. Vacuum Machine
----------- it utilizes the principle of vacuum to extract air from the fiber material .
F. Vacuum Fiber Filling Machine
----------- place the pillowcase in the ballast and close the lid, the fiber material will be automatically sucked in .
Different Combination of Production Line
●
The above production line is an example of the best solution we have designed for customers in reality
.
We will design a series of production lines that are most suitable for you based on your production volume, factory space, capital budget, labor efficiency, etc., to save the lowest production cost with the highest cost-effectiveness.
Parameter
|
Bale Opener Machine
|
|
|
|
|
|
|||||
|
Model Number
|
Feed Width
|
Discharge Width
|
Power
|
Machine Size
|
Machine Weight
|
|||||
|
ESF005K-1B
|
1000mm
|
790/990mm
|
(1.1+1.1+1.1)kw
|
3800x1300x2100mm
|
1000kg
|
|||||
|
|
|
|
|
|
|
|||||
|
Fiber Carding Machine
|
|
|
|
|
|
|||||
|
Model Number
|
Feed Width
|
Capacity
|
Power
|
Machine Size
|
Machine Weight
|
|||||
|
ESF005A-1A
|
560mm
|
150~180kg/h
|
4.4kw
|
2200x880x1020mm
|
500kg
|
|||||
|
|
|
|
|
|
|
|||||
|
Feeding/Sucking Fan
|
|
|
|
|
|
|||||
|
Model Number
|
|
Power
|
|
Machine Size
|
Machine Weight
|
|||||
|
ESF005-4B
|
|
3kw
|
|
700x600x900mm
|
80kg
|
|||||
|
|
|
|
|
|
|
|||||
|
Automatic Weighing Fiber System
|
|
|
|
|
|
|||||
|
Model Number
|
Capacity
|
Air Pressure
|
Power
|
Machine Size
|
Machine Weight
|
|||||
|
ESF005E-3A
|
150~200kg/h
|
0.4mpa
|
0.75*4kw
|
2500x1300x3800mm
|
1350kg
|
|||||
|
|
|
|
|
|
|
|||||
|
Vacuum Fiber Filling Machine
|
|
|
|
|
|
|||||
|
Model Number
|
Capacity
|
Air Pressure
|
Power
|
Machine Size
|
Machine Weight
|
|||||
|
ESF005E-2A
|
/
|
0.6~0.8mpa
|
0.75*4kw
|
1400x1200x1500mm
|
800kg
|
|||||
|
|
|
|
|
|
|
|||||
|
Vacuum Machine
|
|
|
|
|
|
|||||
|
Power
|
Weighing Value
|
Machine Size
|
Voltage
|
Machine Weight
|
|
|||||
|
15kw
|
60kg
|
1400x1200x1500mm
|
220V/50HZ
|
200kg
|
|
|||||
Application
Pine doll cotton/PP cotton/Non-woven polyester fiber/Wool/Glue cotton/Silk floss
Pillow
