China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector
China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector
China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector
China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector
China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector
China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector
China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector
China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector

China Heavy Duty Dry and Wet Industrial Central Vacuum Cleaner / Dust Collector

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1000
≥10 Pieces
US $800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
550*550*1110mm
Weight:
250kg
Product name:
Robot Welding Fume Extractor
After-sales Service Provided:
Video Technical Support, Online support
Power:
2.2kw
Voltage:
Three Phase 380v/50hz
AIr Volume:
300 M3
Color:
White/blue
Filter clean type:
Auto cleaning
Filter type:
bag filter
Certification:
CE/ISO9001/14001/18001

Quick Details

Minimum Particle Size:
0.3um
Place of Origin:
Shandong, China
Brand Name:
Loobo
Dimension(L*W*H):
550*550*1110mm
Weight:
250kg
Product name:
Robot Welding Fume Extractor
After-sales Service Provided:
Video Technical Support, Online support
Power:
2.2kw
Voltage:
Three Phase 380v/50hz
AIr Volume:
300 M3
Color:
White/blue
Filter clean type:
Auto cleaning
Filter type:
bag filter
Certification:
CE/ISO9001/14001/18001
Product Description

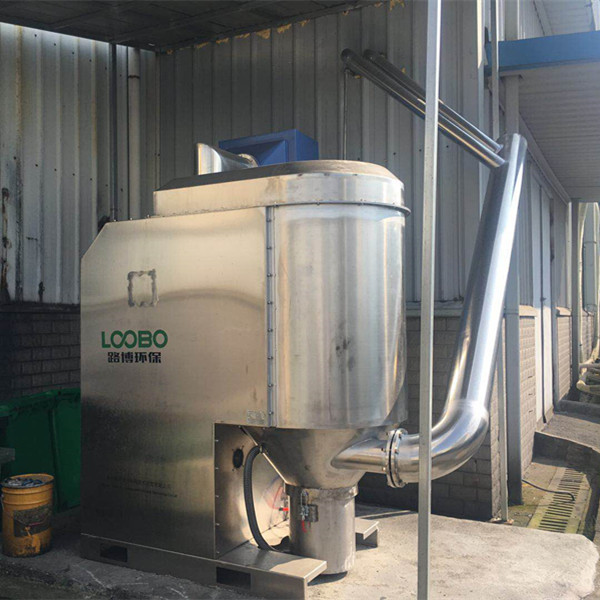

LB-GD central high negative pressure smoke purifier
It uses low noisy high negative pressure fan, drive multi-station to purify the dust.
All in one design makes compact structure and covers a small area. The electric system applies PLC automatic control to easyoperation. It uses imported temperature resistance, wear resistance combination suction hose with smooth wall inside, lowering there sistance.
We can choose high pressure suction mask, general suction environment protection welding gun, grinding wheel to capture smoke and dust base on different station.
Model
Airflow
(m3/h)
Voltage
Power
(kw)
Pressure(pa)
Body size
(mm,L*W1*H)
Inlet dia
(mm)
LB-GD-300
300
380V/50HZ or your need
2.2
23000
1200*720*1250
75
LB-GD-520
520
7.5
40000
1760*720*1520
100
LB-GD-1000
1000
18.5
30000
1950*870*1800
150
LB-GD-2000
2000
25
31000
2000*900*1800
200

LB-JF high vacuum welding Fume extractor

Mobile high negative pressure welding smoke purifier can move freely, better fit to such condition as changing welding workstation.It designs to be 2 levels filtering,1st level is for big sparks,2nd is for tiny dusts, it is chose as 1st one in industrial process, welding smoke, cutting dusts and grinding dusts.smoke and dusts produced by welding, cutting and grinding are captured into purifier in the effect of high negative pressure, those with sparks are separated by fire proof mesh, while another sweltering ones are evenly distributed in purifier by board baffle for better filtering. Bigger particles go down to flue dust retainer in the effect of gravity, tiny floating dusts are floating in the purifier for filtering due to the backset produced by attraction. Tiny dust adsorbed outside of filter cartridge will slide down to flue-dust retainer after gathering and combining in the effect of gravity, clean air will fed back to workshop to give workers a healthy environment.
Type
Airflow(m³/h)
Power
Pressure(pa)
Size(mm)
LB-JF190
190
1.5KW
23000
550*550*1110
LB-JF245S
245
3.0KW
32000
620*600*1180
LB-JF500
500
5.5KW
32000
750*700*1280
Type
LB-JF high nagative bag fume collector
Power
3.0KW
Airflow
290m³/h
bag numers
12 pieces
Clean
auto cleaning
Size
1170*1370*700mm
LB-XCY ALL in ONE DUST COLLECTOR for Robot Welding Station
Robot welding station fume collection by dust collector and pipe system.
The airflow of dust collector caculate by the size of welding station and numbers of robots
The pipe material has PP, PVC, galvanized tube ,stainless steel and so on.
Cases:
LB-XZ welding fume collector
Back ground:
Due to the advantages of light weight, low cost, stable quality, short production cycle, high efficiency and fast market response,welding structure has been increasingly applied.With the continuous expansion of welding production scale and the largeconsumption of welding materials, welding occupational disease has become an undeniable serious problem.
Introduce for the equipment:
Welding smoke purifier, also known as metal welding purification equipment, also known as welding smoke purifier.Main products are cutting platform purifier, metal welding polishing work room, polished metal welding workbench, clean bench, split type welding smoke purifier, central welding smoke purifier series purification equipment, such as portable welding is for mechanical processing factory, car assembly plant, repair shops and relevant industry welding operations produce smoke, dust, oil mist handles designed light efficient filter.Mobile welding fume purifier is especially suitable for arc welding, CARBON dioxide shielded welding, MAG welding, carbon arc air gouging welding, gas melting cutting, special welding and so on.
Working principles:
Under the effect of fan, welding smoke are captured into portable welding fume extractor via extraction arm.First, it will go
through the first fire proof mesh in the air inlet of the smoke purifier, which will separate and intercept big particles and
spark produced by grinding. Then the smoke will go through filtering fender who will intercept the particles and the left spark further, smoke and dusts after filtering will go into the filter cartridge(It uses imported coated polyester material, the
separation rate can be up to 99.9%). Last the clean air will be fed back to the workshop .
Advantages:
1 welding smoke purifier purifies the main engine: this product adopts seamless mold production to ensure the sealing of the main
engine and good noise control
2 filter element: polyester coated fiber filter tube, with low dust adhesion, convenient ash cleaning, good ventilation
efficiency, improve the filtration area
3.Choose specialized turbine and imported brand motor, apply anti-overloaded circuit to protect the motor from burning out, high
security and stable working performance.
Pulsing back-flushing automatic dust -removal system and manual cleaning type for your choice.
4.The structure of extraction arm is steel hood, aluminum alloy frame and resistance high temperature PP pipe. The arm can be used
in a 360-degree radius,convenient and flexible.
5.There are 3 protection measures in purifier for fire risk and large slag to make the purifier live longer and more secure.
e
Cases:
Specification
Type
Power(KW)
Airflow(m3/h)
Voltage
Body size(mm)
Cleaning system
LB-XZ1500
1.5
1500
customer requested
650*550*1250
Manual
LB-XZ2400
2.2
2400
customer requested
650*550*1250
Manual
LB-XZ3600
3.0
3600
customer requested
650*550*1250
Manual
LB-XZ2400SD
2.2
2400
customer requested
650*550*1250
Auto cleaning
LB-XZ1500D
1.5
1500
customer requested
650*670*1250
Auto cleaning
LB-JK1200 lowest price welding fume collector
Email:lb043006@loobo.cn
Whatsapp:+86 15953214653
Type
LB-JK1200
Airflow:
1200m³/h
Power:
1.1KW
Voltage
220V/50HZ
Size:
500*500*1100mm
Arms
2.5m
LB-JZ2400S double arms welding smoke extractor
Type
LB-JZ2400S
Airflow
2400m³/h
Power
2.2KW
Voltage
415V/220V/380V/250V
Size
650*550*1250mm
Arms
2.5m*2pieces
Packing & Delivery
Wooden packgaing
Delivery by sea or air
