Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock
Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock
Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock
Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock
Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock
Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock
Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock
Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock

Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock

FOB Reference Price: Get Latest Price
≥1 Pieces
US $36.8
≥50 Pieces
US $35.5
≥100 Pieces
US $34.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Lock size:
265Lx72Wx40H(mm)
Plate:
185Lx60Wx13H(mm)
Holding Force:
500kg(1200Lbs)
Voltage:
DC12V or DC24V (adjustable)
Current Draw:
12V/420mA 24V/210mA
Signal Output:
Dry Contact, Max Rating of Contact Current 3A
Surface Temp:
≤20°C
Operating Temp:
-10°C ~ 55°C (14°F~131°F)
Suitable Humidity:
0~90%(non-condensing)

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
S4A
EL-1200ST:
Single door 500KG Magnetic lock
Lock size:
265Lx72Wx40H(mm)
Plate:
185Lx60Wx13H(mm)
Holding Force:
500kg(1200Lbs)
Voltage:
DC12V or DC24V (adjustable)
Current Draw:
12V/420mA 24V/210mA
Signal Output:
Dry Contact, Max Rating of Contact Current 3A
Surface Temp:
≤20°C
Operating Temp:
-10°C ~ 55°C (14°F~131°F)
Suitable Humidity:
0~90%(non-condensing)

Single door 500KG Magnetic lock built in LED and door sensor and time delay for electro magnetic lock

Product Description

What is Electromagnetic Lock?

Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.

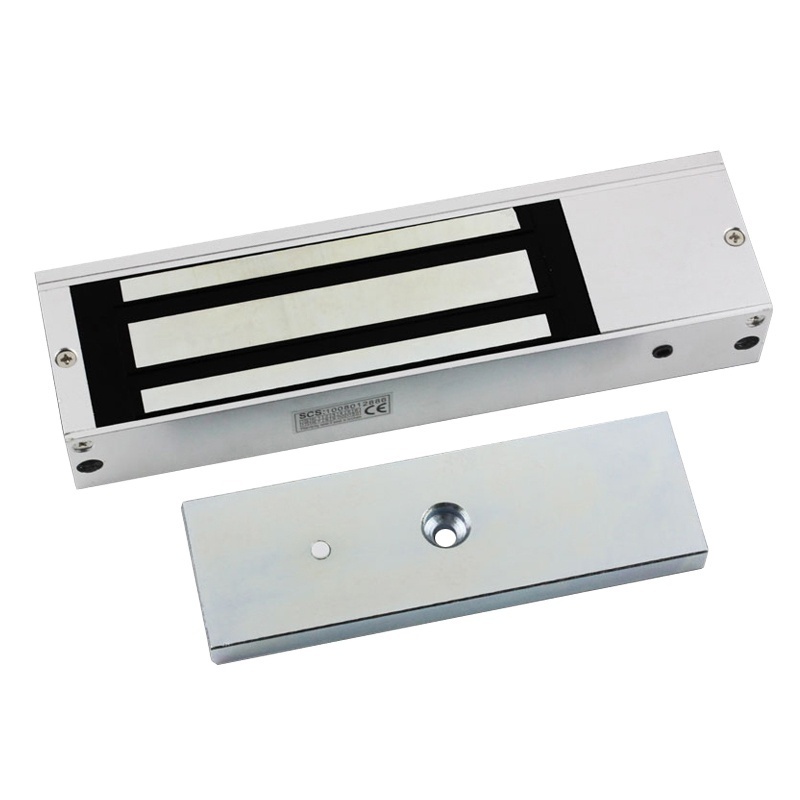

EL-1200ST Single Door Electric Magnetic Lock

Built-in LED, door sensor, and time delay

Specification

EL-1200

Without indicator lights

EL-1200S

With LED (Red only)

EL-1200SD

Built-in LED and door sensor

EL-1200ST

Built-in LED, door sensor, and time delay

EL-1200SZ

LED, door sensor, and Buzzer

Lock size

265Lx72Wx40H(mm)

Plate

185Lx60Wx13H(mm)

Holding Force

500kg(1200Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/420mA 24V/210mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10°C ~ 55°C (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

4.5kg
