Quick Details
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
1100mm*600mm*1210mm
-
Weight:
-
255 kg
-
Inverter:
-
7.5kw
-
Rotating speed:
-
300-1800rpm
-
Grinding discs:
-
12
-
Extra weight ::
-
2*25kgs
-
Water tank:
-
70L
-
Application:
-
Concrete Floor Grinder
-
Motor:
-
Siemens
-
Gear Box:
-
Aluminum Alloy Gearbox
-
Night Light::
-
LED light as option
-
Type:
-
Walk Hand
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Formac
-
Voltage:
-
220~240V/380~440V
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
1100mm*600mm*1210mm
-
Weight:
-
255 kg
-
Inverter:
-
7.5kw
-
Rotating speed:
-
300-1800rpm
-
Grinding discs:
-
12
-
Extra weight ::
-
2*25kgs
-
Water tank:
-
70L
-
Application:
-
Concrete Floor Grinder
-
Motor:
-
Siemens
-
Gear Box:
-
Aluminum Alloy Gearbox
-
Night Light::
-
LED light as option
-
Type:
-
Walk Hand
NOTE:

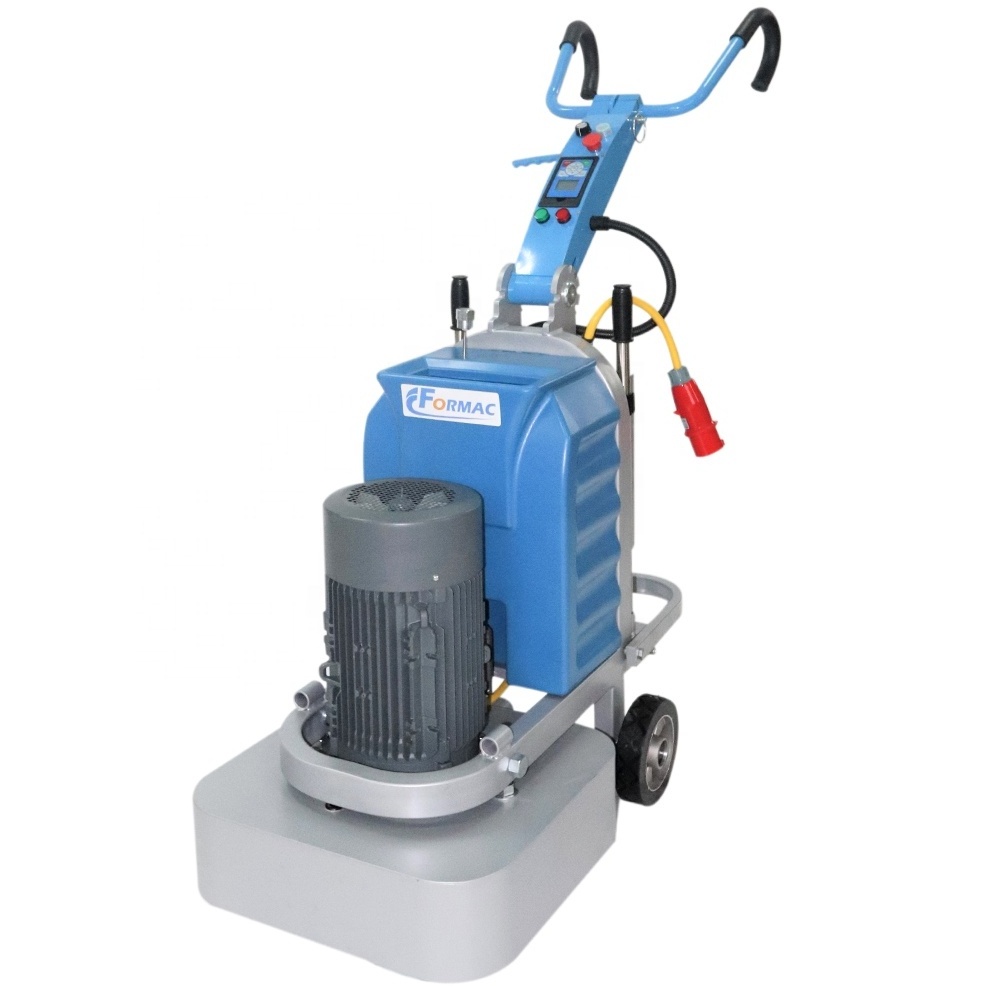

Formac Factory Direct Supply Floor Polishing Machine Epoxy Terrazzo Concrete Floor Grinder Concrete Grinding Machine
-- With a 500mm working width head, it's popular size, especially for who need a medium, durable machine, but it can
reach the edge and corner maximum.
-- 4 gear driven head with 12 blades cross rotating, no trace leave on the floor.
-- Our multipurpose floor grinder can be used in floor preparation, floor grinding and polishing wet and dry.
-- It also can remove the old tough coatings like adhesive, screed, epoxy and paint.
-- Collapsible design for easier transport.
-- Quick-change System with removable Velcro attachments.
-- With inverter, rotating speed is available.
-- Formac floor grinders' rotating head plates adapt a best rubber coupler for good work result and long lifetime.
-- Dust hole is designed to connect the dust collector to avoid dust pollution
-- Industrial vacuum cleaner can be connected to get dust-free grinding, reducing dust and create a clean and healthy
construction environment.
MODEL
|
FFG-740
|
FFG-700
|
FFG-660
|
Voltage
|
380v,three phase
|
380v,three phase
|
380v,three phase
|
Motor
|
Simens
|
Simens
|
Simens
|
Frequency converter
|
18
|
15
|
15
|
Power output kw
|
15
|
11
|
11
|
Working width mm
|
740
|
700
|
660
|
Disc rotate speed rpm
|
0-1800
|
0-1800
|
0-1800
|
Disc quantity pcs
|
12
|
12
|
12
|
Water tank volume L
|
80
|
80
|
80
|
Weight kg
|
352
|
335
|
325
|
MODEL
|
FFG-640
|
FFG-580
|
FFG-500
|
Voltage
|
380v,three phase
220v,Single phase
|
380v,three phase
220v,Single phase
|
380v,three phase
220v,Single phase
|
Motor
|
Siemens
|
Siemens
|
Siemens
|
Frequency converter
|
11
|
7.5
|
7.5
|
Power output kw
|
7.5
|
7.5
|
7.5
|
Working width mm
|
640
|
600
|
500
|
Disc rotate speed rpm
|
0-1800
|
0-1800
|
0-1800
|
Disc quantity pcs
|
12
|
12
|
12
|
Water tank volume L
|
68
|
68
|
68
|
Weight kg
|
280
|
255
|
225
|
