Quick Details
-
Model Number:
-
FYSP-G-30.5-B
-
Brand Name:
-
LD
-
Item name:
-
composite lpg cylinders
-
Working Pressure:
-
20bar
-
Hyd Test Pressure:
-
30bar
-
Wall Thickness:
-
1mm
-
material:
-
HDPE and glass fiber
-
Height:
-
680mm
-
Diameter:
-
321mm
-
Package:
-
plastic bag and pearl cotton or pallets or customized package
-
Thread:
-
25E/m26x1.5 or 3/4-14NGT
-
Application:
-
home cooking, industry, forklifts, barbecues, lights, heating,ships
Quick Details
-
Material:
-
Composite Material
-
Use:
-
LPG
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
FYSP-G-30.5-B
-
Brand Name:
-
LD
-
Item name:
-
composite lpg cylinders
-
Working Pressure:
-
20bar
-
Hyd Test Pressure:
-
30bar
-
Wall Thickness:
-
1mm
-
material:
-
HDPE and glass fiber
-
Height:
-
680mm
-
Diameter:
-
321mm
-
Package:
-
plastic bag and pearl cotton or pallets or customized package
-
Thread:
-
25E/m26x1.5 or 3/4-14NGT
-
Application:
-
home cooking, industry, forklifts, barbecues, lights, heating,ships

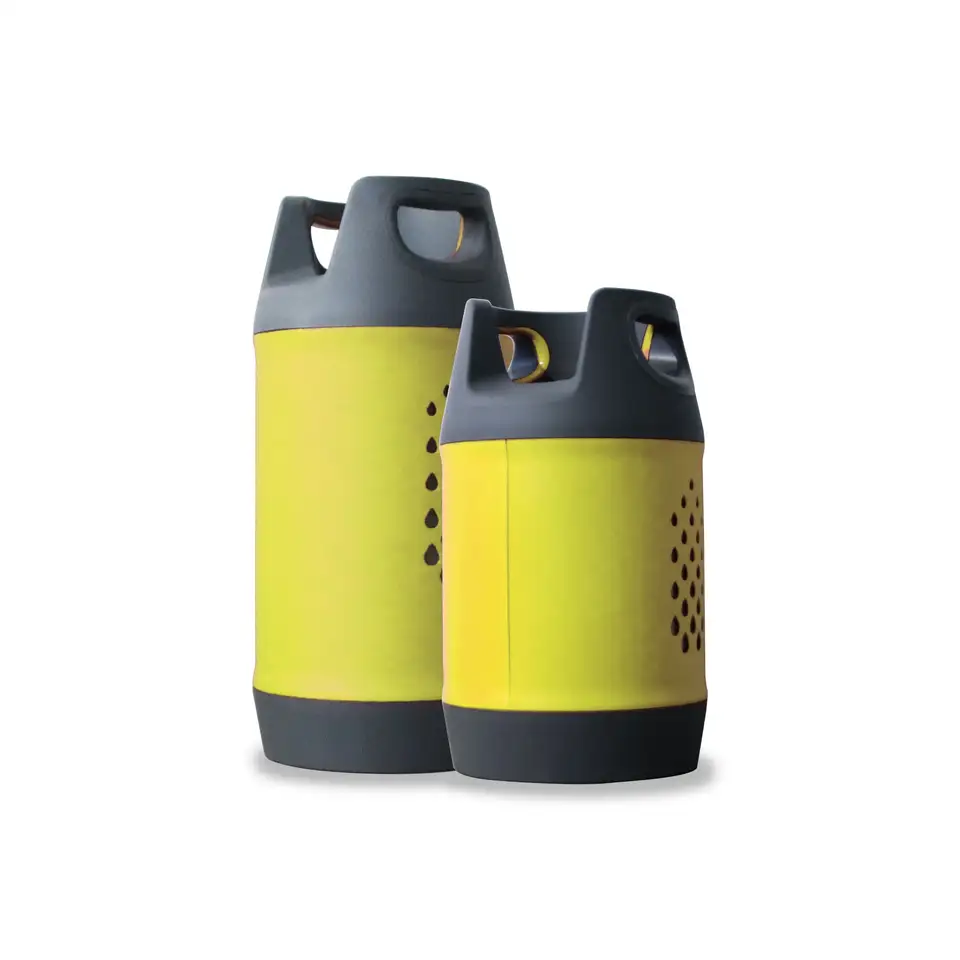

LPG Composite Cylinder
|
DESCRIPTION
|
PARAMETERS
|
|
Filling Propane Weight(LPG/KG)
|
12.5KG
|
|
Cylinder Empty Tare Weight(KG)
|
7.5KG
|
|
Water Capacity(L)
|
30.5L
|
|
Height(mm)
|
680mm
|
|
Diameter(mm)
|
307mm
|
|
Working Pressure(bar)
|
20bar
|
|
Test Pressure(bar)
|
30bar
|
|
Min Hydraulic Burst Pressure(bar)
|
72bar
|
-Appearance and retentivity
composite lpg cylinder
The Composite LPG cylinders are produced by high anti-corrosion material, which will not loose due to rust. The appearance color will always maintain fresh
composite lpg cylinder
composite lpg cylinder
-Visible liquid level
composite lpg cylinder
Due to the cylinder body is semitransparent, the users can easily supervise the LPG content inside from the visible liquid level
composite lpg cylinder
composite lpg cylinder
-Light and portable
composite lpg cylinder
The weight of composite LPG cylinder is only 40% of the traditional metal cylinder, and the ergonomically designed soft handle makes it portable for both adults and children
composite lpg cylinder
-High level safety
composite lpg cylinder
The cylinder liner is made of HDPE, which has high corrosion resistance to LPG, atmosphere and aqueous solution containing sulfur. It will not explose due to the corrosion
composite lpg cylinder
composite lpg cylinder
-Long life and easy inspection
composite lpg cylinder
The first and second periodical inspection of the composite LPG cylinder is 5 years, and the third periodical inspection is 10 years, which greatly extends the service life of the product.
composite lpg cylinder
-Glass fiber
composite lpg cylinder
We choose a kind of special wrapping fiber with good invasion, high gelatinization and no balling-up
composite lpg cylinder
-Epoxy resin
composite lpg cylinder
The epoxy resin we choose has advantages of lower curing temperature, quicker curing speed, longer service life and lower price
composite lpg cylinder
composite lpg cylinder
-HDPE
composite lpg cylinder
High-density Polyethylene, has the advantage of wide range of sources and cheap. It can be used as liner material to revent the gas leakage, also can be used as external wear-resistant material
composite lpg cylinder
|
Cylinder Model and Standard
|
Norminal Working Pressure (bar)
|
Hyd.test Pressure (bar)
|
Design Wall Thickness (mm)
|
Material
|
Outer Diameter (mm)
|
Water Capacity (L)
|
Length (mm)
|
Weight (kg)
|
|
FSYP-G-V EN 12245
ISO119-3
|
20
|
30
|
1.0
|
HDPE
|
321
|
12.5
|
400
|
6.95
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
18.2
|
500
|
7.15
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
24.5
|
570
|
7.35
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
26.2
|
624
|
7.40
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
27.4
|
645
|
7.45
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
30.5
|
680
|
7.50
|
|
|
20
|
30
|
1.0
|
HDPE
|
321
|
34.5
|
764
|
7.67
|
The company was established in 2009 and moved into the Taihu County Economic Development Zone in Anhui Province in 2014, building its own standardized factory covering an area of 46,000 square meters. For more than 10 years, we have focused on R&D and production, with a total global sales volume of 2 million units. The company has 6 cylinder spinning lines, 2 heat treatment and tempering lines, as well as machine processing, painting and winding lines, with an annual production capacity of 360,000 cylinders, and can produce seamless industrial steel cylinders, seamless steel cylinders for CNG vehicles, glass fibre ring-wound cylinders for CNG vehicles, carbon fibre wound cylinders for CNG vehicles, composite wound cylinders for CNG vehicles, seamless steel cylinders for CNG stations, fire-fighting cylinders, LPG Dehejiang cylinders, and LPG cylinders. Fire-fighting cylinders, LPG cylinders, breathing apparatus and other products.
*Q1: Are you manufacturer or trade company?
composite lpg cylinder
*A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “LD”.
composite lpg cylinder
composite lpg cylinder
*Q2: What is your daily production capacity?
composite lpg cylinder
*A2: Our production capacity everyday is 800~1000 units.
composite lpg cylinder
composite lpg cylinder
*Q3: What is your delivery time?
*A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
composite lpg cylinder
*Q4: What certificates do you have?
composite lpg cylinder
*A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
composite lpg cylinder
composite lpg cylinder
*Q5: Do you accept OEM production?
composite lpg cylinder
*A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
composite lpg cylinder
composite lpg cylinder
*Q6: Can you provide samples to us?
composite lpg cylinder
*A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
composite lpg cylinder
*Q7: Can you customize the products?
composite lpg cylinder
*A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
