Name: Log conveyor
150mm belt width, with winch
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1950*900*1560mm
-
Weight:
-
530 KG
-
Power:
-
pto
-
Max. log diameter:
-
38cm(15'')
-
Max.log length:
-
55cm(22'')
-
Saw motor with bearing:
-
36L/min, 4800rpm
-
Chain saw:
-
18inch
-
Cylinder Bore:
-
3.2 - 4 inch
-
Cycle time:
-
7 - 8 second
-
PTO Shaft:
-
6 teeth, 1 3/8"
-
Wedge:
-
4ways(Optional 6 ways)
-
40"HC Container:
-
24pcs
Quick Details
-
Use:
-
log splitting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rima
-
Dimension(L*W*H):
-
1950*900*1560mm
-
Weight:
-
530 KG
-
Power:
-
pto
-
Max. log diameter:
-
38cm(15'')
-
Max.log length:
-
55cm(22'')
-
Saw motor with bearing:
-
36L/min, 4800rpm
-
Chain saw:
-
18inch
-
Cylinder Bore:
-
3.2 - 4 inch
-
Cycle time:
-
7 - 8 second
-
PTO Shaft:
-
6 teeth, 1 3/8"
-
Wedge:
-
4ways(Optional 6 ways)
-
40"HC Container:
-
24pcs
Product Description
Product Application

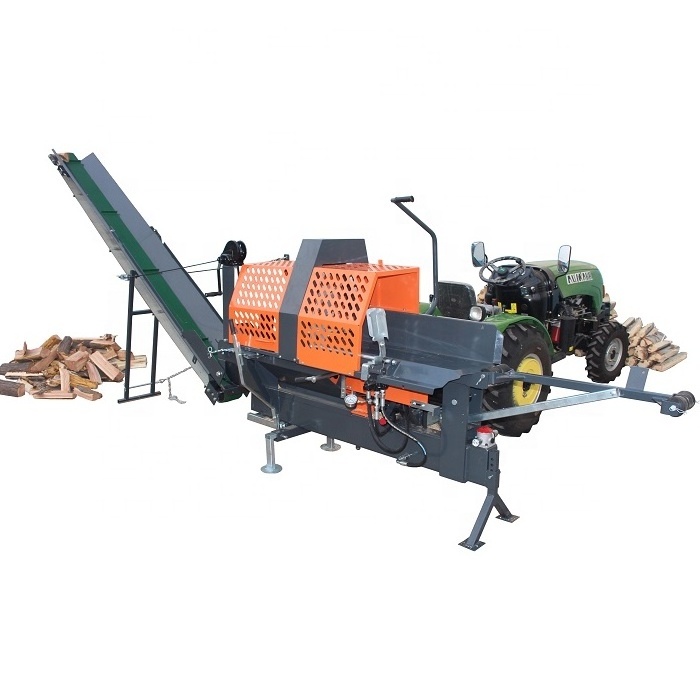

RIMA RM firewood processor is a very efficient and user friendly log splitter that cuts and splits the log in one operation. Splits logs up to 61cm long and 38cm in diameter.
|
PTO Firewood Processor
|
|
|
||
|
Model
|
RM7-12P
|
RM7-20P
|
||
|
Power
|
PTO
|
PTO
|
||
|
Weight
|
350/390kg
|
350/390kg
|
||
|
Max. log diameter
|
38cm(15'')
|
38cm(15'')
|
||
|
Max.log length
|
55cm(22'')
|
55cm(22'')(61cm (24‘’)for Canada and America market)
|
||
|
Saw motor with bearing
|
36L/min, 4800rpm
|
36L/min, 4800rpm
|
||
|
Chain saw
|
18inch (Original STIHL)
|
18inch (Original STIHL)
|
||
|
Cylinder Bore
|
3.2inch
|
4inch
|
||
|
Cycle time
|
7second
|
8second
|
||
|
PTO Shaft
|
6 teeth, 1 3/8"
|
6 teeth, 1 3/8"
|
||
|
Wedge
|
4ways(Optional 6 ways)
|
4ways(Optional 6 ways)
|
||
|
Packing
|
1pc/ iron pallet
|
1pc/ iron pallet
|
||
|
40"HC Container
|
24pcs
|
24pcs
|
||
Main Features
>> New TUV CE certification approved
>> Various models available
>> High-output capacity
>> Efficient, user-friendly and low maintenance
Machine Parts
Machine Parts
Name:
Hydraulic feeding systerm
RM series wood processor optional part. Very easy for installation.
Name: Wedge
Standard: 4-way wedge
Optional: 6-way wedge
For Cutting 38cm diameter logs and up to 61cm in length,
Original STIHL chain saw
18" for RM7-12, RM7-20
